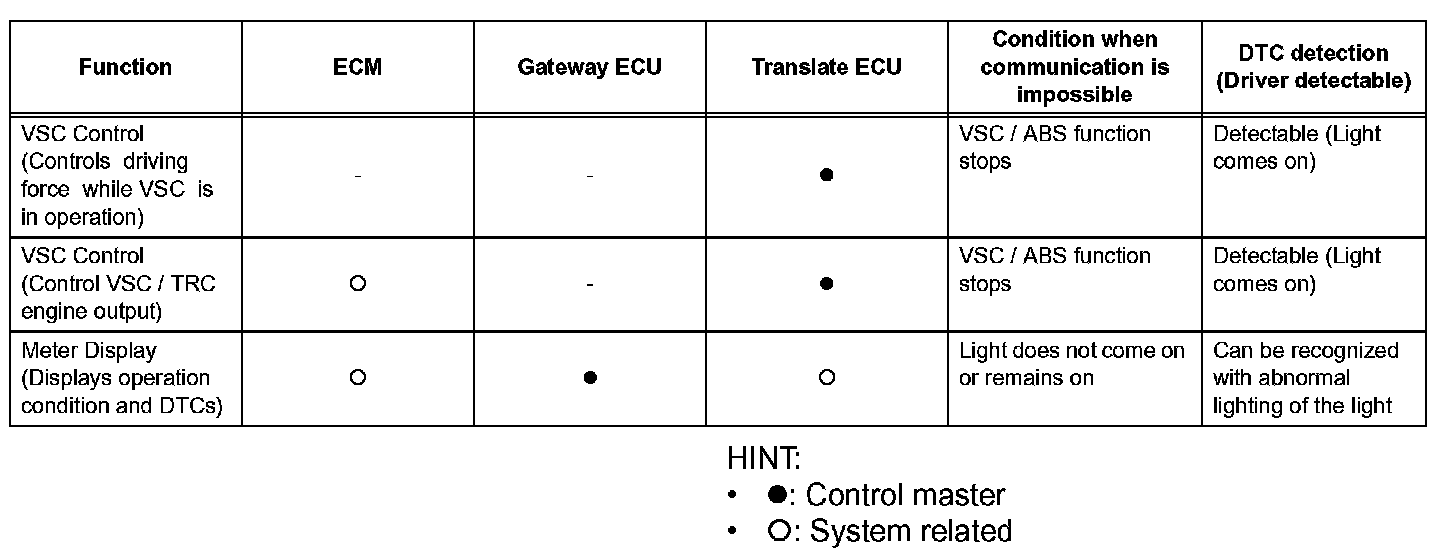

Fail-Safe Chart

FAIL-SAFE CHART

1. FAIL-SAFE FUNCTION

a. When communication fails in any of the CAN bus lines (communication lines) due to a short circuit or other causes, the fail-safe function, which is specified for each system, operates to prevent the system from malfunctioning.
b. The fail-safe function activates on each system when communication is not possible. (For further details, see the information given for each system.)
