Engine Control Part 12

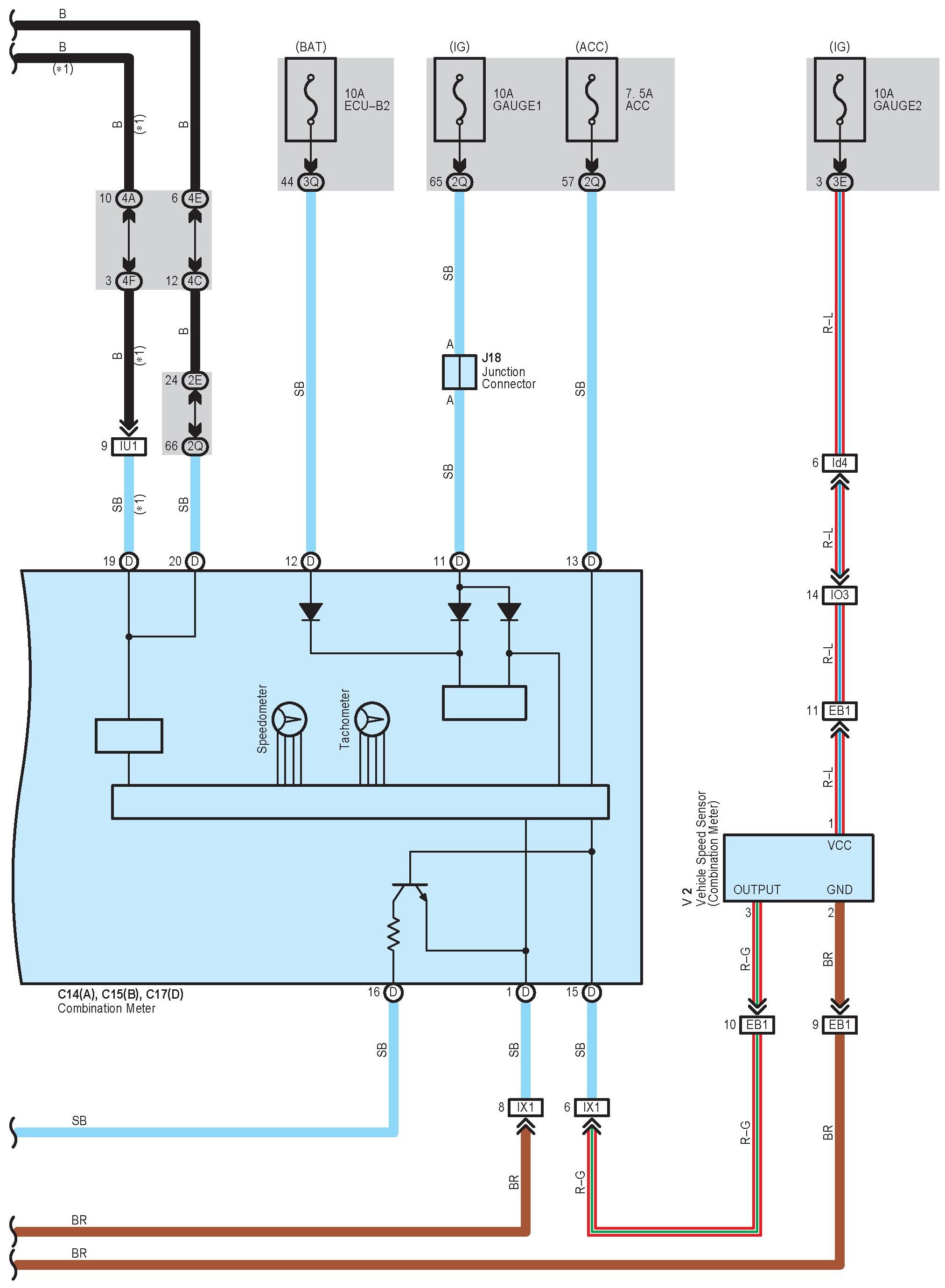

Engine Control Part 12:

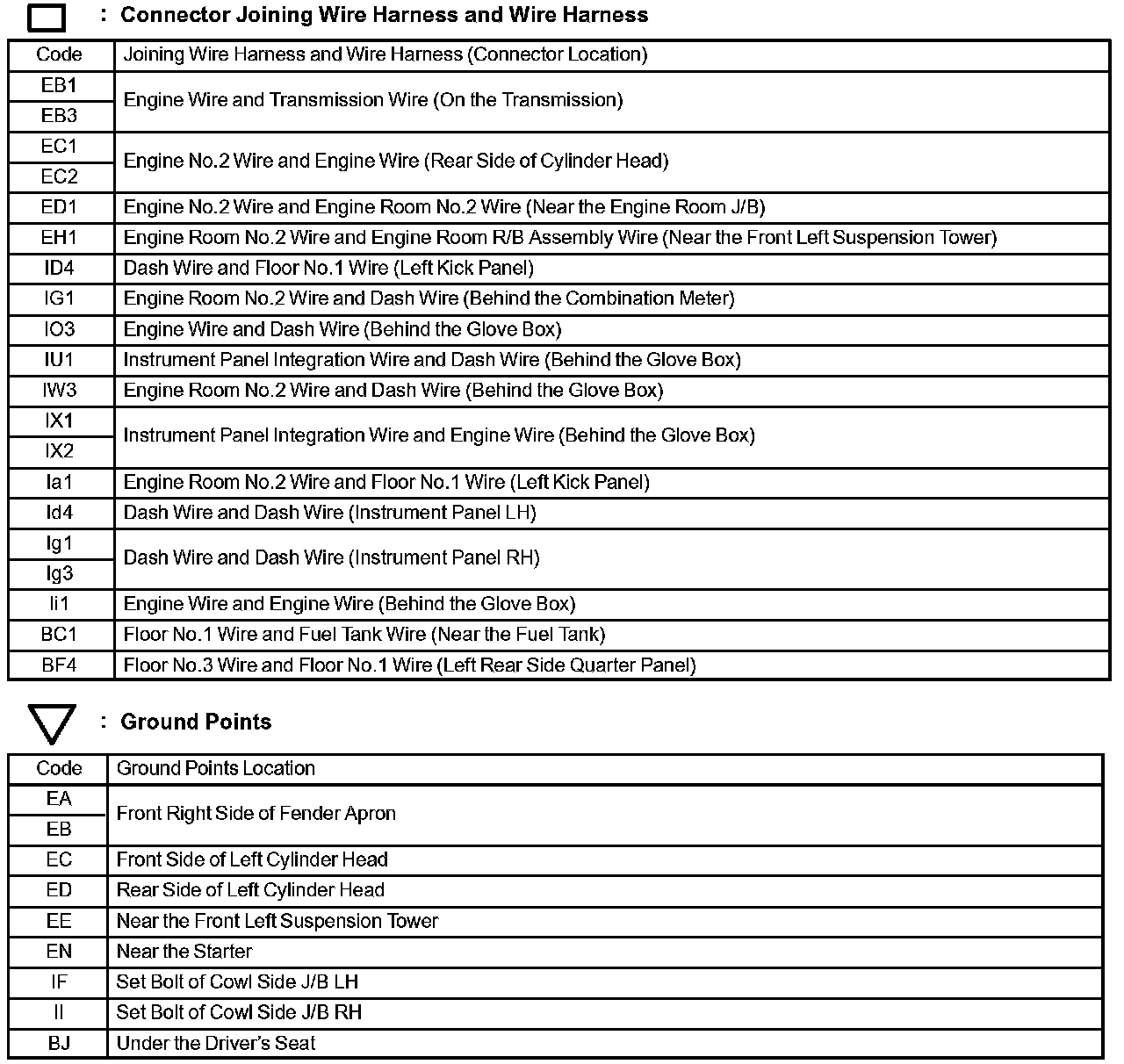

Diagram Legend Part 1:

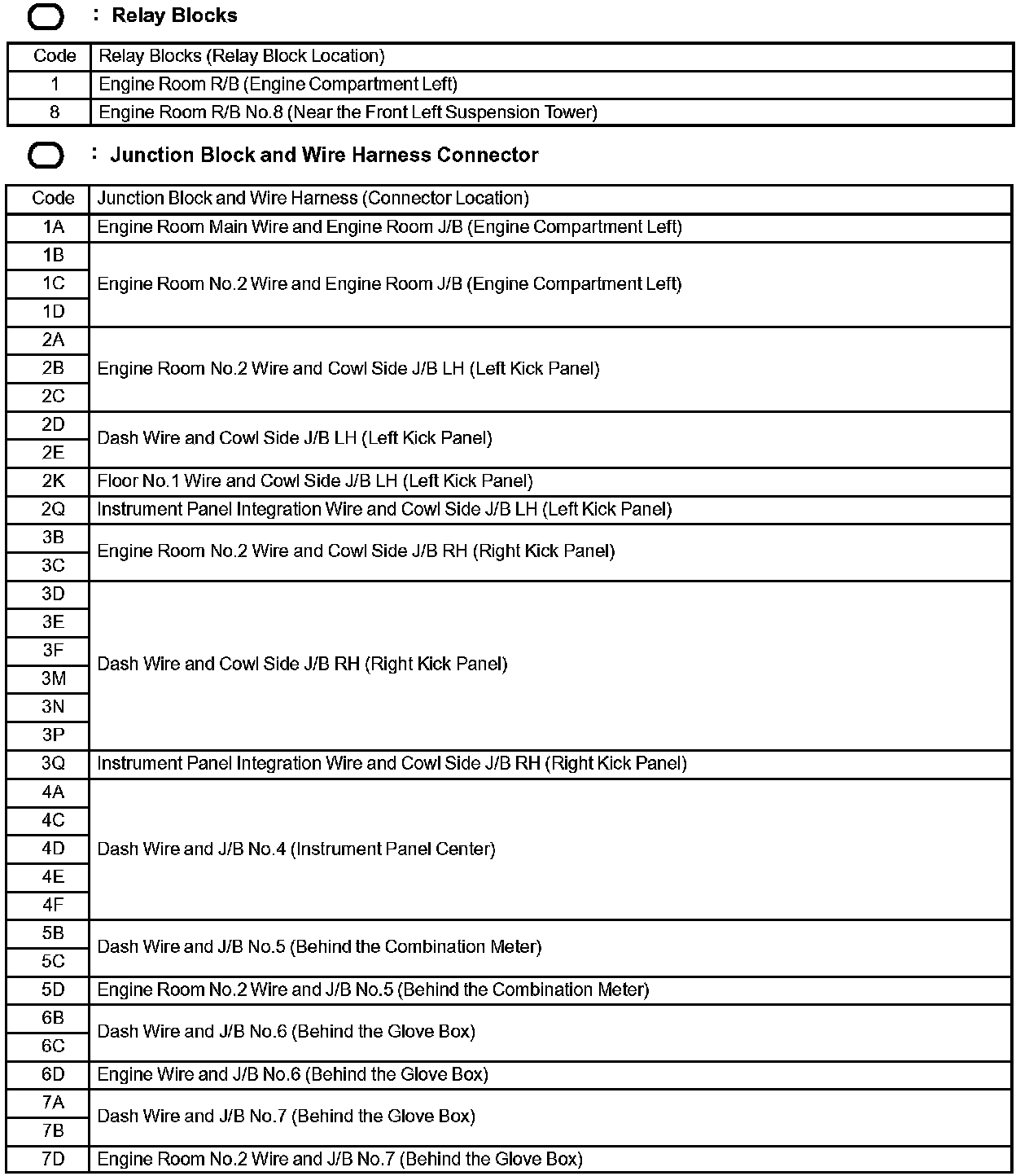

Diagram Legend Part 2:

Previous Diagram Engine Control Part 11

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
