Oil Pan, Engine

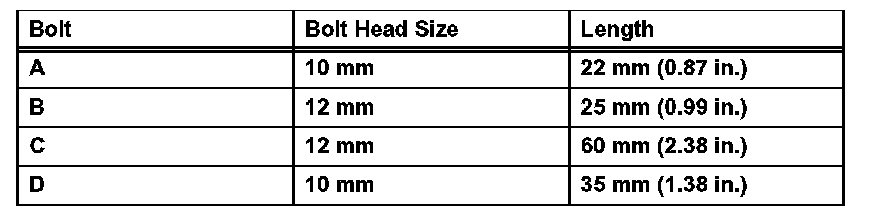

Bolt Length:

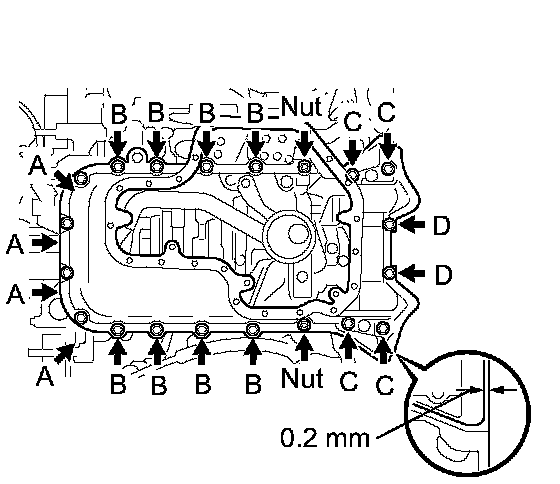

No. 1
Oil Pan Bolts, Stud Bolt & Nuts
Bolts A & D
7.5 Nm (76 kgf-cm, 66 inch lbs.)
Bolts B & C
28 Nm (286 kgf-cm, 21 ft. lbs.)
Nut
28 Nm (286 kgf-cm, 21 ft. lbs.)
Oil Pan Baffle Plate Bolts & Nut
7.5 Nm (76 kgf-cm, 66 inch lbs.)

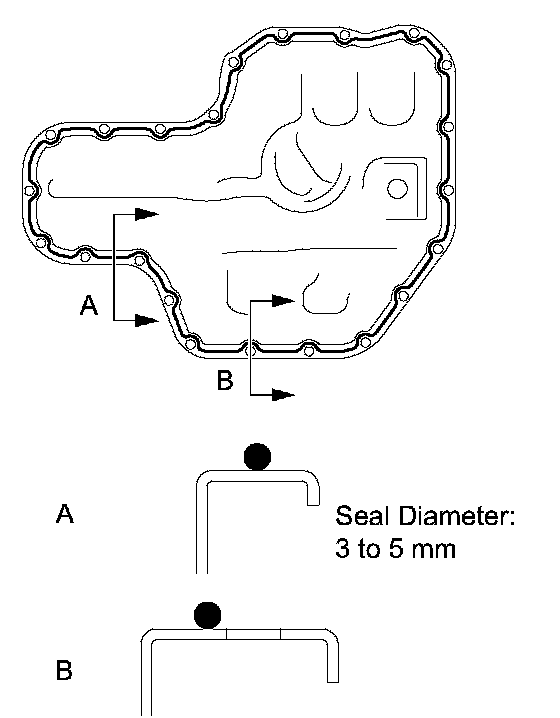

No. 2
Oil Pan Bolts & Nuts
7.5 Nm (76 kgf-cm, 66 inch lbs.)
