Replacement
REPLACEMENT 1.
REPLACE GENERATOR DRIVE END FRAME BEARING
a.

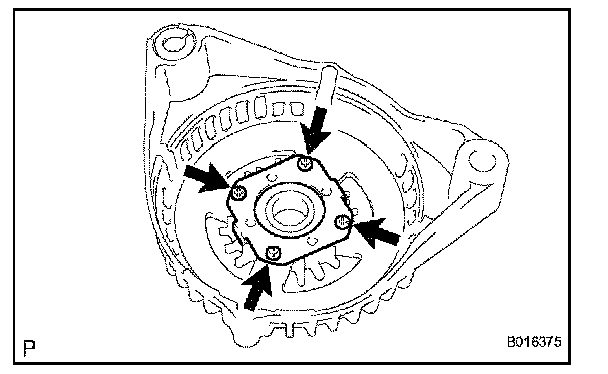

Remove the 4 screws, bearing retainer and bearing.
b.

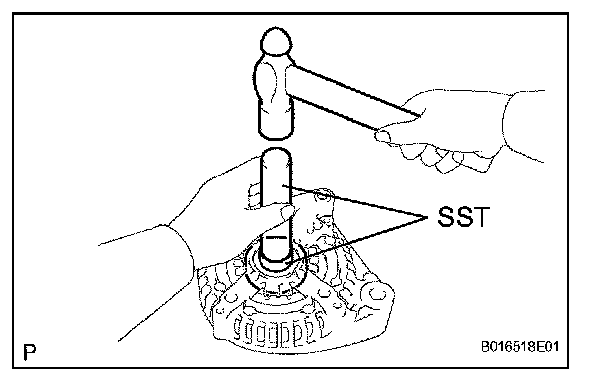

Using SST and a hammer, tap out the bearing.
SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)
c.

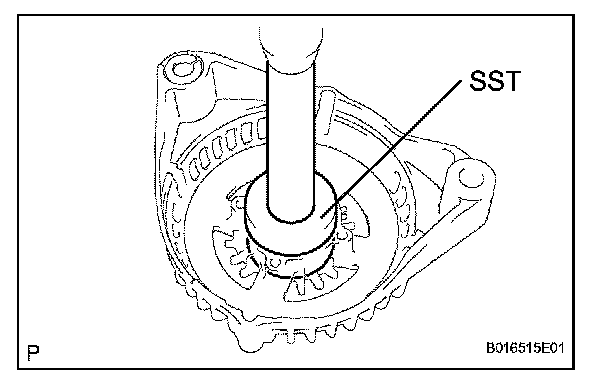

Using SST and a press, press in a new bearing.
SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)
d.
Install the bearing retainer with the 4 screws.
Torque:
2.3 N.m (23 kgf.cm, 20 in.lbf)
