Wireless Door Lock Control System
SYSTEM DESCRIPTION1. WIRELESS DOOR LOCK CONTROL SYSTEM DESCRIPTION
a. This system is a convenient system for locking and unlocking all the doors at a distance. The wireless control system has the following features:
- In this system, the door control receiver performs the code identification process and the multiplex network body ECU operates the door lock control. A serial data link is provided for communication between the door control receiver and the multiplex network body ECU.
- with Power back door:
A key-integrated type transmitter is used. It contains the following 3 switches: the LOCK (PANIC) switch, UNLOCK switch and PWR DOOR (power back door) switch.
- without Power back door:
A key-integrated type transmitter is used. It contains the following 3 switches: the LOCK switch, UNLOCK switch and PANIC switch.
- A LED (Light Emitting Diode) is mounted on the transmitter to indicate if the battery is discharged.

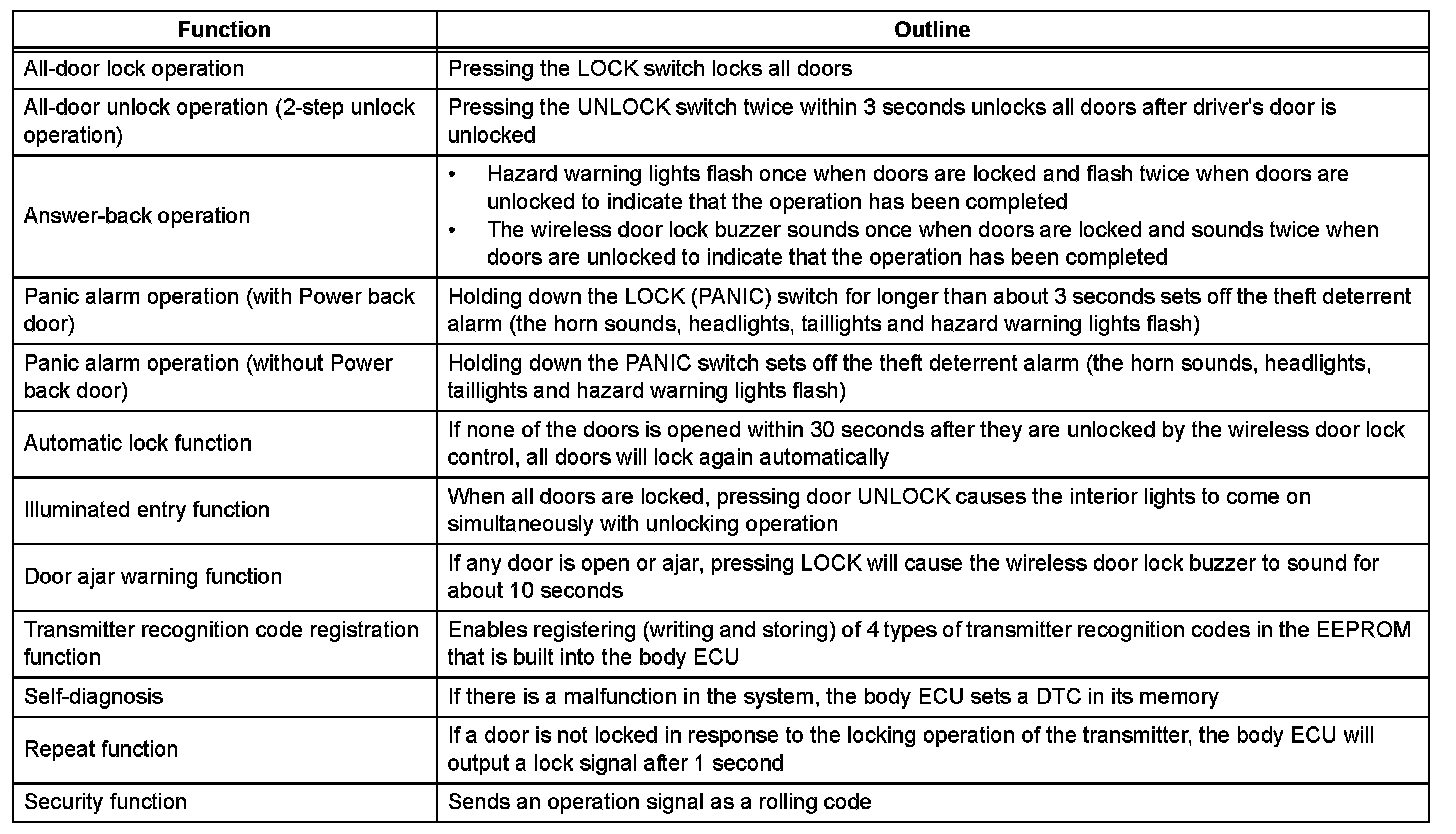

b. The wireless door lock control system has the following functions:
