Sound Signal Circuit Between Video Terminal and Television Display
Sound Signal Circuit between Video Terminal and Television DisplayDESCRIPTION
This is the sound signal circuit from the video (video adapter) terminal to the television display assembly.
Wiring Diagram:

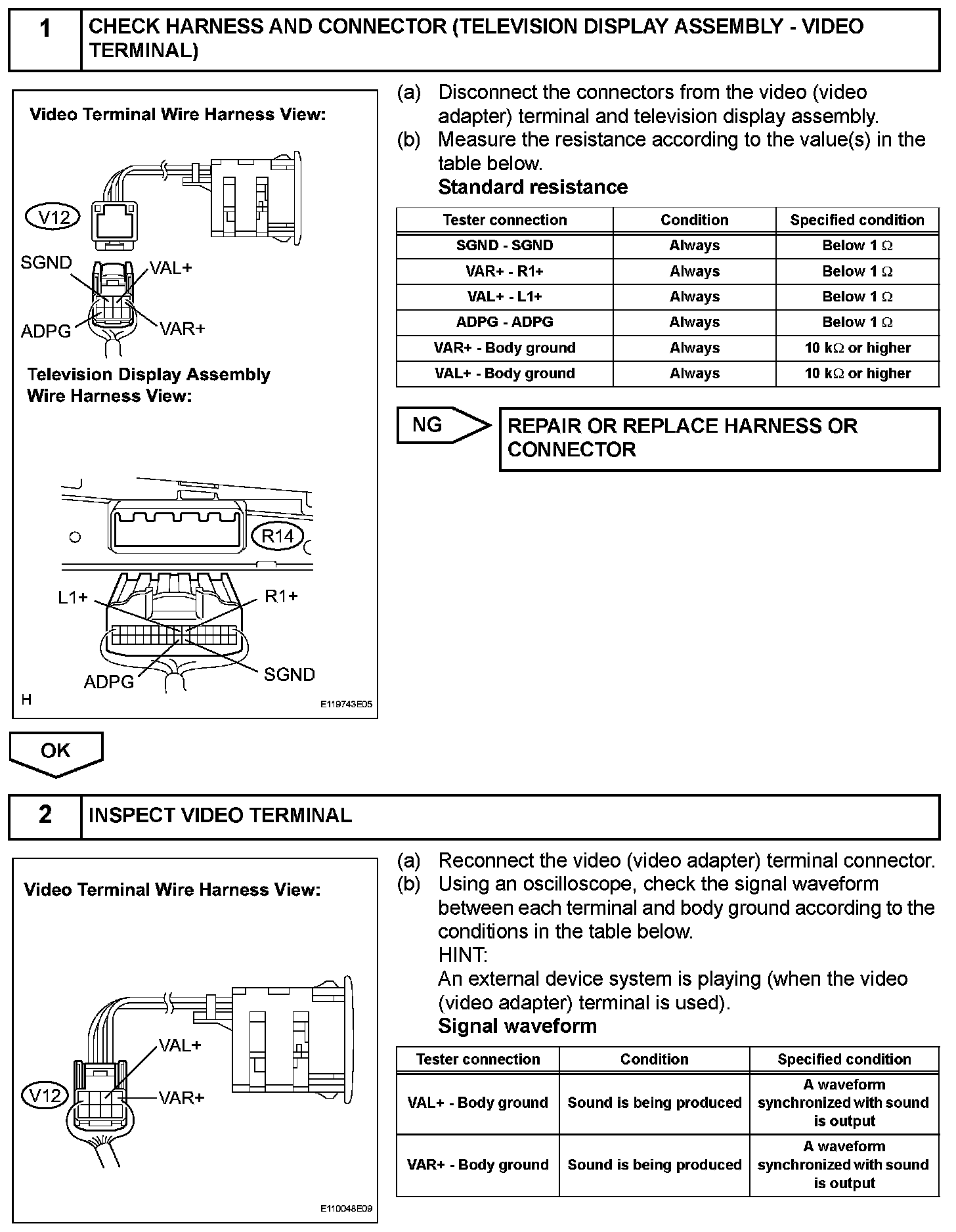

Step 1-2:
Step 2 (Continued):
INSPECTION PROCEDURE
