Body and Frame: Description and Operation
Body Structure1. Low Vibration and Low Noise Body
General
Effective application of vibration damping and noise suppressant materials reduce engine and road noise.

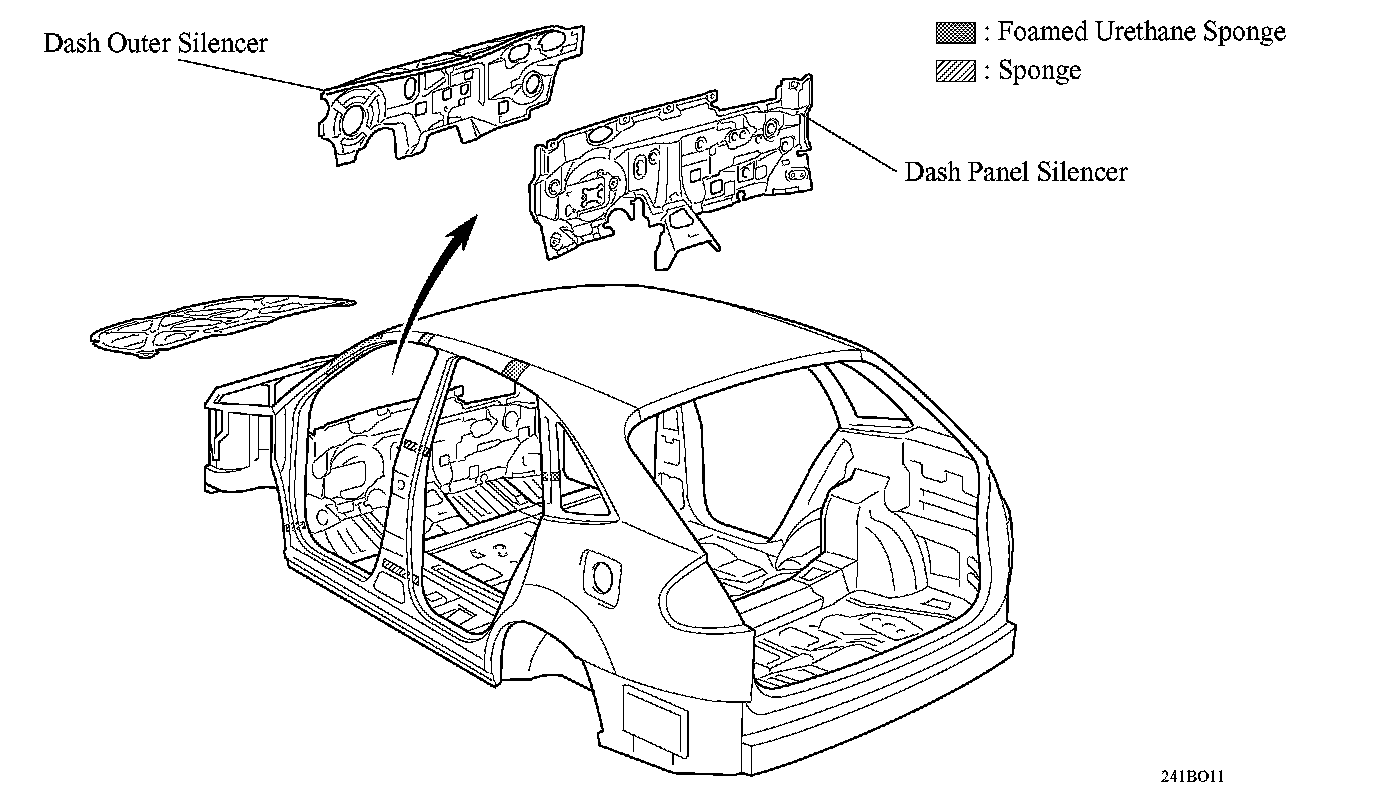

Sound Absorbing and Vibration Damping Materials
^ The dash outer silencer has been changed to a high-density type felt material.
^ 2-layered felt sound insulating material has been adopted for the large-size dash panel silencer.
^ Noise absorbing material has been adopted for the tunnel area of the dash panel.
^ Noise absorbing material has been adopted for the toe board area of the floor carpet.
Reducing Wind Noise
The material of the film placed between the windshield glasslayers has been changed to a high-performance noise insulating type to reduce wind noise.
