Wireless Door Lock Control System

PROBLEM SYMPTOMS TABLE

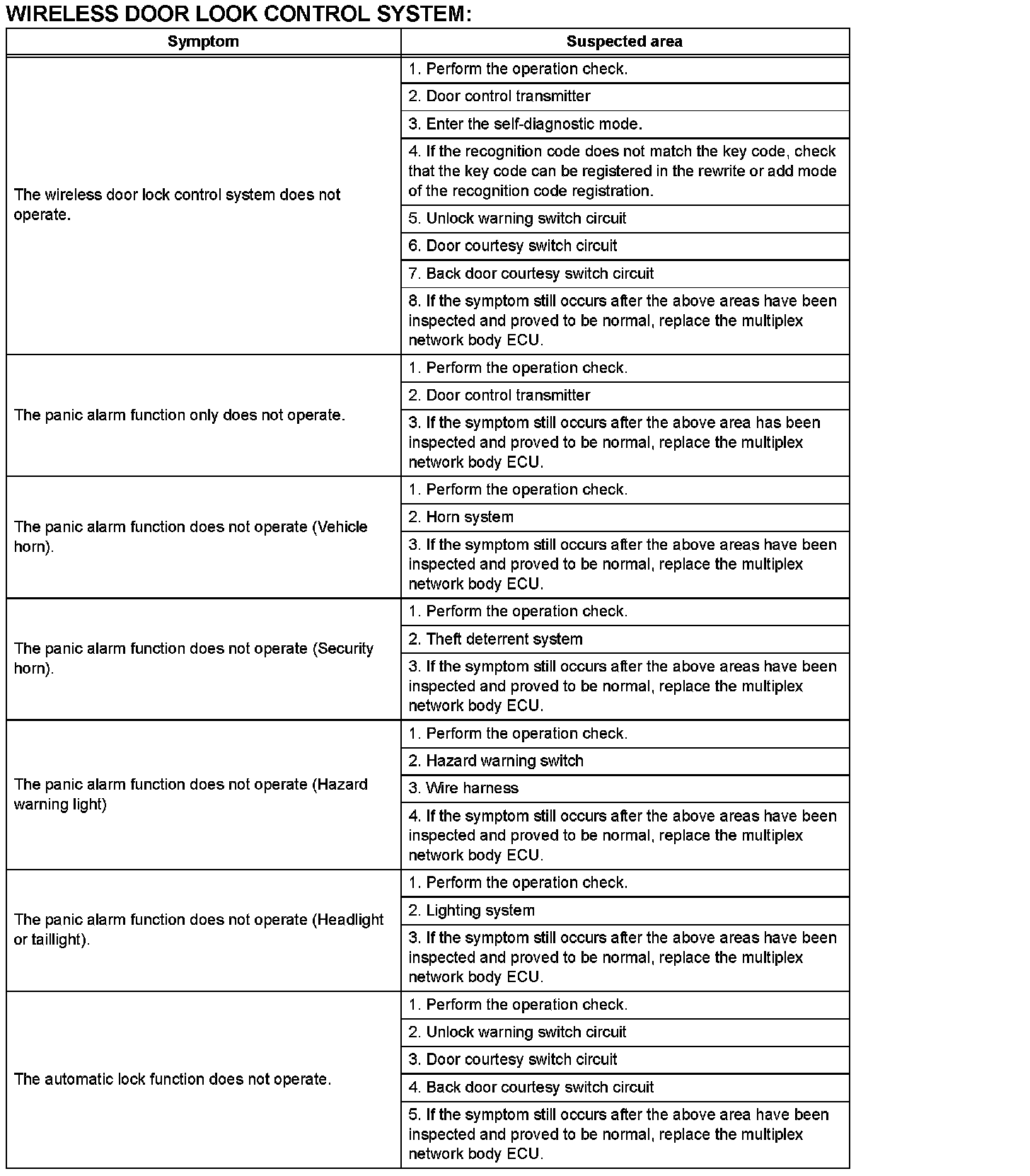

Problem Symptoms Table (Part 1):

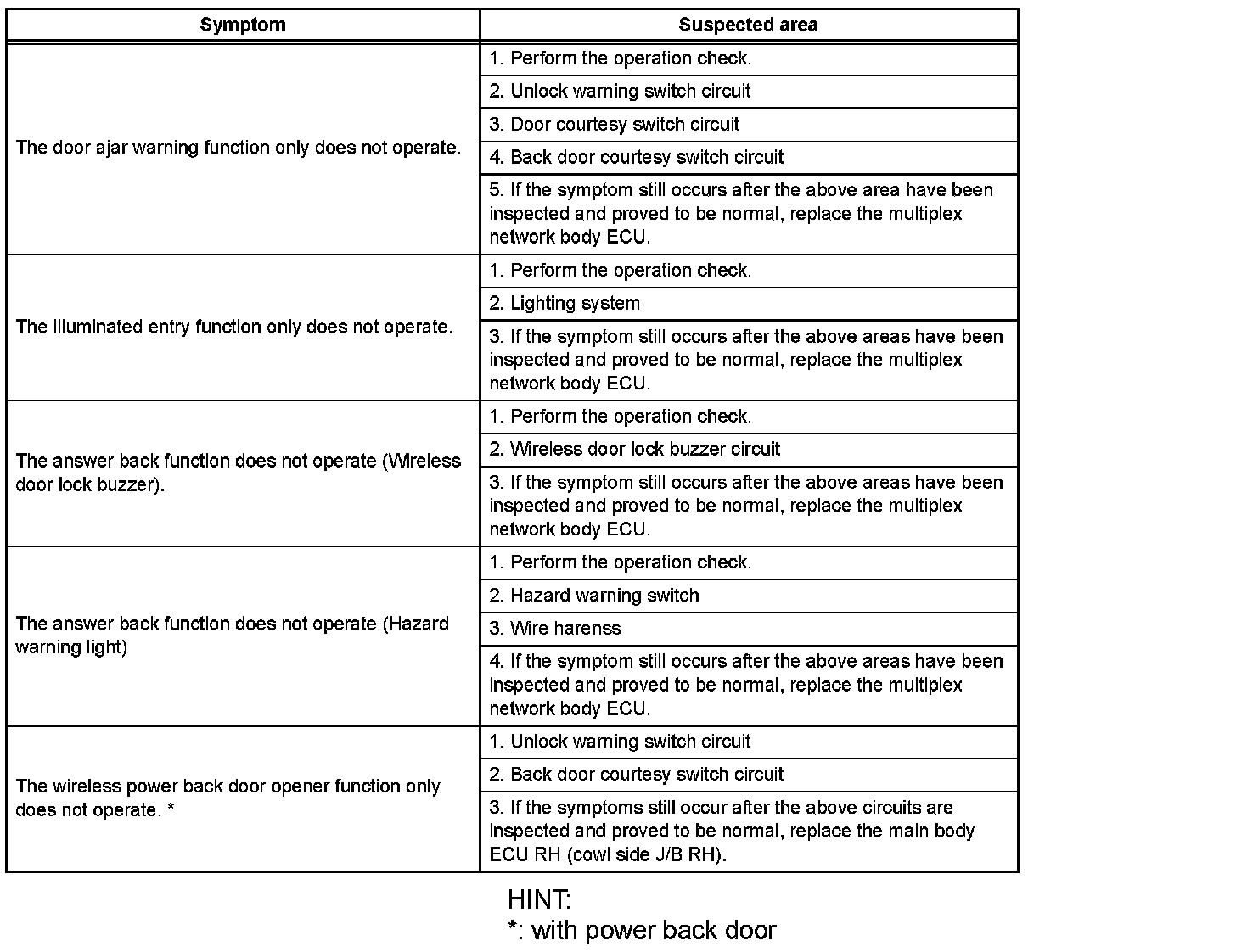

Problem Symptoms Table (Part 2):

If a normal system code is displayed during the DTC check, but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.

HINT: Inspect each malfunction circuit in numerical order for its corresponding symptom.
