Component Inspection

INSPECTION

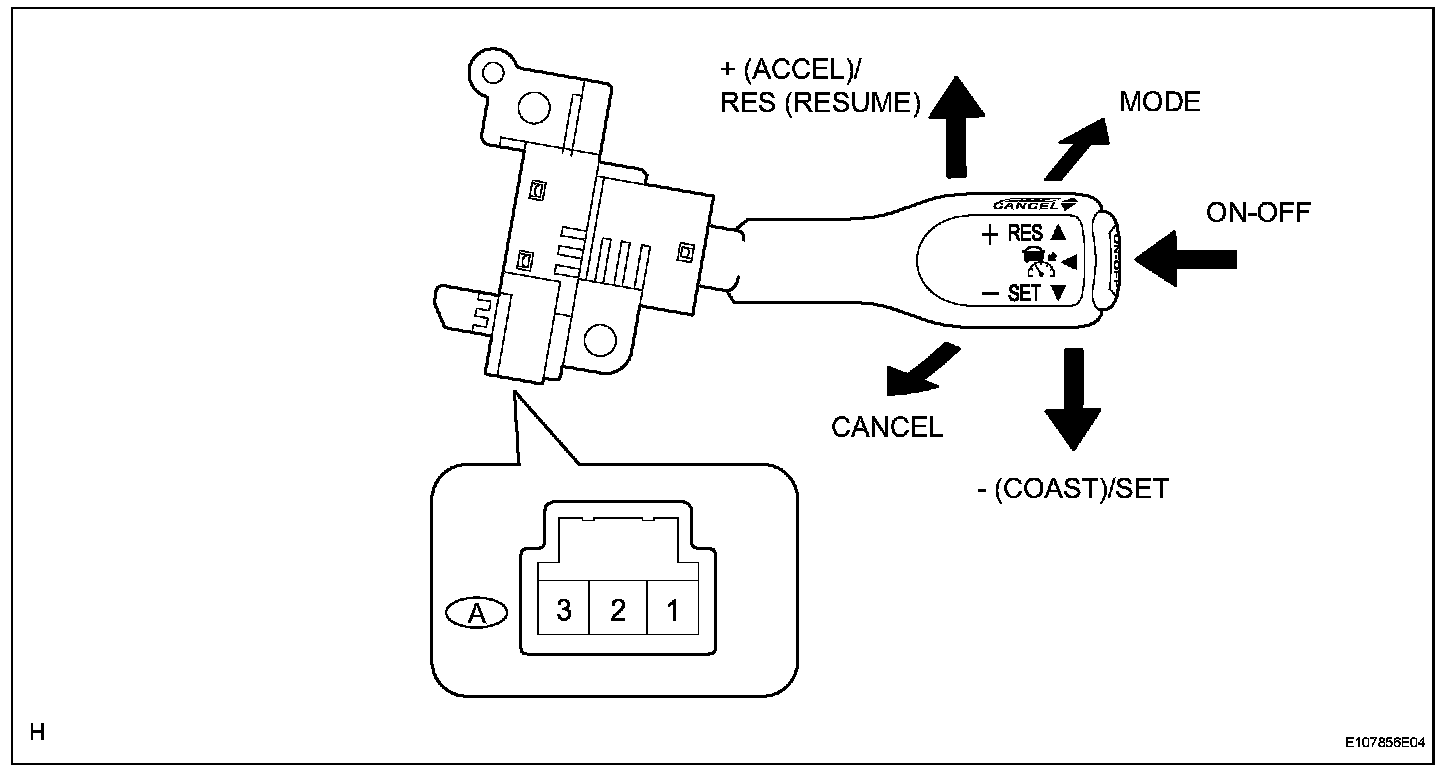

1. INSPECT CRUISE CONTROL MAIN SWITCH




a. Remove the cruise control main switch

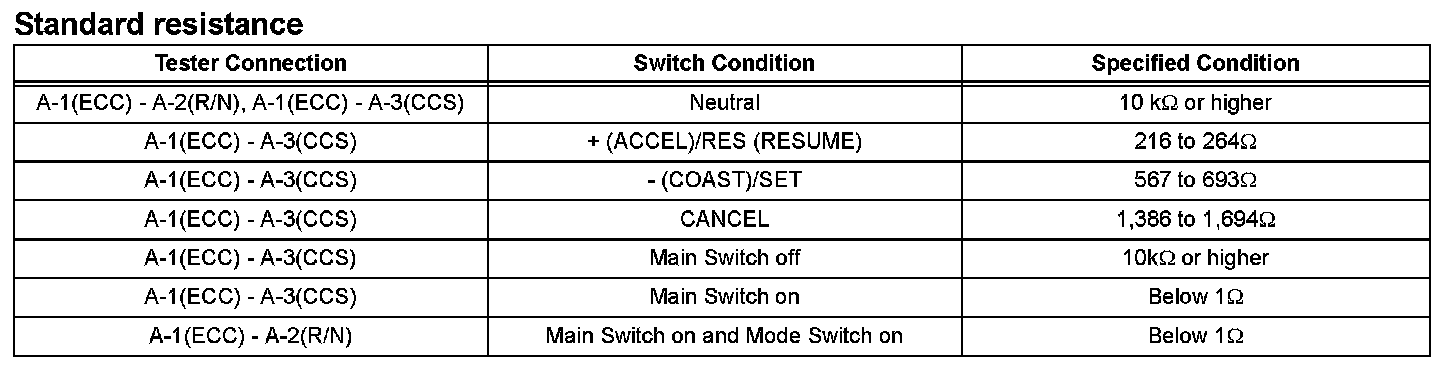

b. Measure the resistance according to the value(s) in the table.
