Center Cluster Integration Switch

Center Cluster Integration Switch:

Center Cluster Integration Switch

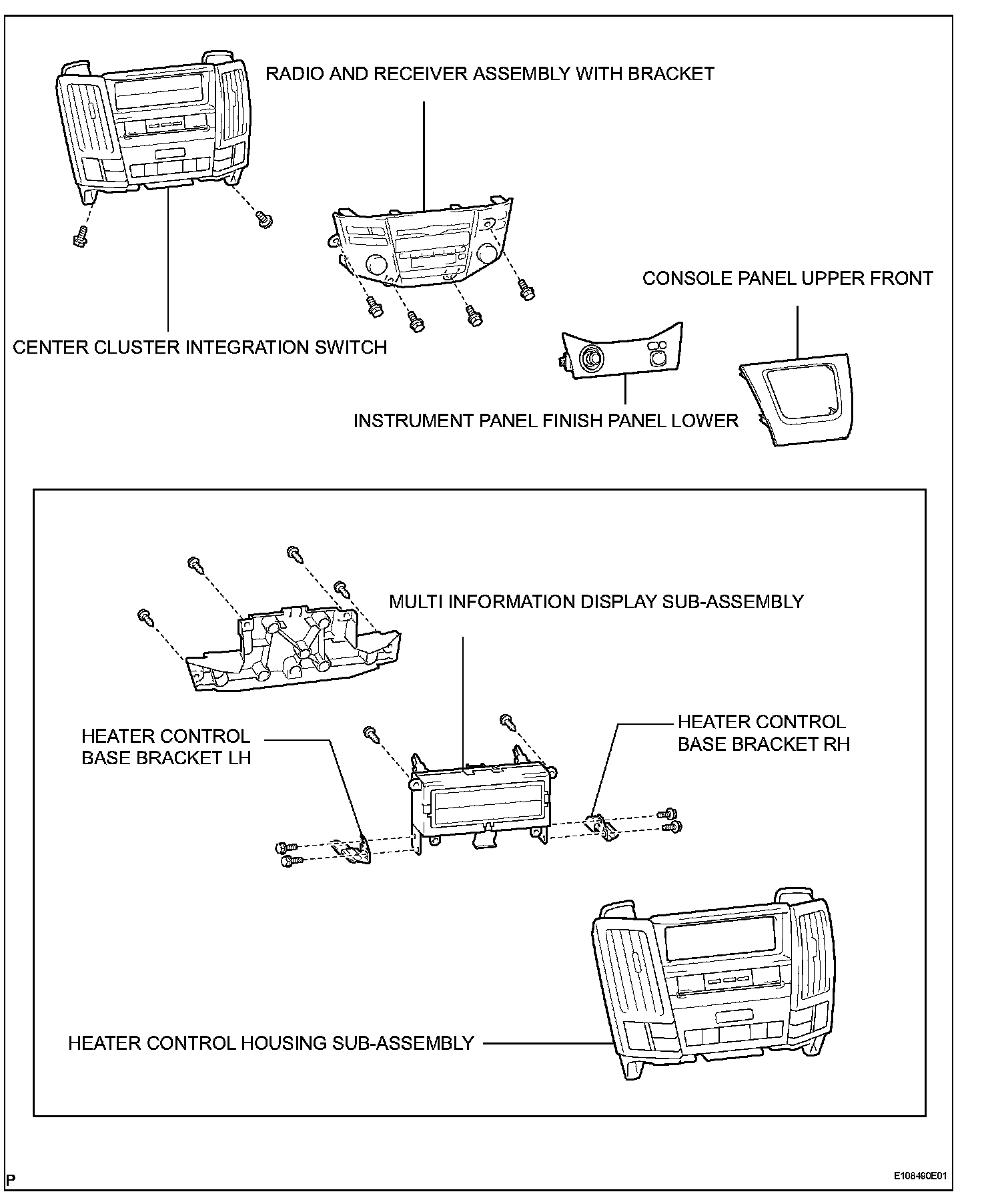

REMOVAL

1. REMOVE CONSOLE PANEL UPPER FRONT
2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
3. REMOVE RADIO AND RECEIVER ASSEMBLY WITH BRACKET

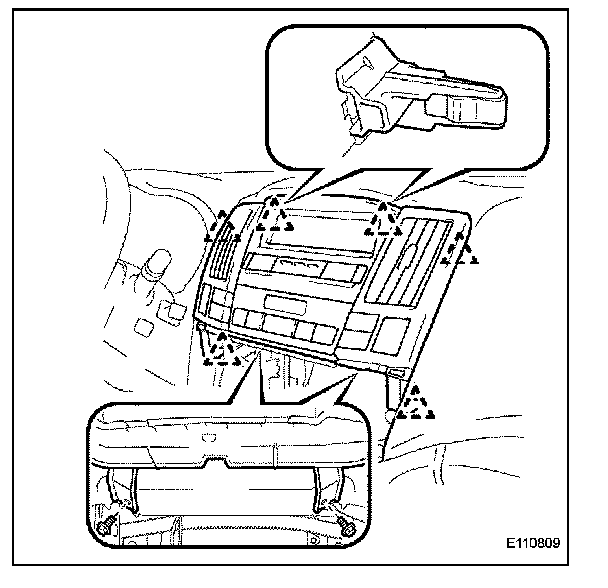

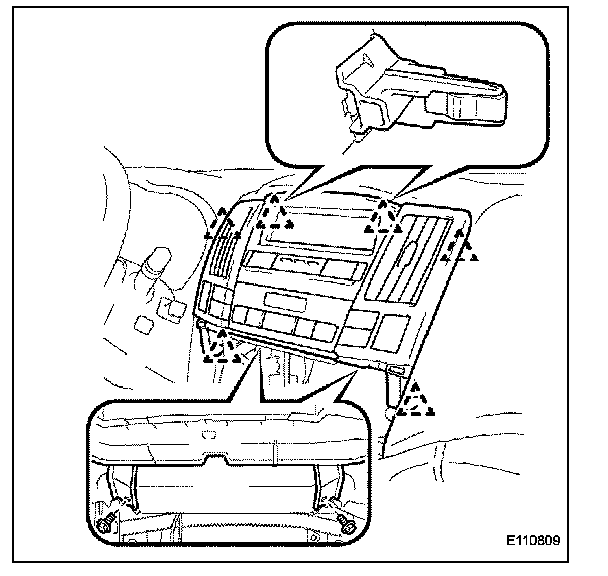

4. REMOVE CENTER CLUSTER INTEGRATION SWITCH




a. Remove the 2 bolts.
b. Release the 6 clips.
c. Disconnect the connector and remove center cluster integration switch.

INSTALLATION

1. INSTALL CENTER CLUSTER INTEGRATION SWITCH




a. Install the connector.
b. Install the center cluster integration switch with the 2 bolts.

2. INSTALL RADIO AND RECEIVER ASSEMBLY WITH BRACKET
3. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER
4. INSTALL CONSOLE PANEL UPPER FRONT
