Headlamp Alignment Control Module: Service and Repair

Headlight Leveling ECU:

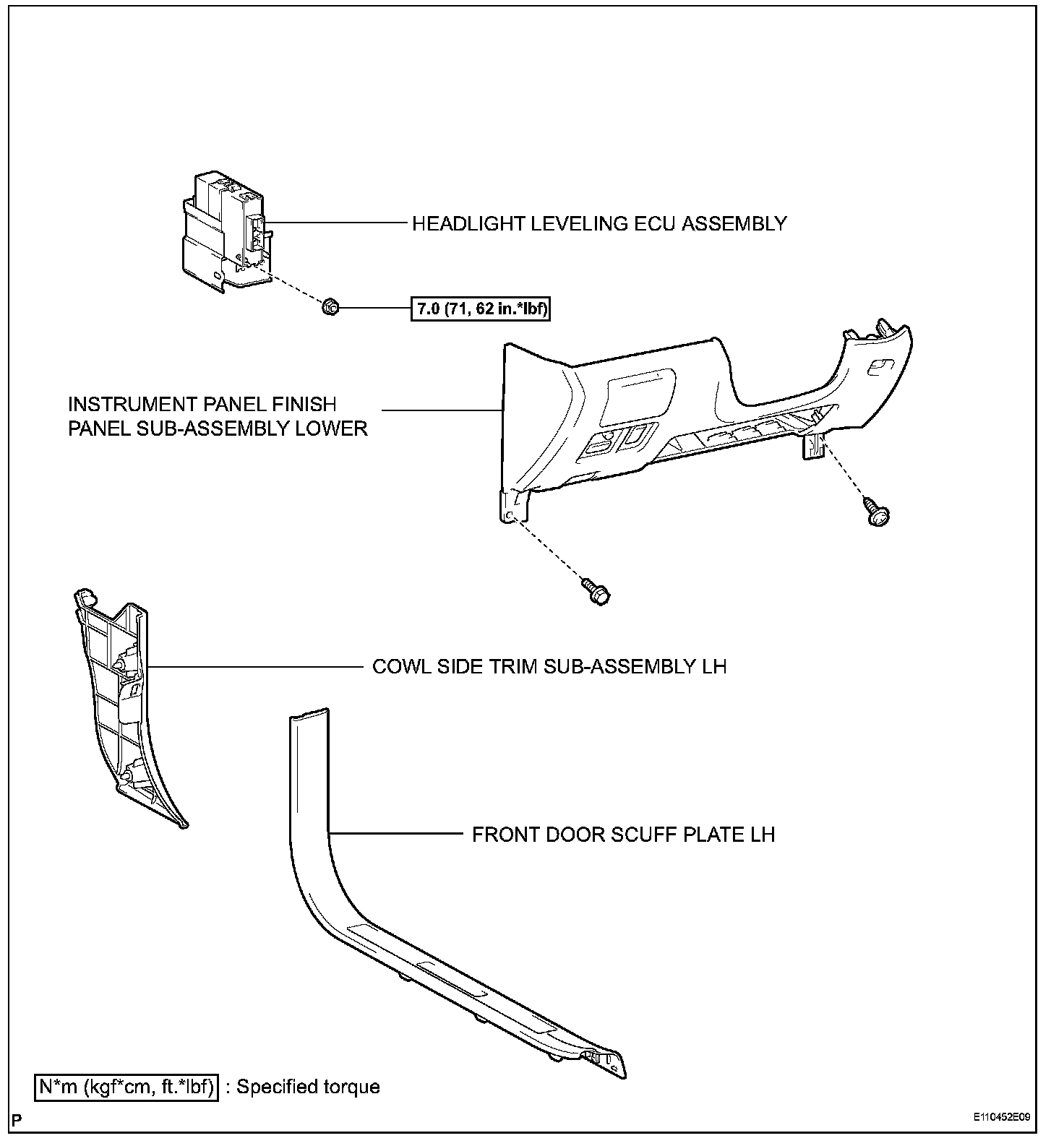

Headlight Leveling ECU

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE LH
3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
4. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER

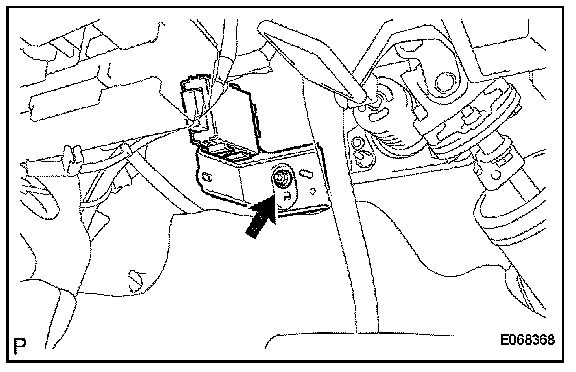

5. REMOVE HEADLIGHT LEVELING ECU ASSEMBLY




a. Disconnect the connector.
b. Remove the nut and the headlight leveling ECU assembly.

INSTALLATION

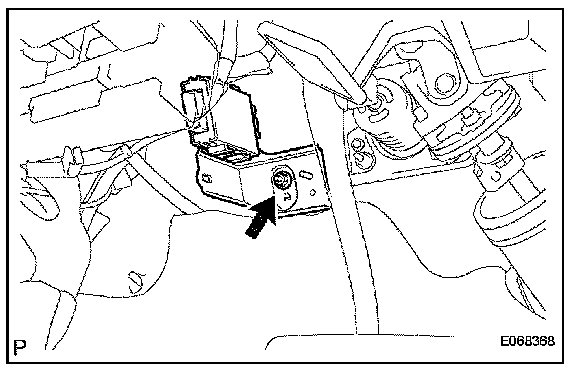

1. INSTALL HEADLIGHT LEVELING ECU ASSEMBLY




a. Install the headlight leveling ECU assembly with the nut.

Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)

b. Connect the connector.

2. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER
3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
4. INSTALL FRONT DOOR SCUFF PLATE LH
5. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
