Headlamp Control Module: Service and Repair

AFS ECU:

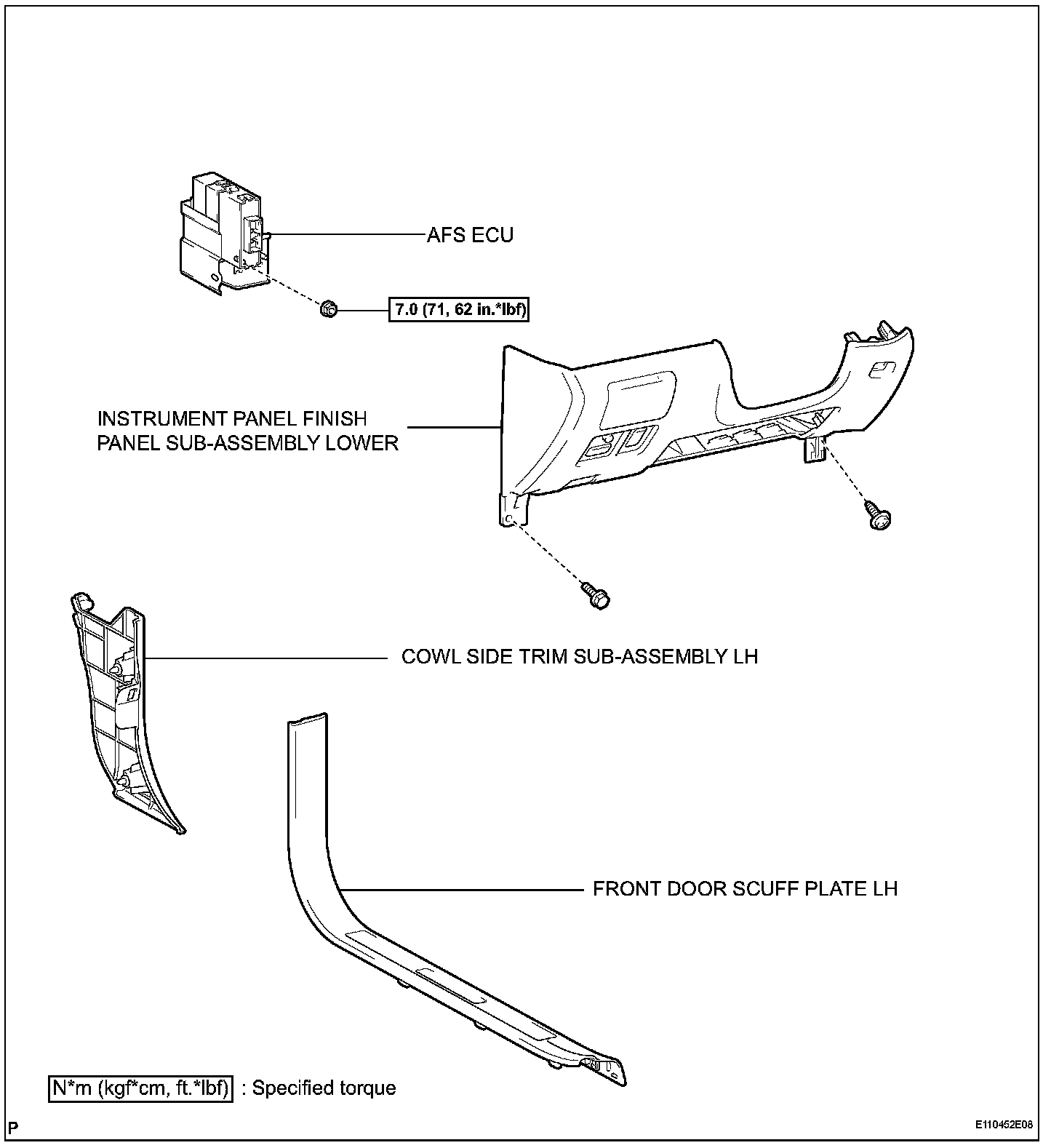

AFS ECU

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE LH
3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
4. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER

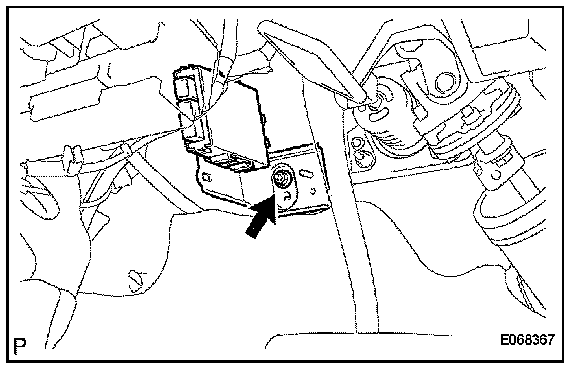

5. REMOVE AFS ECU




a. Disconnect the connector.
b. Remove the nut and AFS ECU.

INSTALLATION

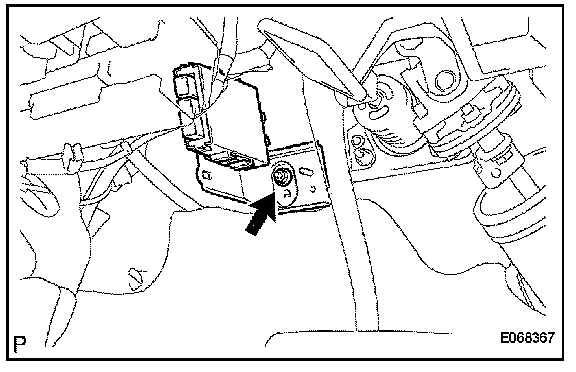

1. INSTALL AFS ECU




a. Install the AFS ECU with the nut.

Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)

b. Connect the connector.

2. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER
3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
4. INSTALL FRONT DOOR SCUFF PLATE LH
5. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
