CAN Main Bus Line For Disconnection

CAN Main Bus Line for Disconnection

DESCRIPTION




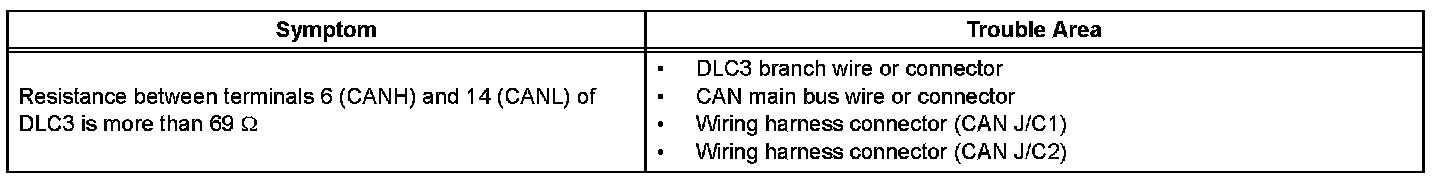

The CAN main bus wire must be disconnected when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is more than 69 ohms.

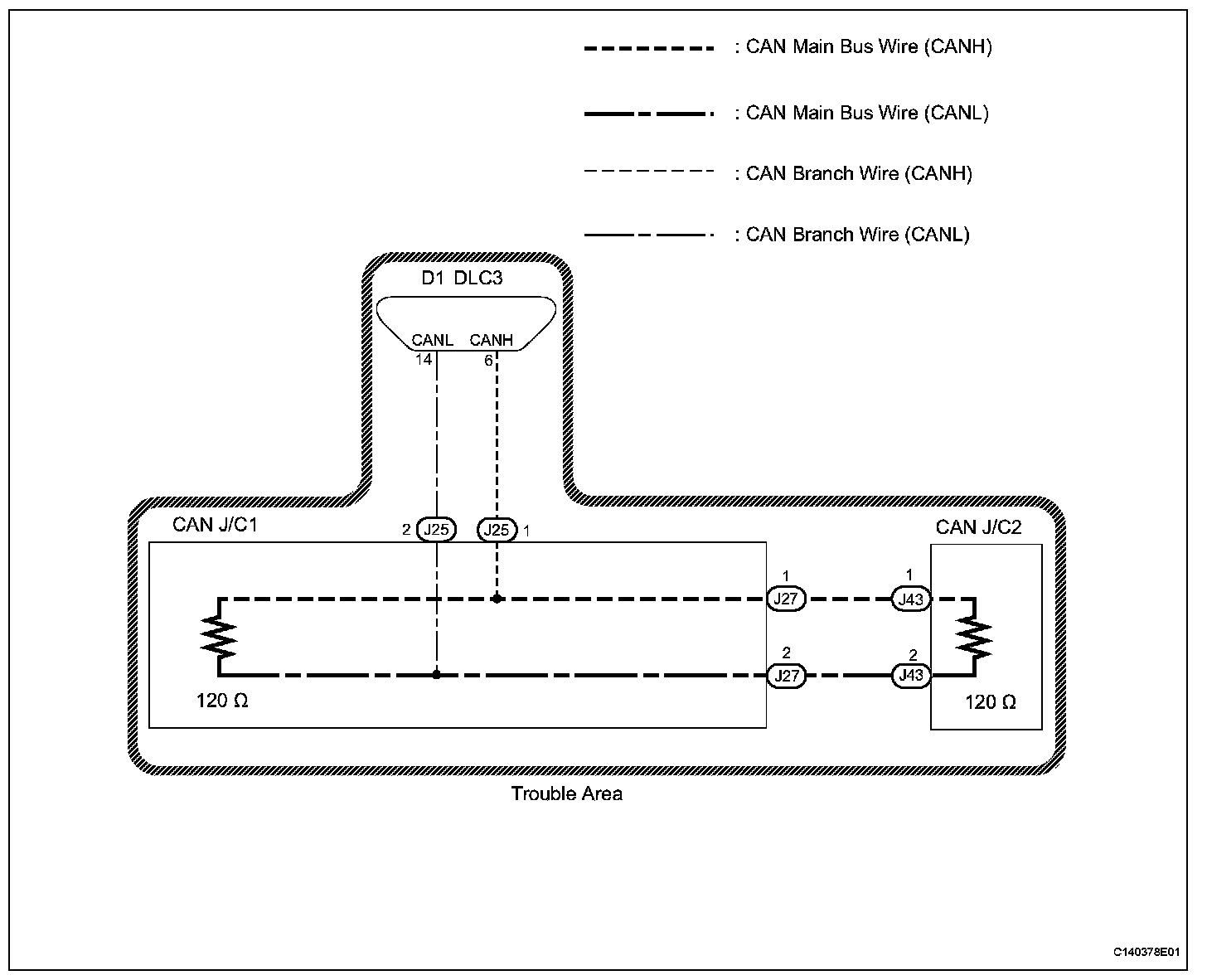

Wiring Diagram:

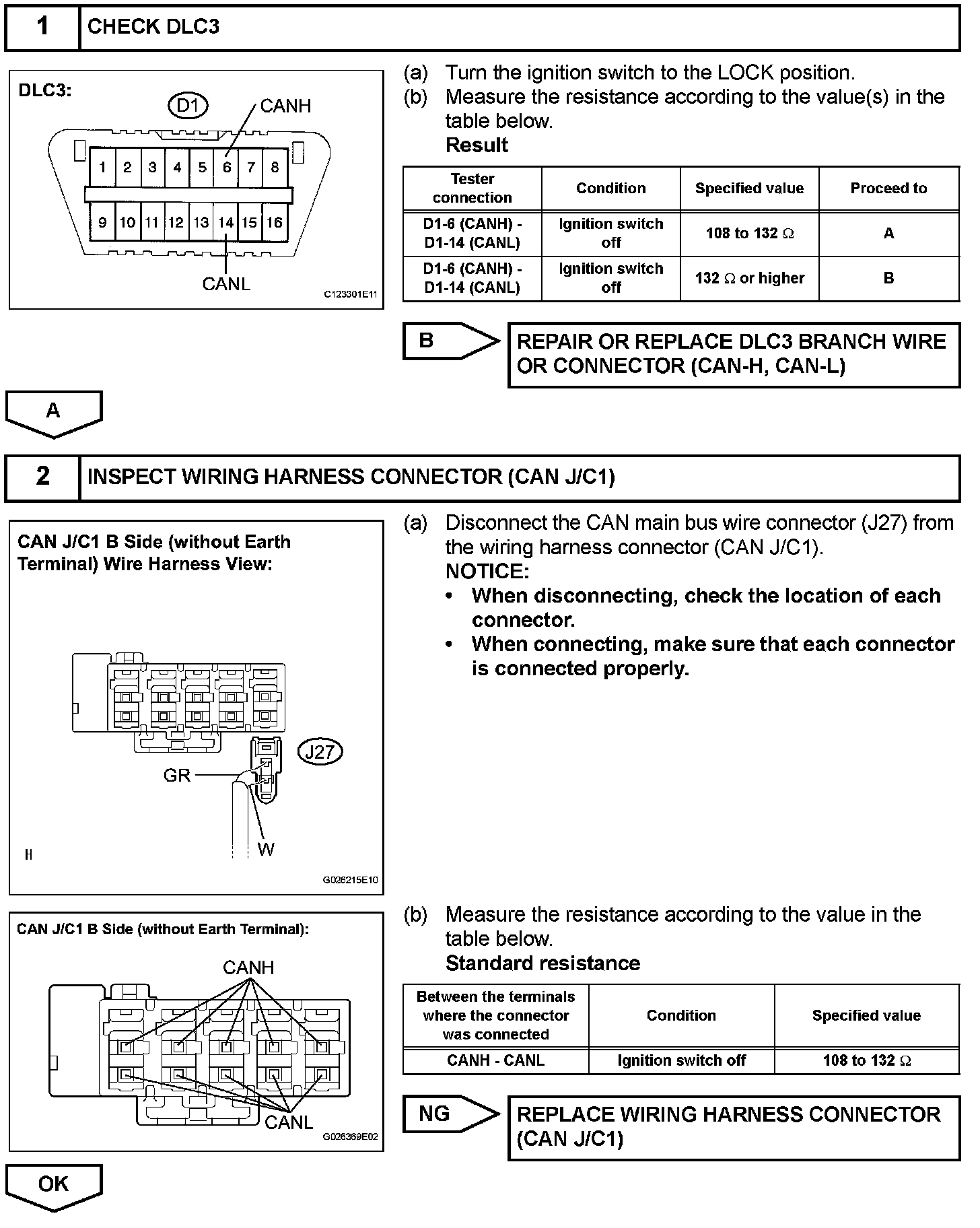

Step 1-2:

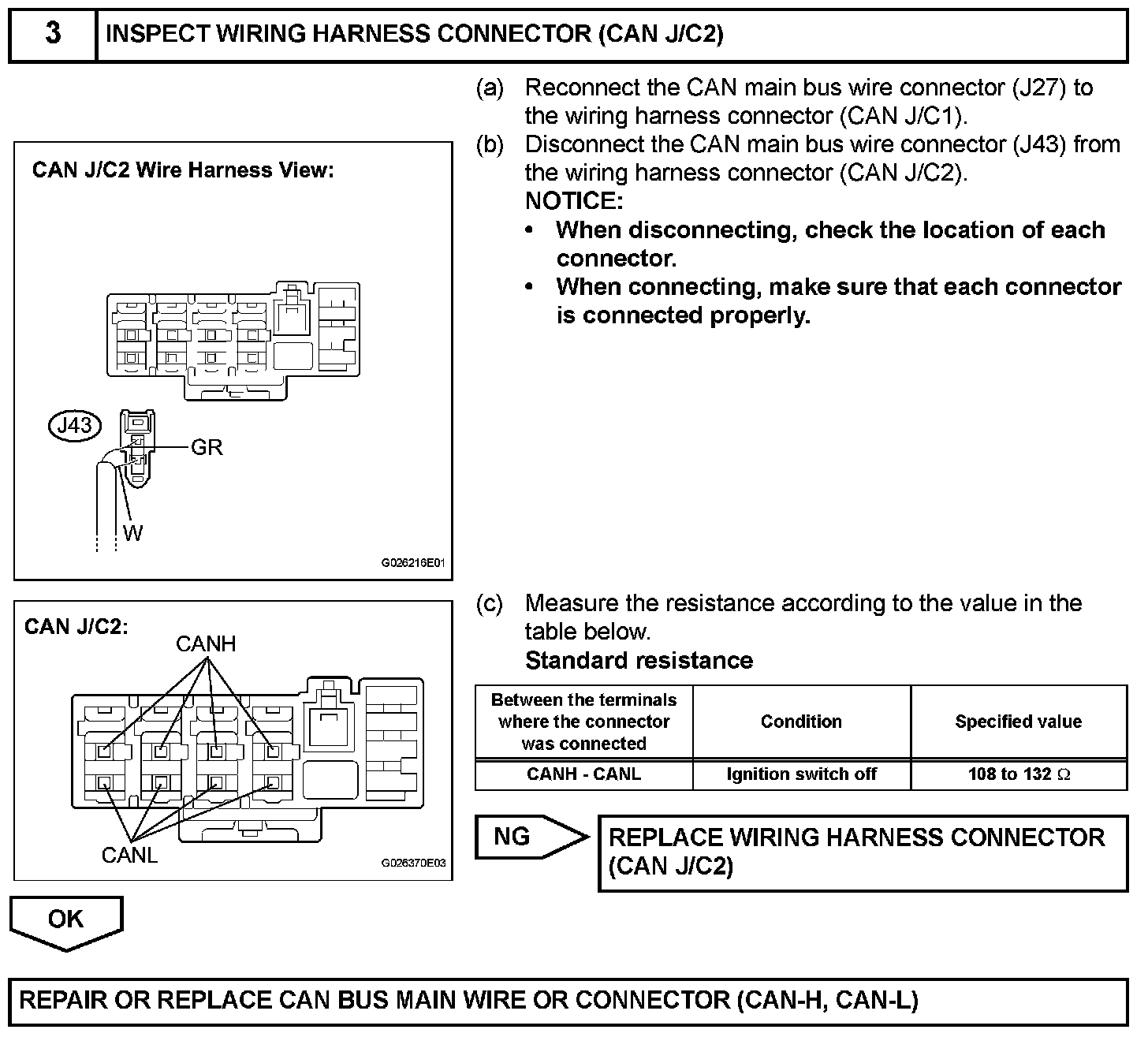

Step 3:

INSPECTION PROCEDURE

HINT: Identify the connector to be checked by its color of the wire and shape of the junction on the CAN J/C because the locations of the connectors to the CAN J/C are confusing.
