ECM Communication Stop Mode

ECM Communication Stop Mode

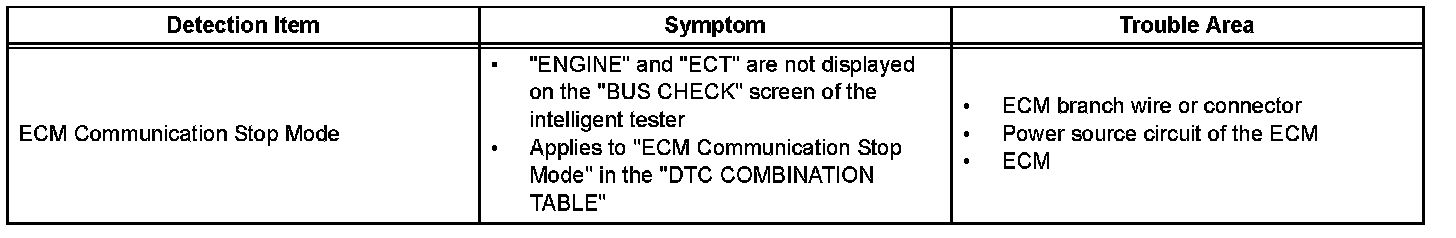

DESCRIPTION

HINT: "ENGINE" and "ECT" refer to the circuit that includes the ECM.

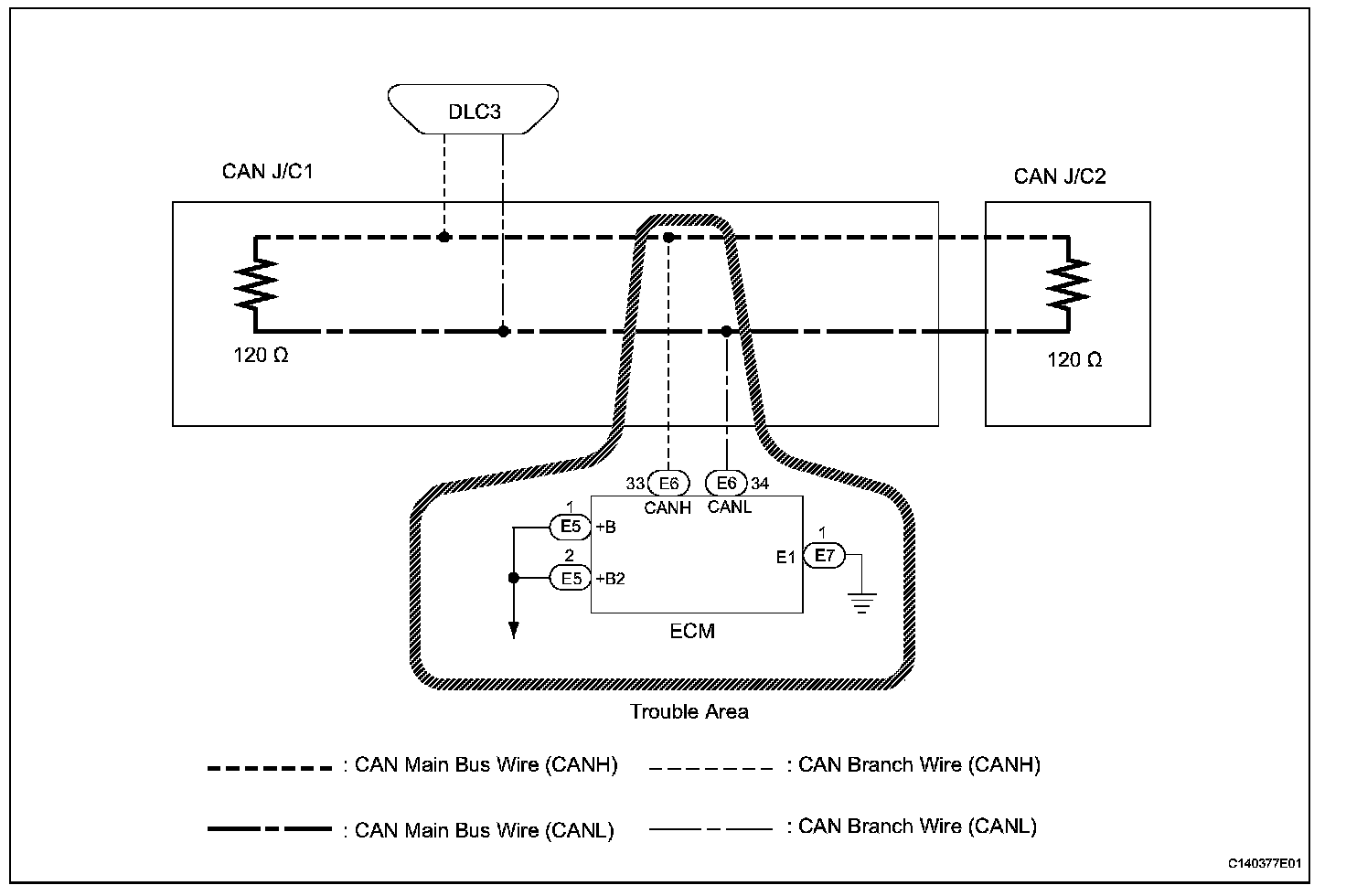

Wiring Diagram:

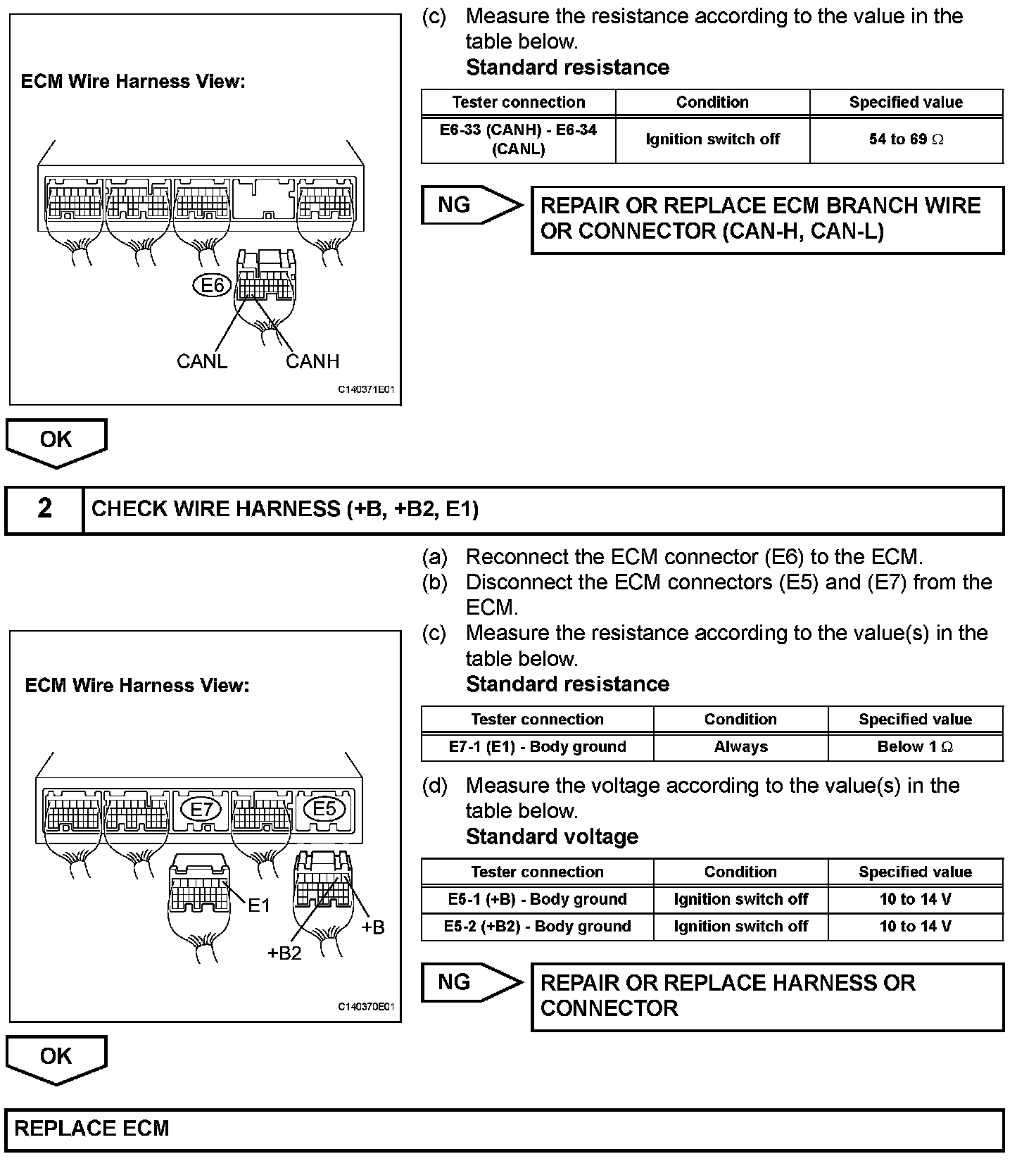

Step 1:

Step 1 (Continued)-2:

INSPECTION PROCEDURE
