Gateway ECU Communication Stop Mode

Gateway ECU Communication Stop Mode

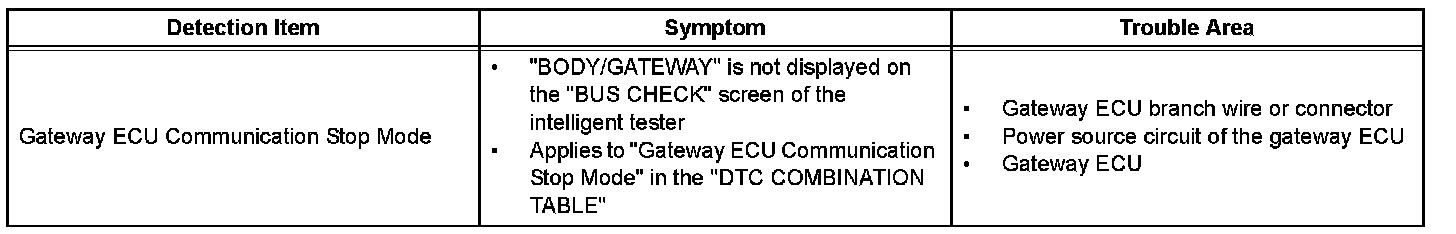

DESCRIPTION

HINT: "BODY/GATEWAY" refers to the circuit that includes the gateway ECU.

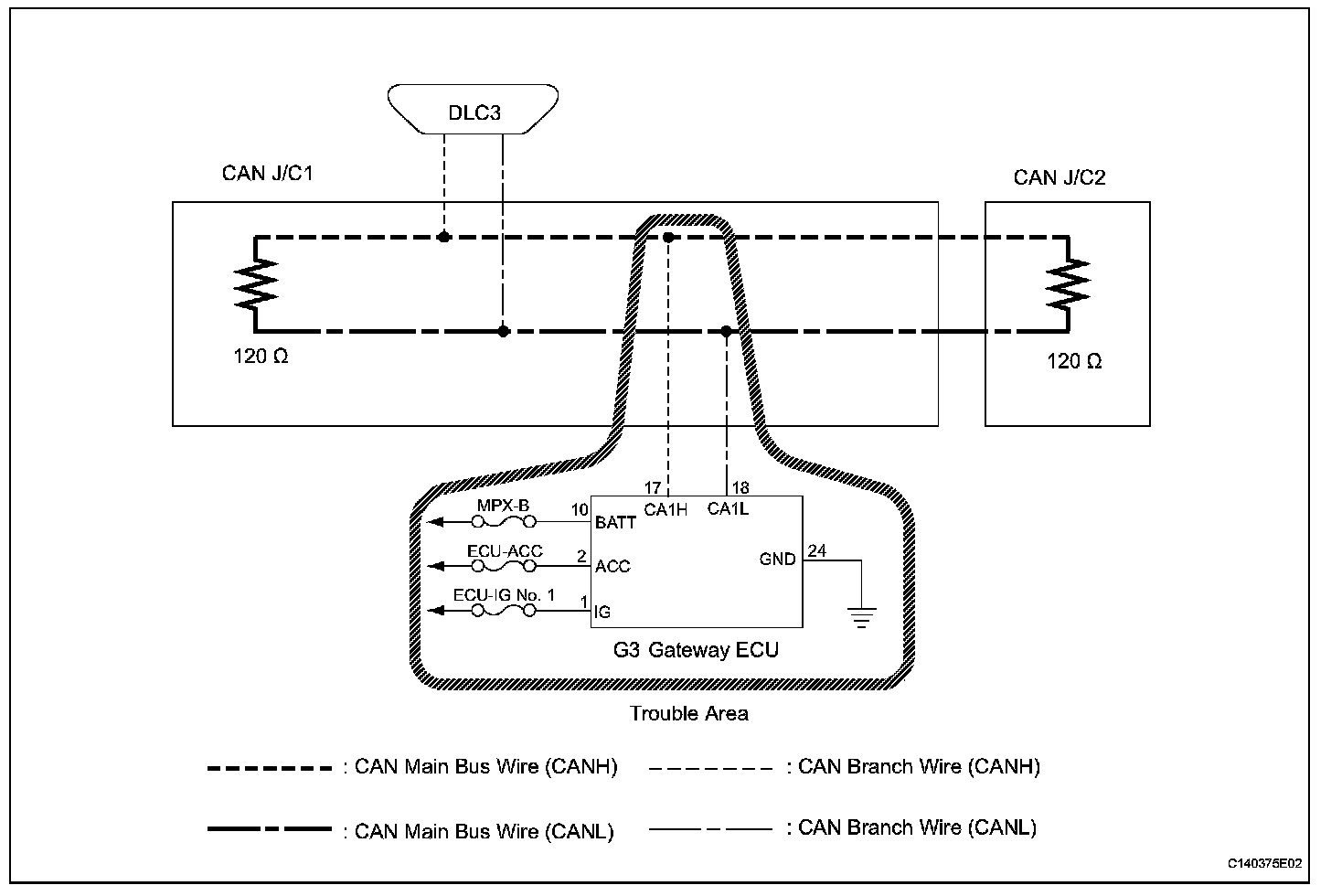

Wiring Diagram:

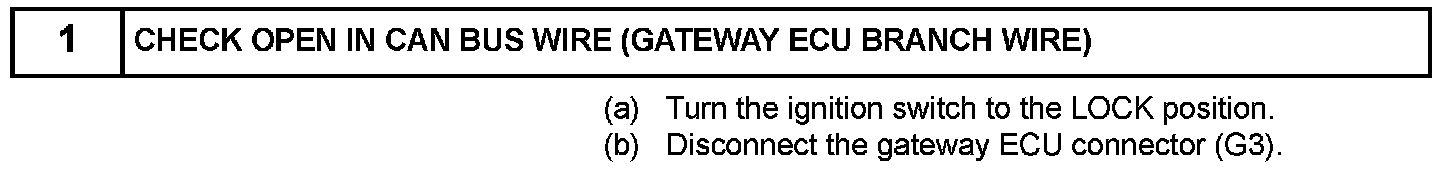

Step 1:

Step 1 (Continued)-2:

INSPECTION PROCEDURE
