Skid Control ECU Communication Stop Mode

Skid Control ECU Communication Stop Mode

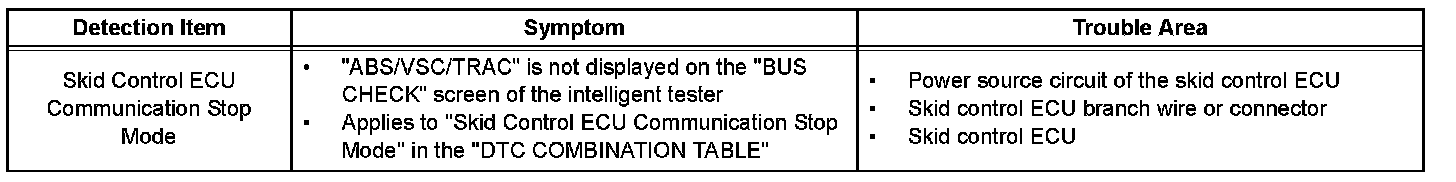

DESCRIPTION






HINT: "ABS/VSC/TRC" refers to the circuit that includes the skid control ECU.

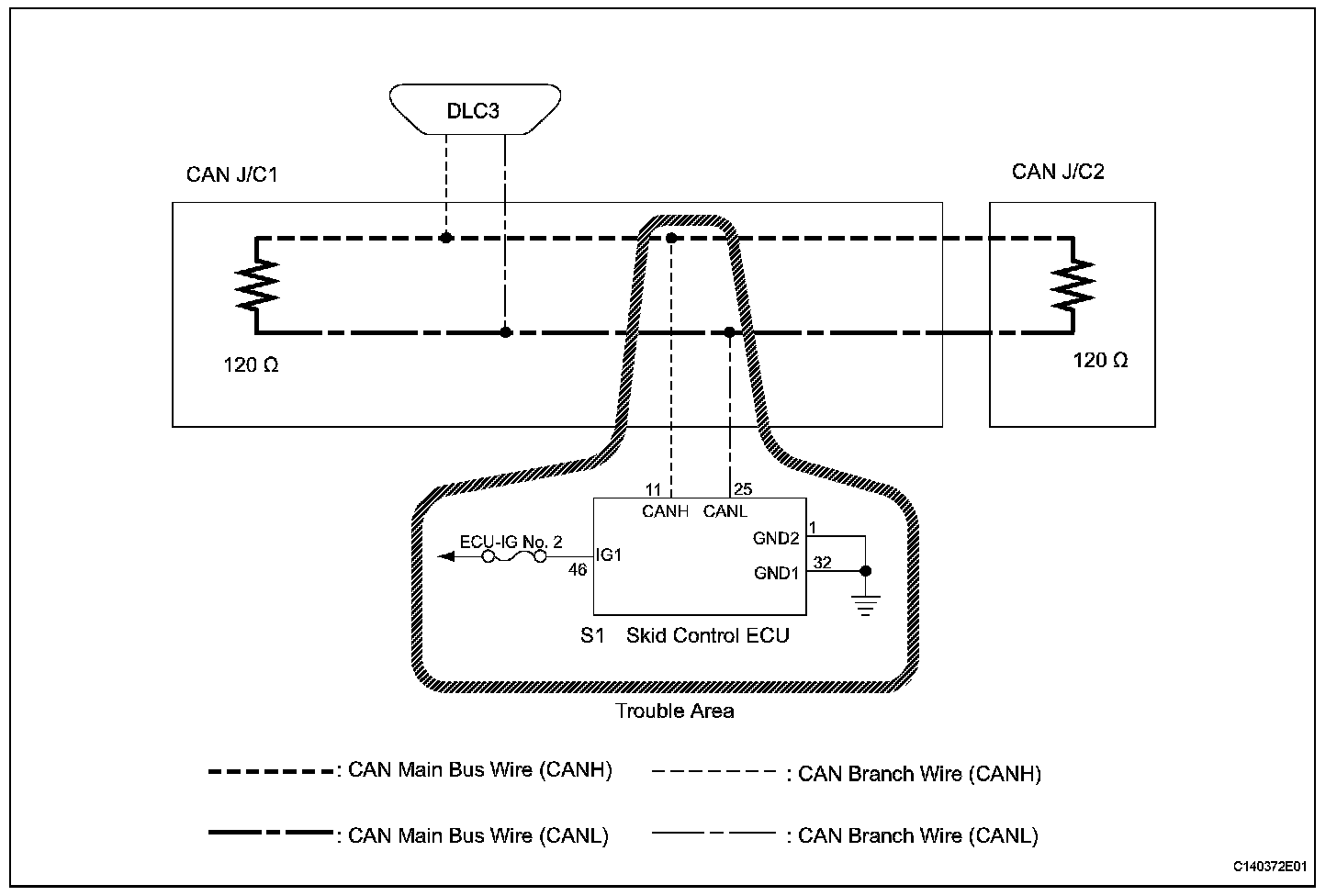

Wiring Diagram:

Step 1:

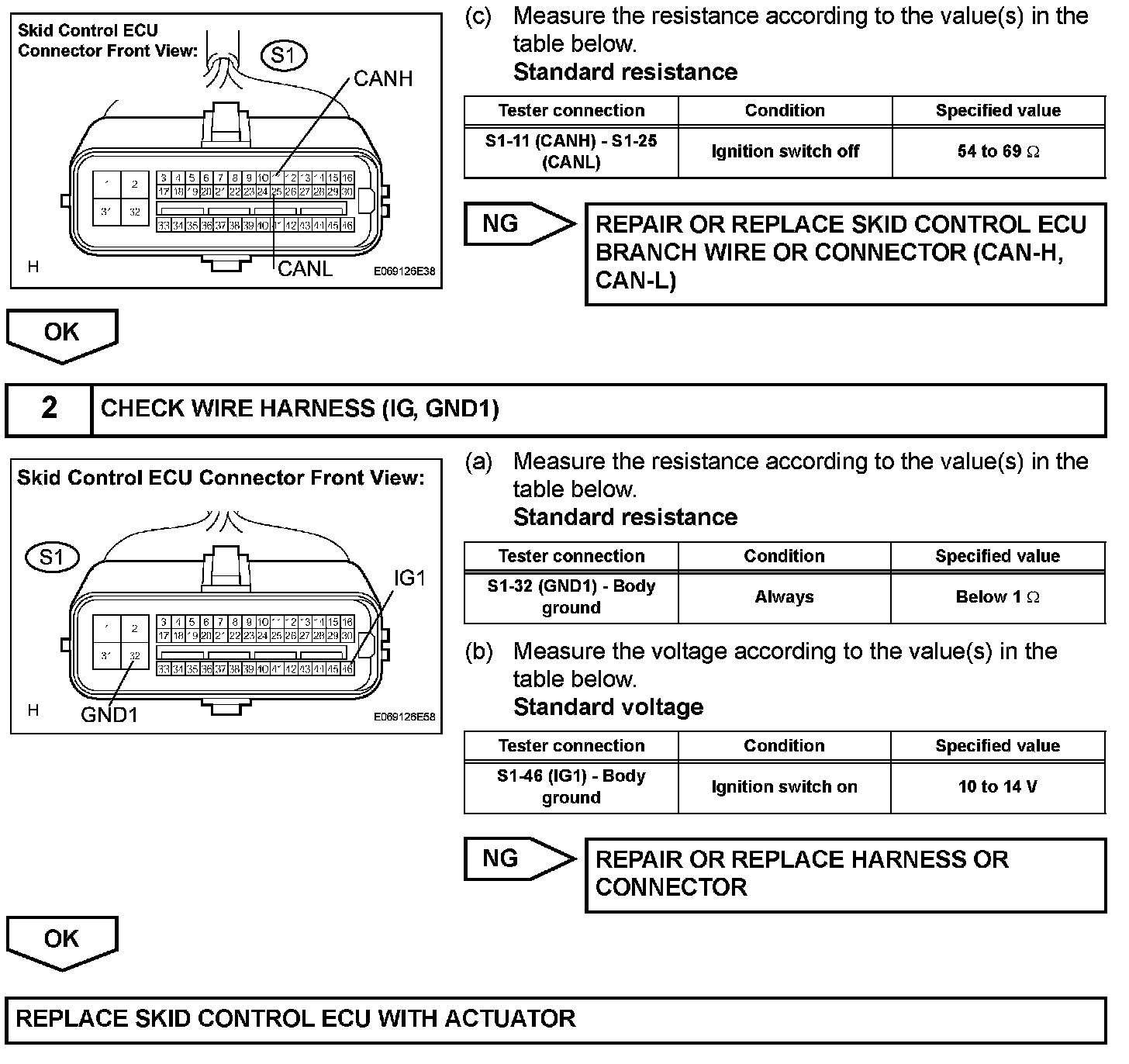

Step 1 (Continued)-2:

INSPECTION PROCEDURE
