Steering Angle Sensor Communication Stop Mode
Steering Angle Sensor Communication Stop Mode

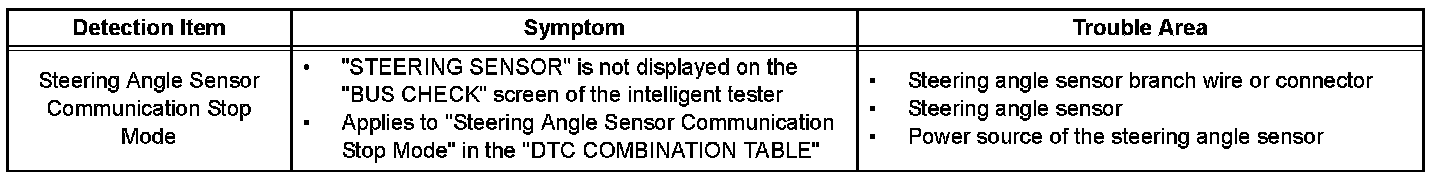

DESCRIPTION
HINT: "STEERING SENSOR" refers to the circuit that includes the steering angle sensor.

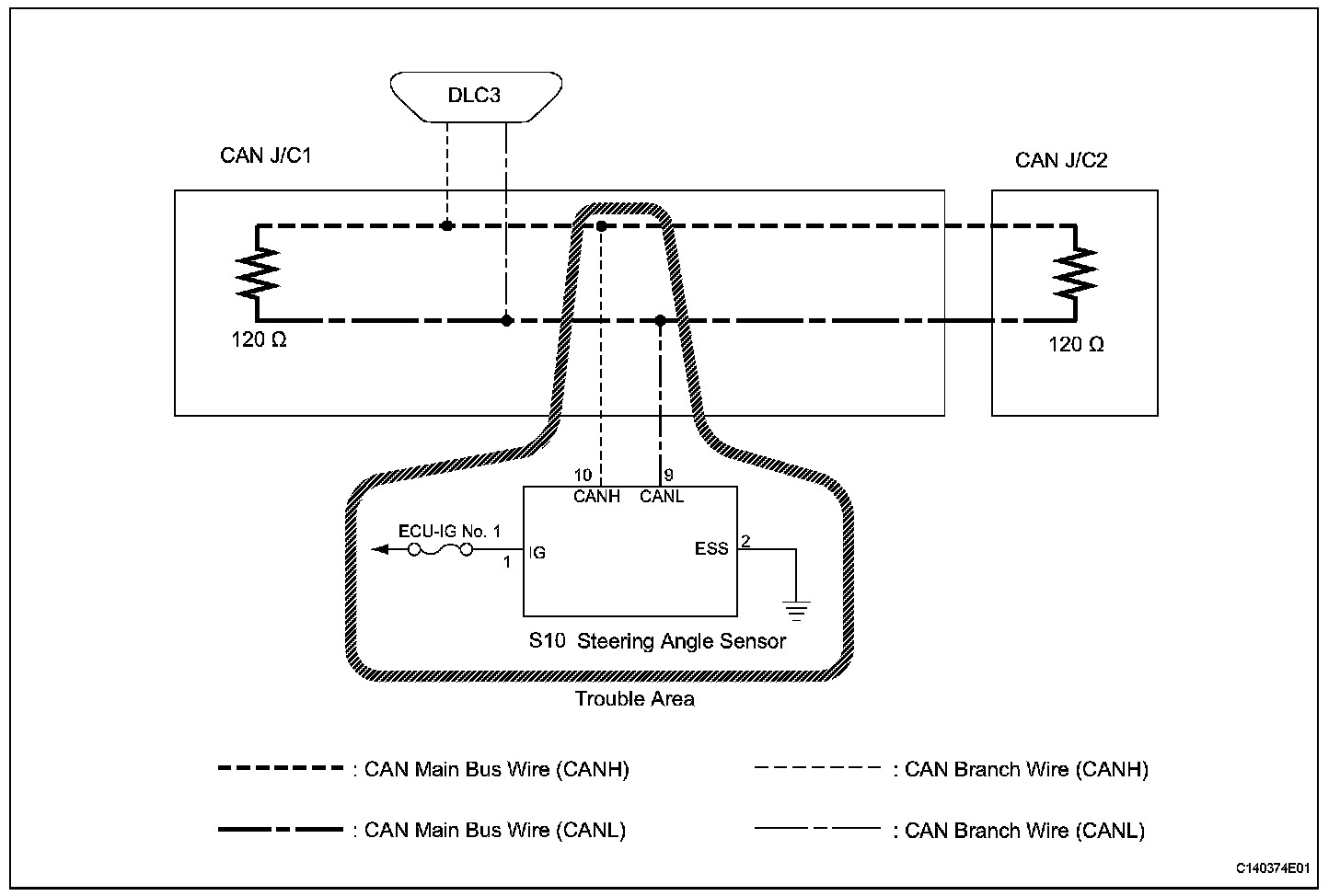

Wiring Diagram:

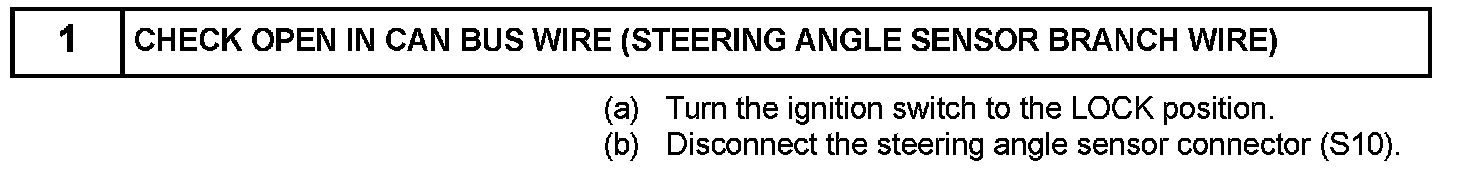

Step 1:

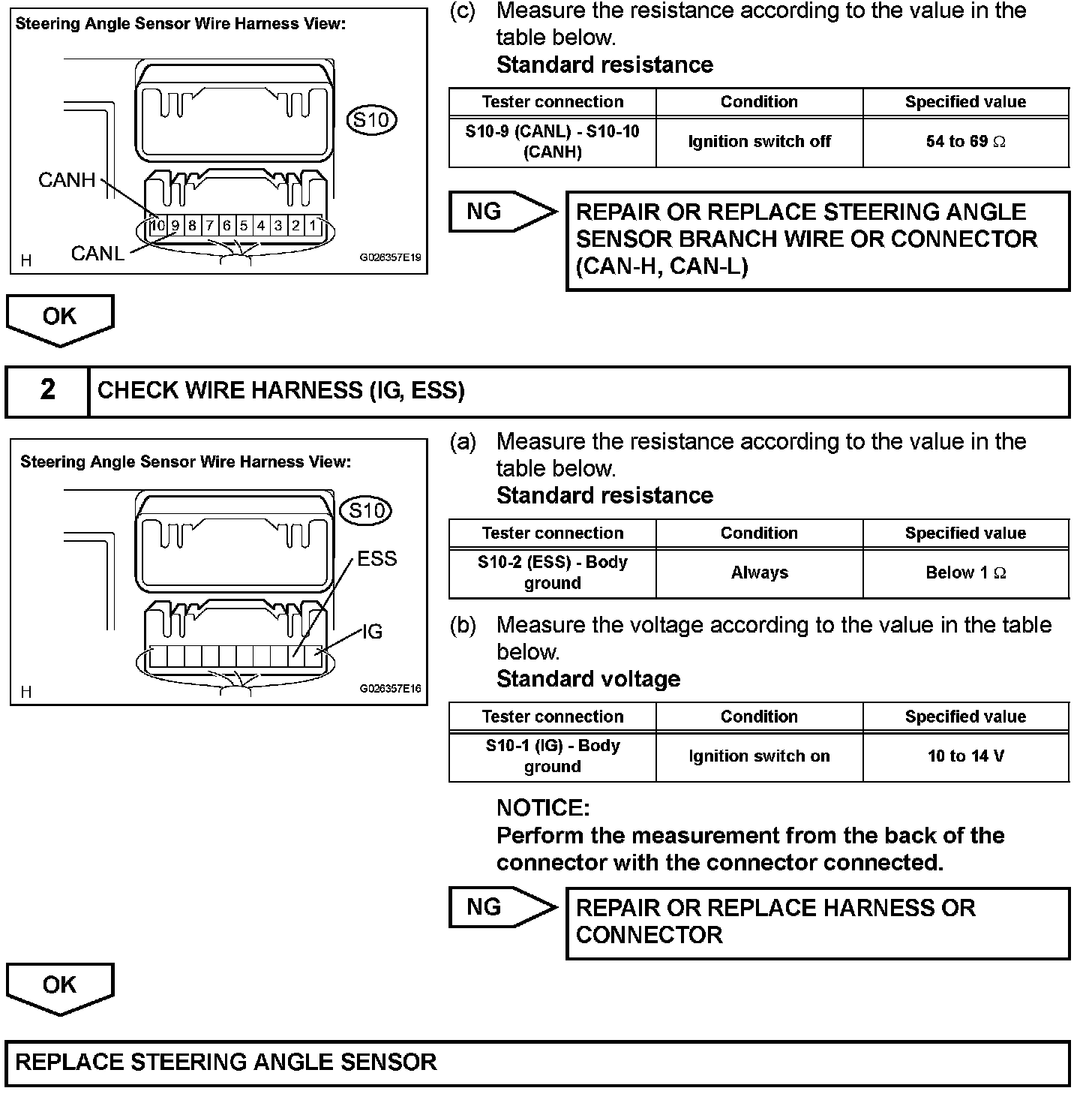

Step 1 (Continued)-2:
INSPECTION PROCEDURE
