FAIL-SAFE CHART

1. FAIL-SAFE FUNCTION
a. When communication fails in any of the CAN bus wires (communication wires) due to a short circuit or other causes, the fail-safe function, which is specified for each system, operates to prevent the system from malfunctioning.

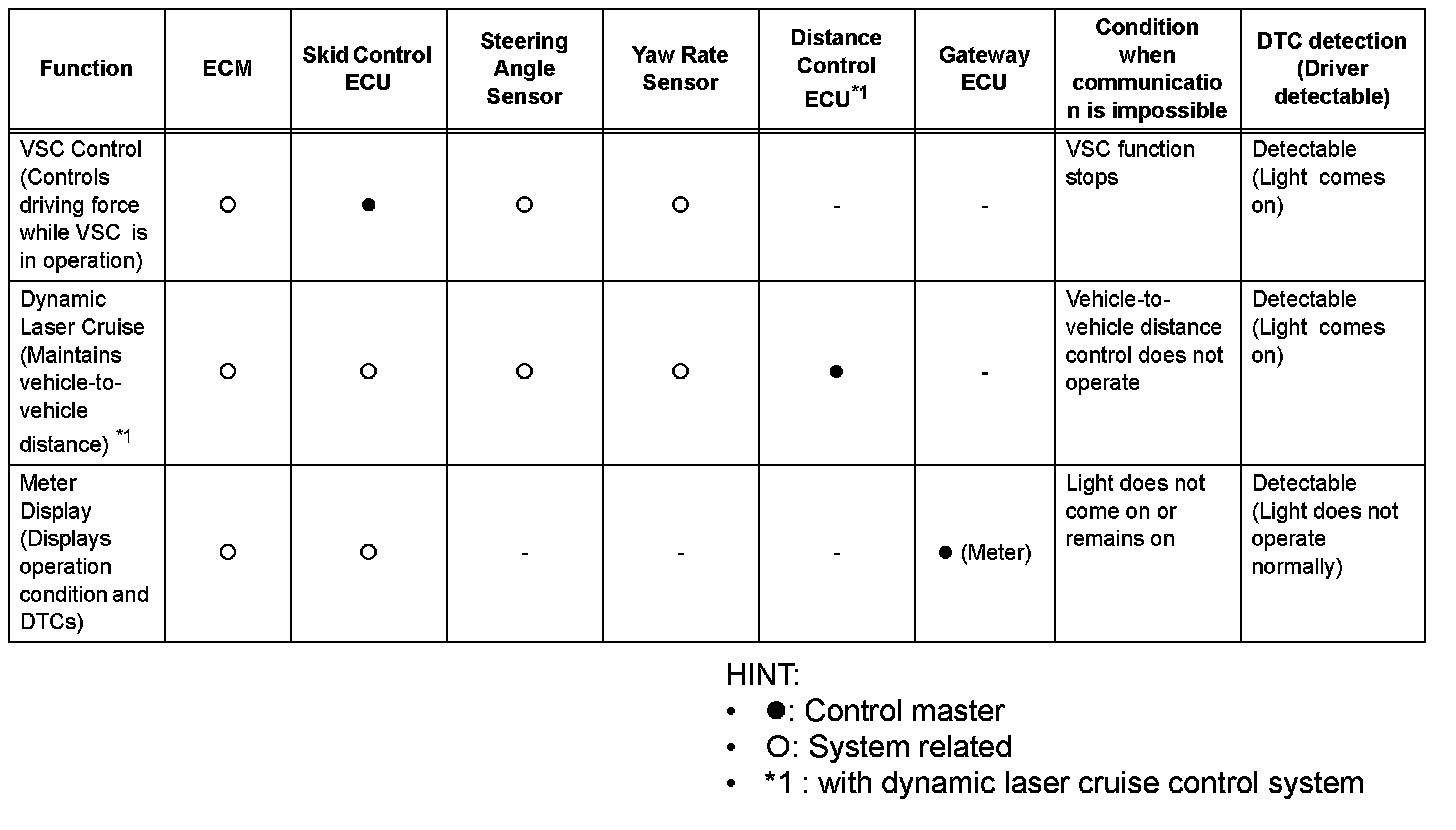

b. Effects on each system when communication is impossible. (Refer each system for further details.)
