Air Fuel Ratio Sensor
INSPECTION1. INSPECT AIR FUEL RATIO SENSOR

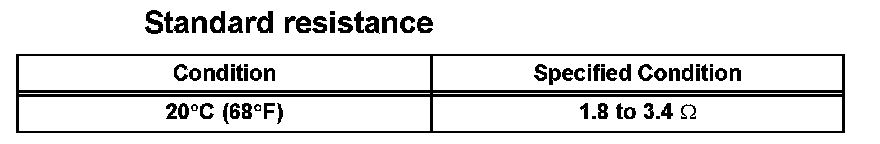

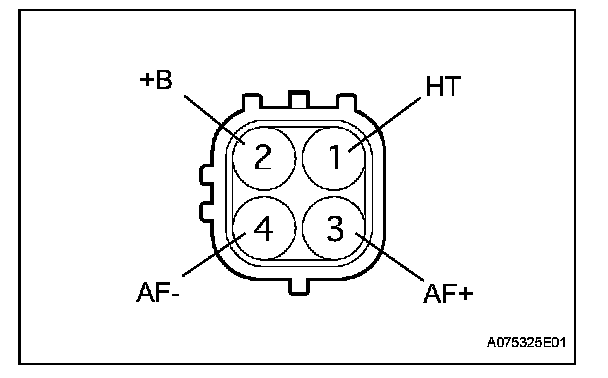

a. Using an ohmmeter, measure the resistance between terminals 1 (HT) and 2 (+B).
If the result is not as specified, replace the sensor.
1. INSPECT AIR FUEL RATIO SENSOR
a. Using an ohmmeter, measure the resistance between terminals 1 (HT) and 2 (+B).
If the result is not as specified, replace the sensor.
