Variable Valve Timing Actuator Position Sensor: Service and Repair
REMOVAL1. REMOVE WINDSHIELD WIPER LINK ASSEMBLY
2. REMOVE COWL TOP PANEL OUTER SUB-ASSEMBLY
3. DRAIN ENGINE COOLANT
4. REMOVE NO. 1 V-BANK COVER BRACKET
5. REMOVE NO. 2 AIR CLEANER INLET
6. REMOVE NO. 1 AIR CLEANER INLET
7. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
8. REMOVE AIR CLEANER CASE SUB-ASSEMBLY
9. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

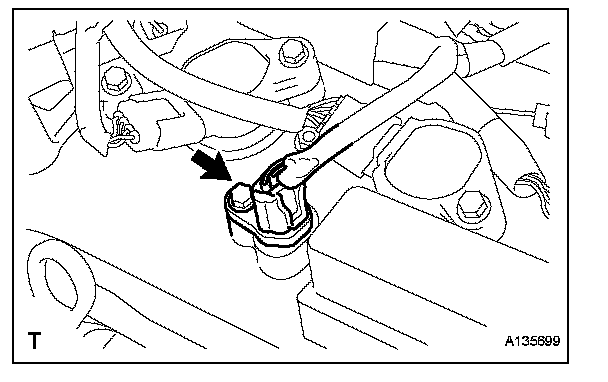

10. REMOVE VVT SENSOR (for Bank 1 Intake Side)
a. Disconnect the VVT sensor connector.
b. Remove the bolt and VVT sensor.

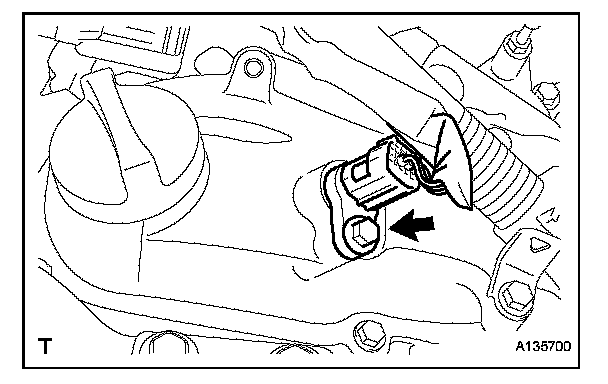

11. REMOVE VVT SENSOR (for Bank 1 Exhaust Side)
a. Disconnect the VVT sensor connector.
b. Remove the bolt and VVT sensor.

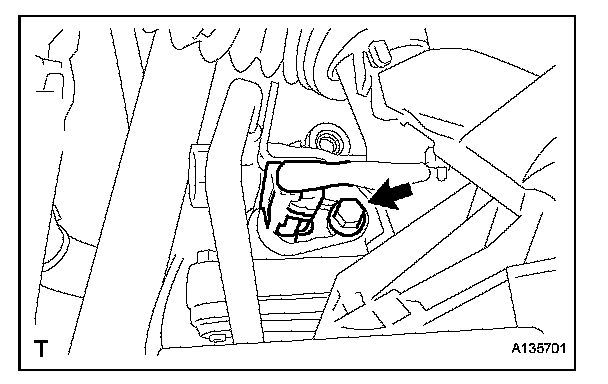

12. REMOVE VVT SENSOR (for Bank 2 Intake Side)
a. Disconnect the VVT sensor connector.
b. Remove the bolt and VVT sensor.

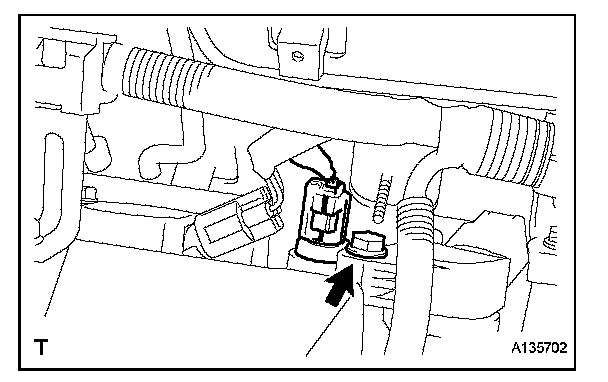

13. REMOVE VVT SENSOR (for Bank 2 Exhaust Side)
a. Disconnect the VVT sensor connector.
b. Remove the bolt and VVT sensor.
INSTALLATION

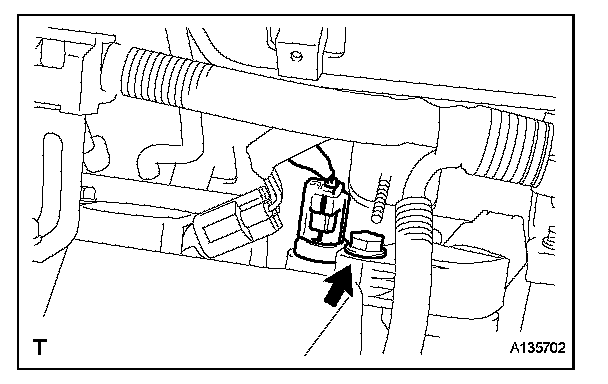

1. INSTALL VVT SENSOR (for Bank 2 Exhaust Side)
a. Install the VVT sensor with the bolt.
Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
b. Connect the VVT sensor connector.

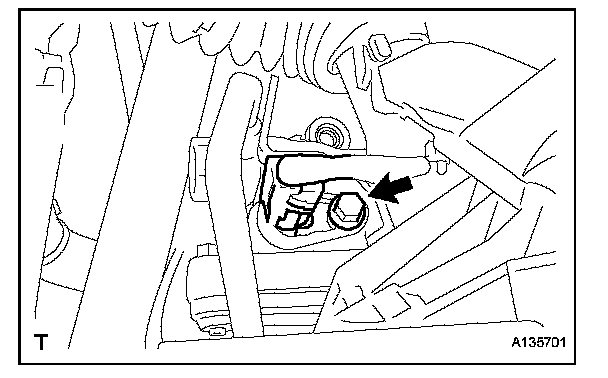

2. INSTALL VVT SENSOR (for Bank 2 Intake Side)
a. Install the VVT sensor with the bolt.
Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
b. Connect the VVT sensor connector.

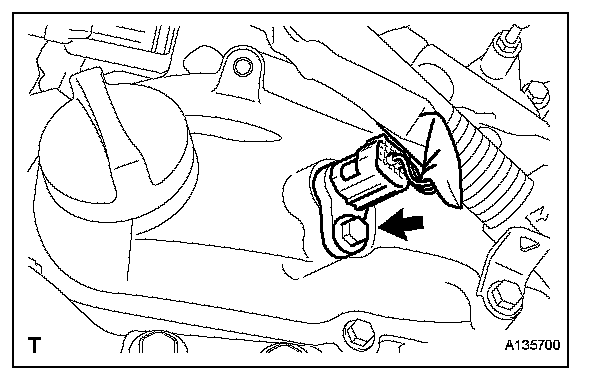

3. INSTALL VVT SENSOR (for Bank 1 Exhaust Side)
a. Install the VVT sensor with the bolt.
Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
b. Connect the VVT sensor connector.

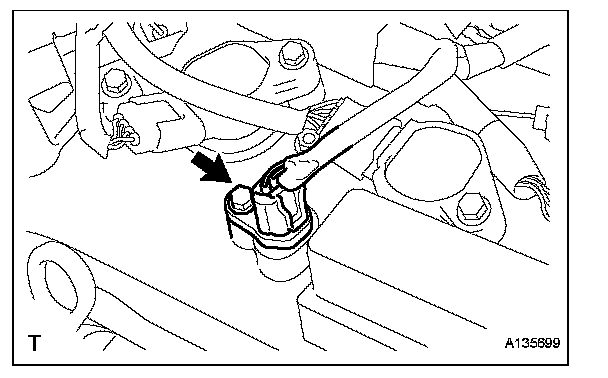

4. INSTALL VVT SENSOR (for Bank 1 Intake Side)
a. Install the VVT sensor with the bolt.
Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
b. Connect the VVT sensor connector.
5. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
6. INSTALL AIR CLEANER CASE SUB-ASSEMBLY
7. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
8. INSTALL NO. 1 AIR CLEANER INLET
9. INSTALL NO. 2 AIR CLEANER INLET
10. ADD ENGINE COOLANT
11. CHECK FOR ENGINE COOLANT LEAKS
12. CHECK FOR ENGINE OIL LEAKS
13. INSTALL V-BANK COVER SUB-ASSEMBLY
14. INSTALL COWL TOP OUTER PANEL OUTER SUB-ASSEMBLY
15. INSTALL WINDSHIELD WIPER LINK ASSEMBLY
