Component Tightening Specifications and Sequences
CYLINDER HEAD RH1st 36 N*m (367 kgf*cm, 27 ft.*lbf)
2nd Turn 90°
3rd Turn 90°
CYLINDER HEAD LH
1st 36 N*m (367 kgf*cm, 27 ft.*lbf)
2nd Turn 90°
3rd Turn 90°
Recessed head
14 mm (0.55 in.) head 30 N*m (306 kgf*cm, 22 ft.*lbf)
MAIN BEARING CAP
16 pointed head
1st 61 N*m (622 kgf*cm, 45 ft.*lbf)
2nd Turn 90°
14 mm head 52 N*m (525 kgf*cm, 38 ft.*lbf)
CAMSHAFT BEARING CAP
1st 10 N*m (102 kgf*cm, 7 ft.*lbf)
2nd 16 N*m (163 kgf*cm, 12 ft.*lbf)
CONNECTING ROD CAP
1st 25 N*m (255 kgf*cm, 18 ft.*lbf)
2nd Turn 90°
INTAKE MANIFOLD
Install and tighten the 6 bolts and 4 nuts uniformly in several steps.
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)
CRANKSHAFT PULLEY
Torque 250 N*m (2,550 kgf*cm, 184 ft.*lbf)
OIL PUMP COVER

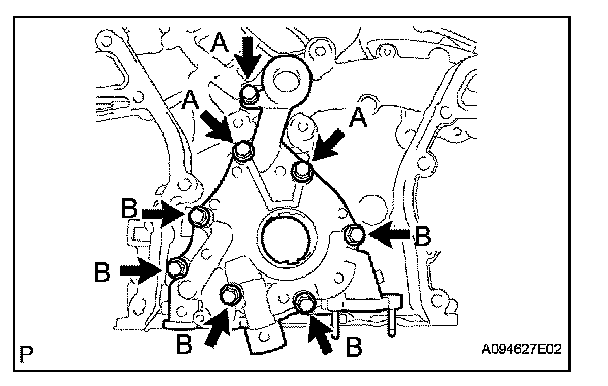

Install the oil pump cover with the 8 bolts.
Torque 9.1 N*m (93 kgf*cm, 81 in.*lbf)
EXHAUST MANIFOLD LH

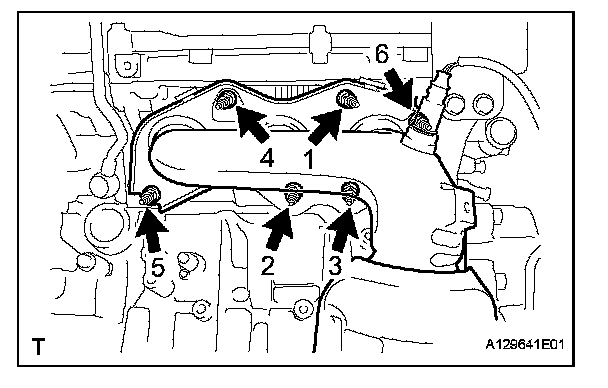

Install the exhaust manifold sub-assembly LH with the 6 nuts in the order shown in the illustration.
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)
EXHAUST MANIFOLD RH

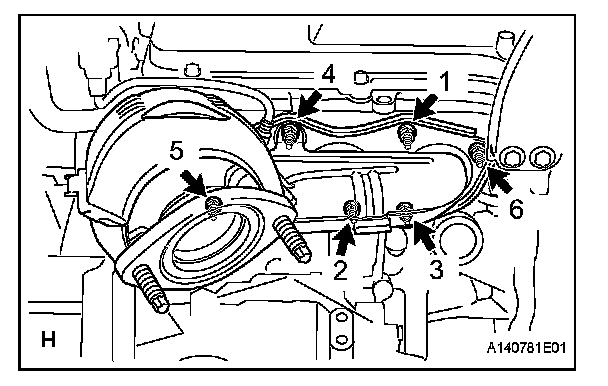

Install the exhaust manifold sub-assembly RH with the 6 nuts in the order shown in the illustration.
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)
WATER PUMP

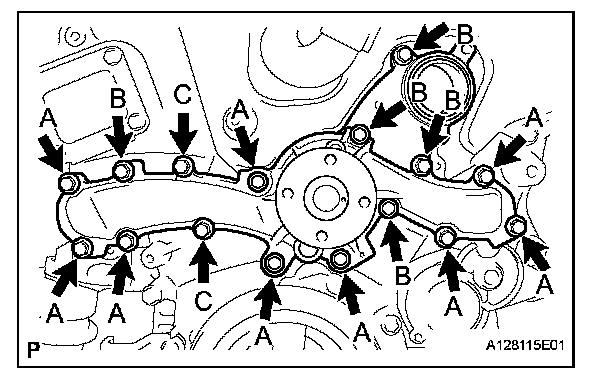

Install a new water pump gasket and the water pump assembly with the 16 bolts.
Torque:
Bolt A 21 N*m (214 kgf*cm, 15 ft.*lbf)
Bolts B and C 9.1 N*m (93 kgf*cm, 81 in.*lbf)
DRIVE PLATE

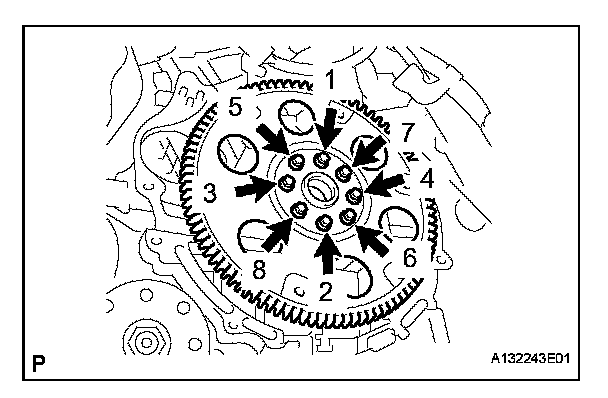

Install and tighten the 8 mounting bolts uniformly in several steps.
Torque 83 N*m (850 kgf*cm, 61 ft.*lbf)
