Distance Control Switch Circuit

Distance Control Switch Circuit

DESCRIPTION

The distance control switch sets the vehicle-to-vehicle distance control mode. The distance control switch is installed in the steering pad switch. The vehicle-to-vehicle distance set value can be changed by operating the steering pad switch (distance control switch) while the dynamic laser cruise control system is in operation.

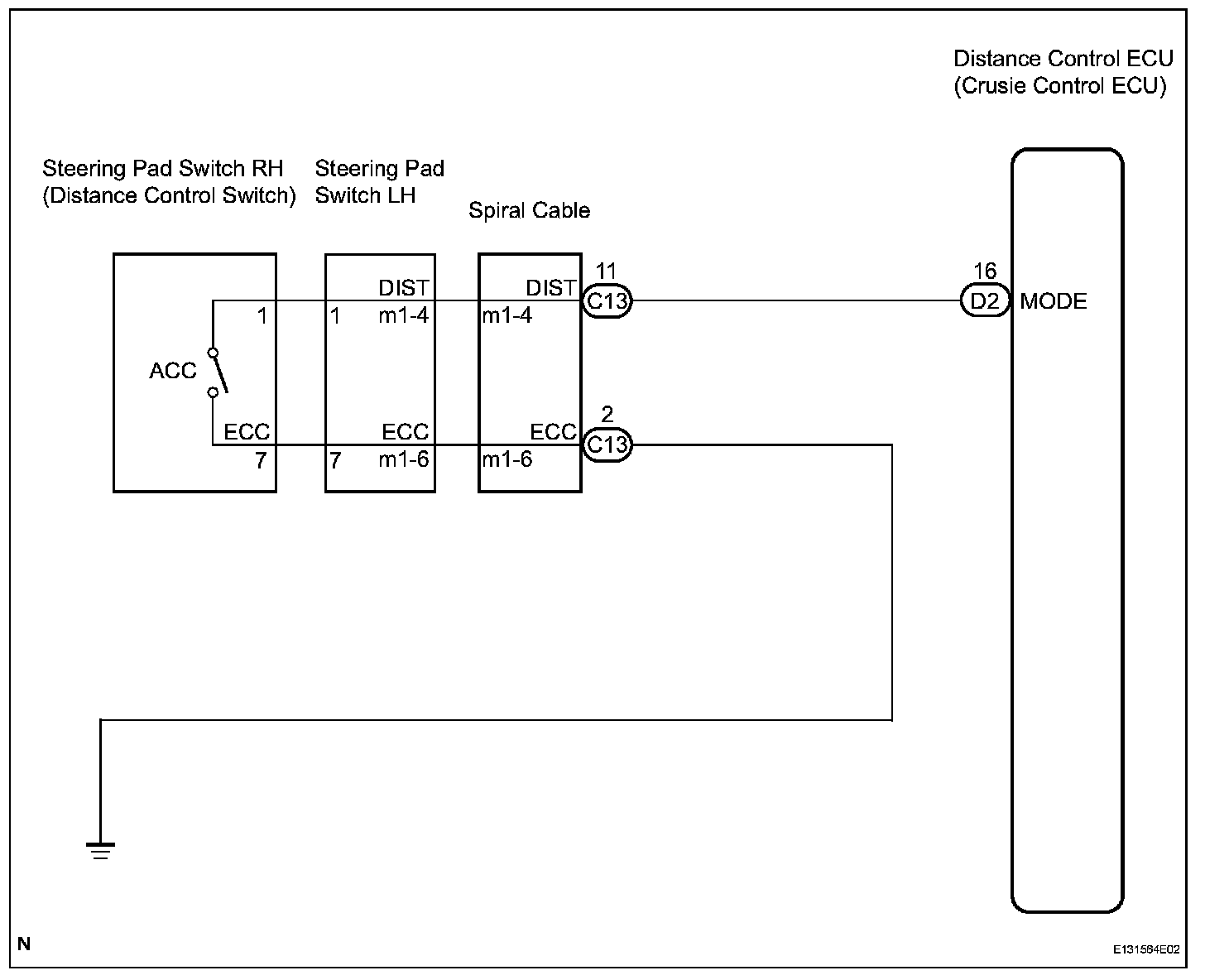

Wiring Diagram:

Step 1-3:

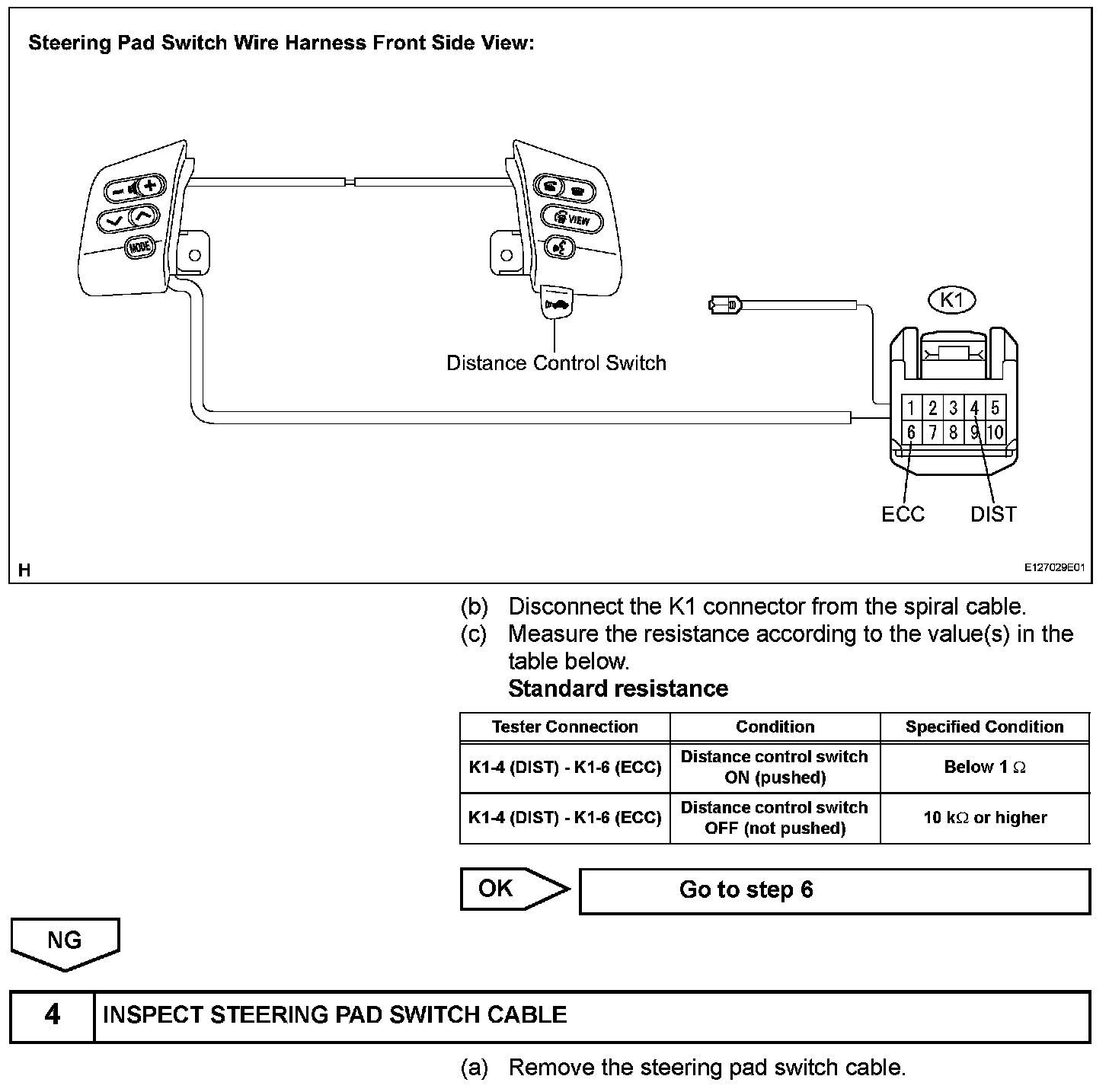

Step 3 (Continued)-4:

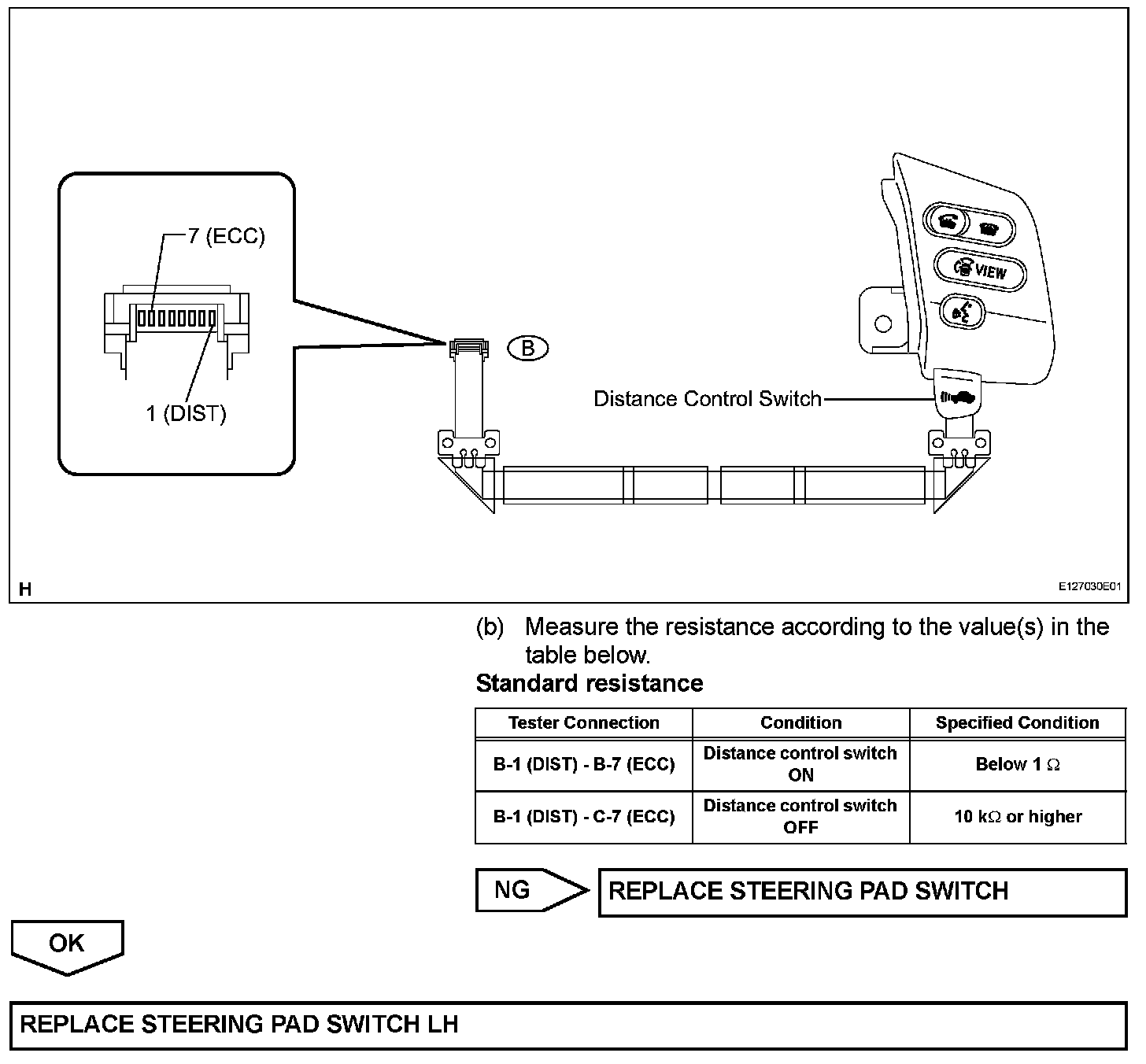

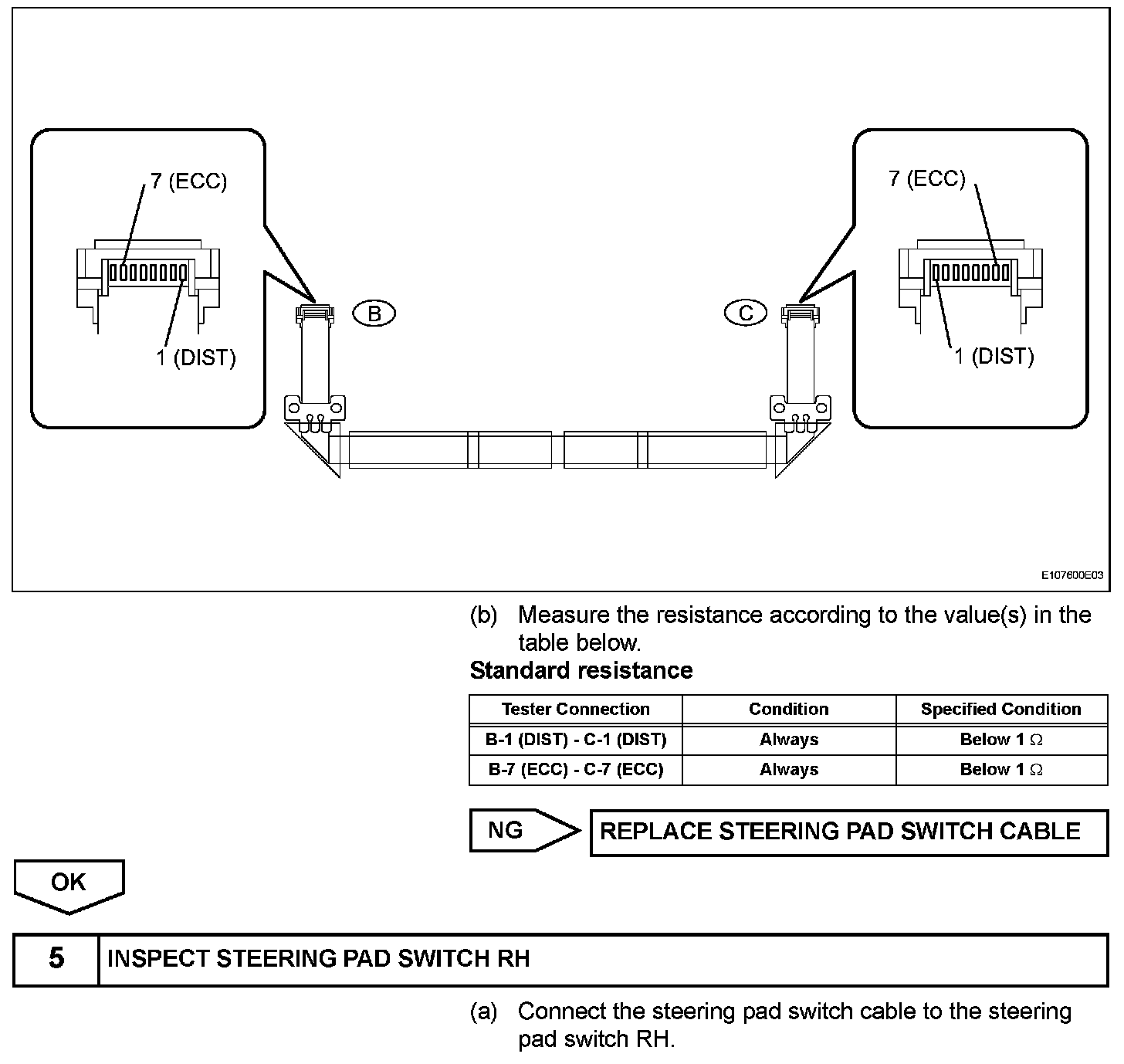

Step 4 (Continued)-5:

Step 5 (Continued):

Step 6:

INSPECTION PROCEDURE

NOTE: When the distance control ECU is replaced with a new one, initialization must be performed.
