Data List

DATA LIST

HINT: From the DATA LIST displayed on the intelligent tester, you can read the value of the display, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way to shorten labor time.

a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch to the ON position.
c. Enter the following menus: DIAGNOSIS / OBD / MOBD / AIR CONDITIONER / DATA LIST.

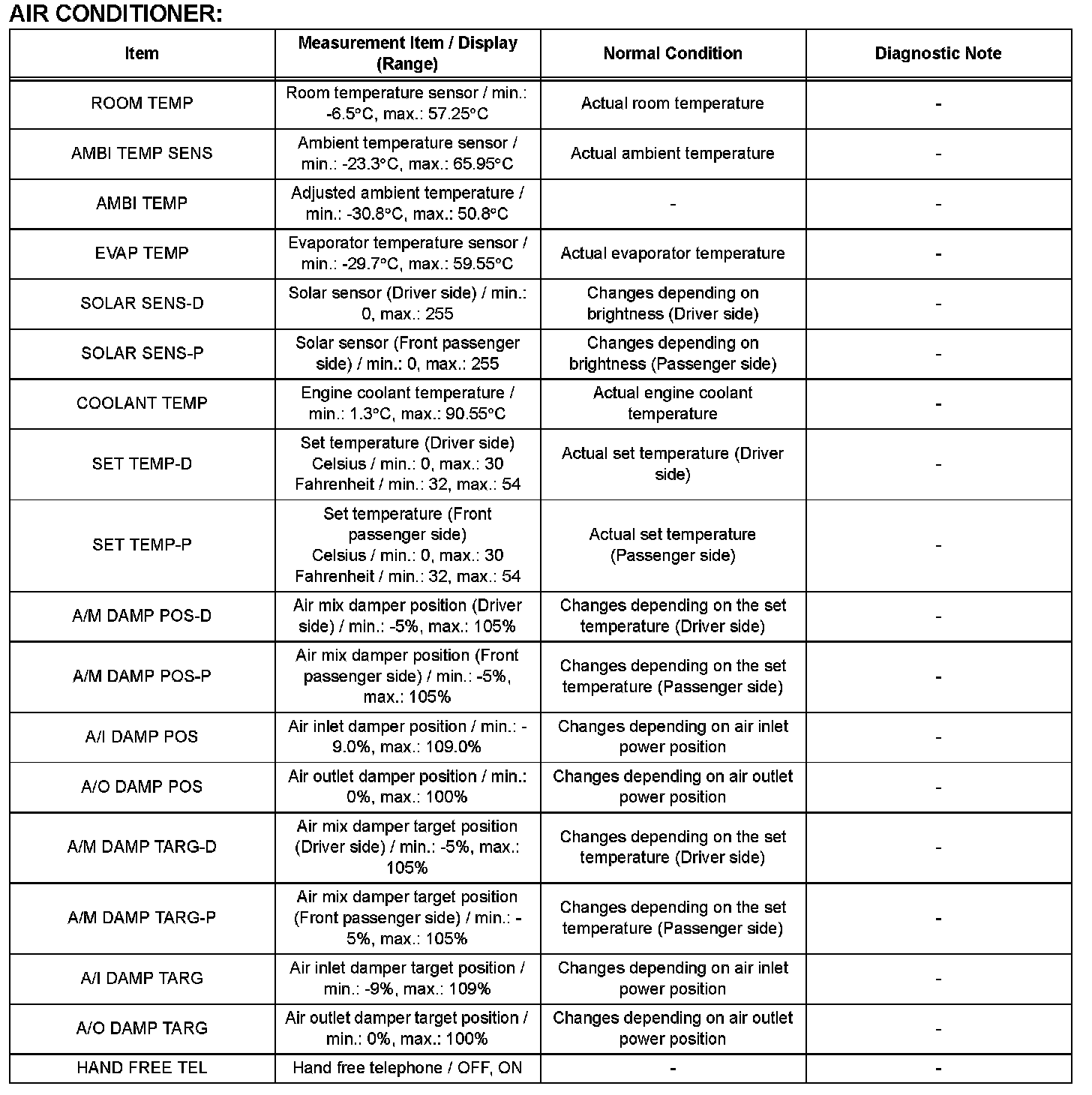

Part 1:

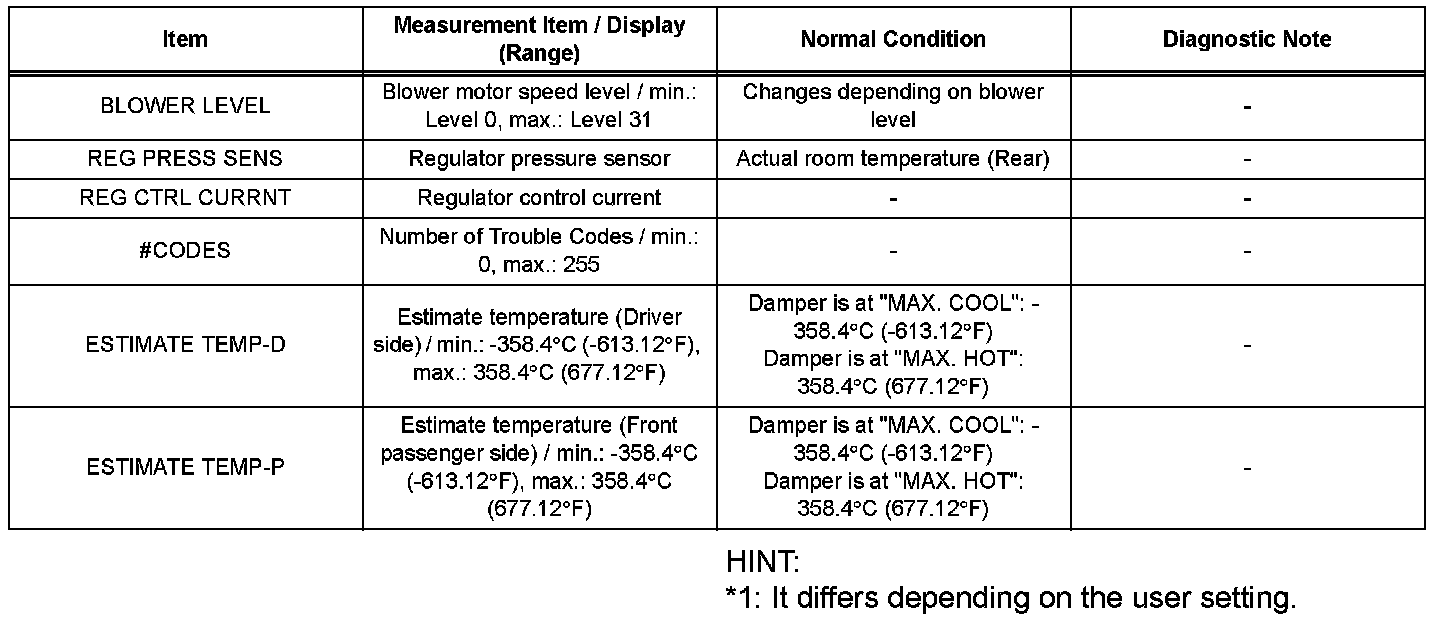

Part 2:




d. Check the value(s) by referring to the table.
