Home >> Lexus >> 2007 >> RX 400h AWD V6-3.3L (3MZ-FE) Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Hybrid Power Control Module >> Technical Service Bulletins >> Recalls >> Recall - Intelligent Power Module Defect/Replacement >> Technical Instructions >> IX. Reassembly

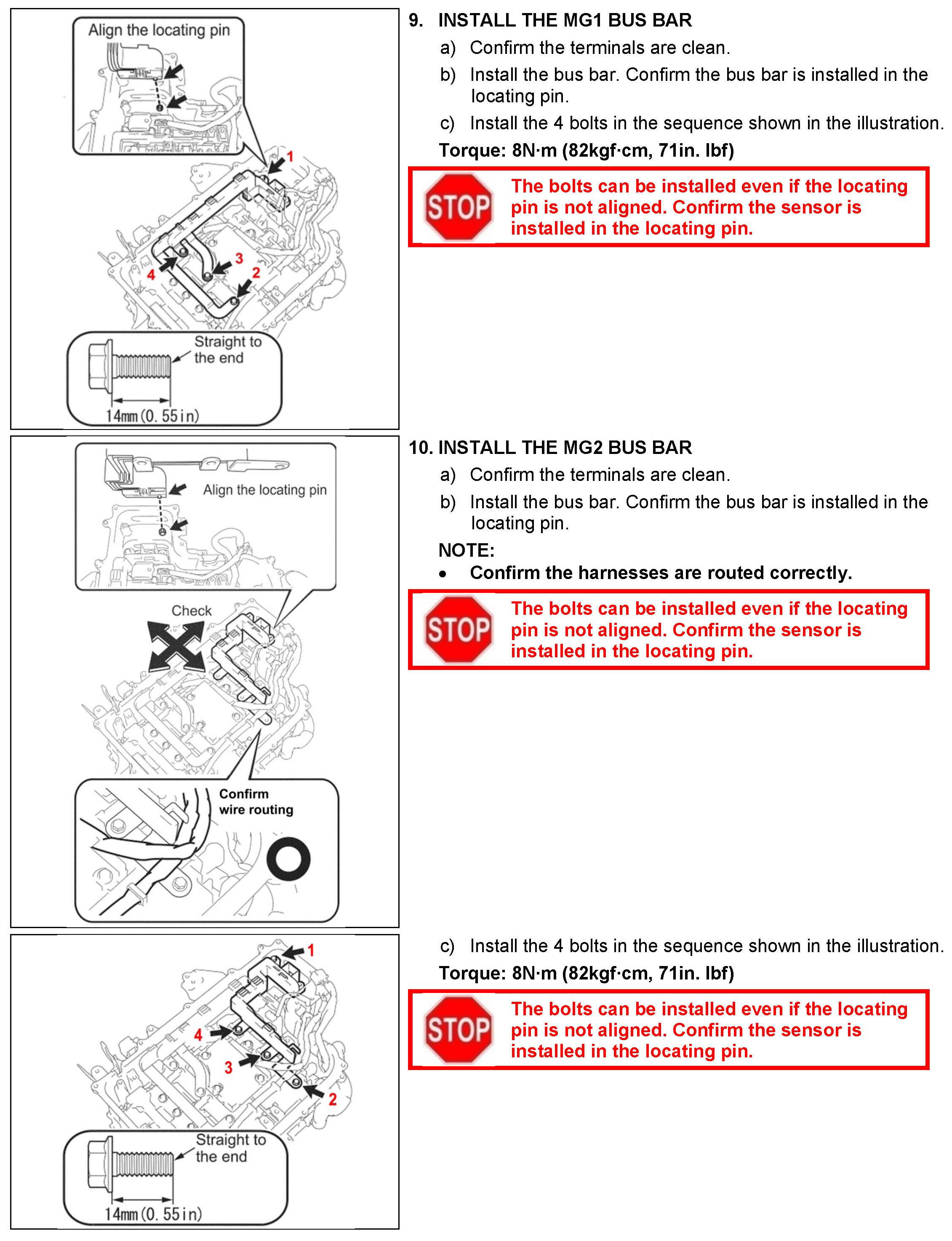

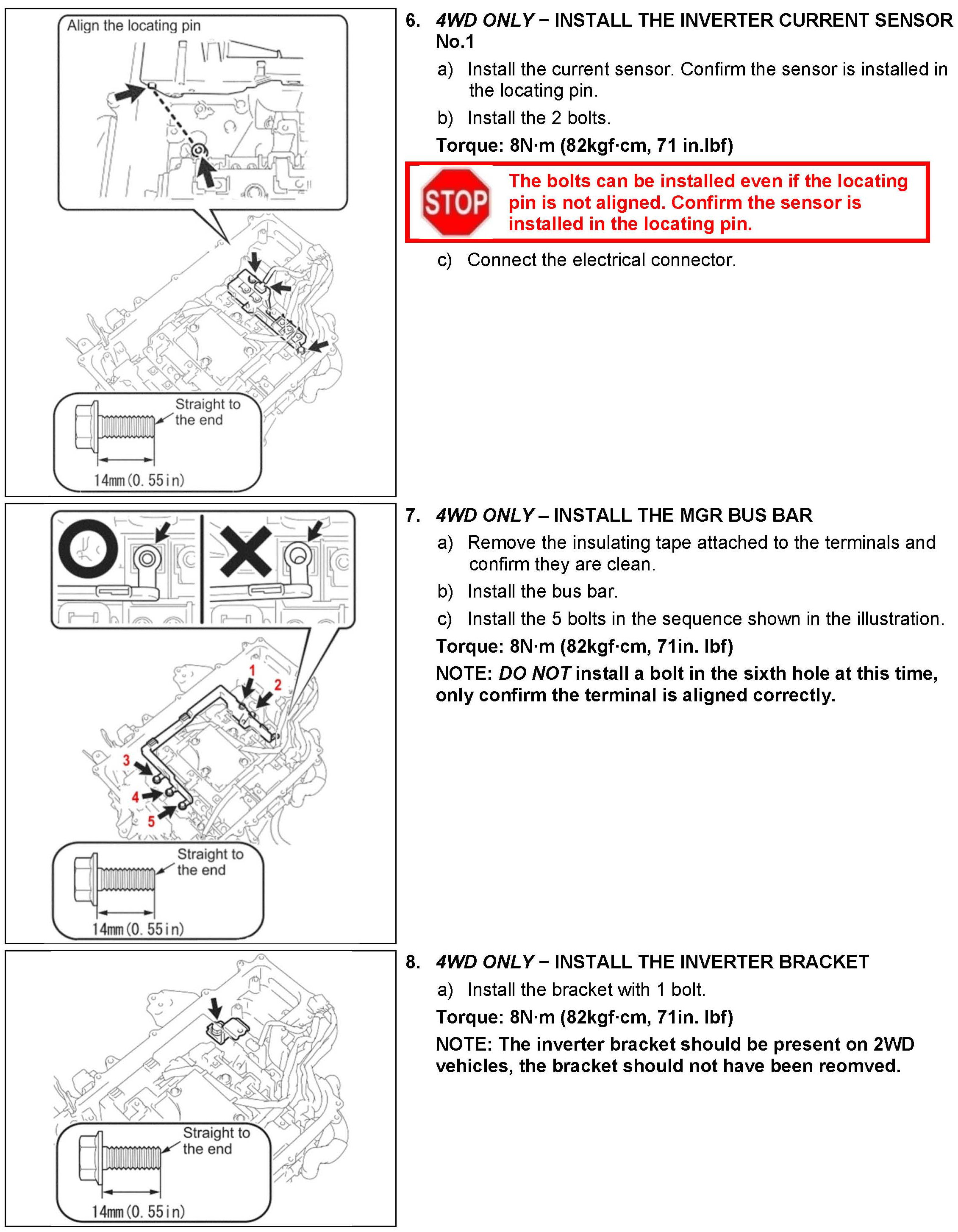

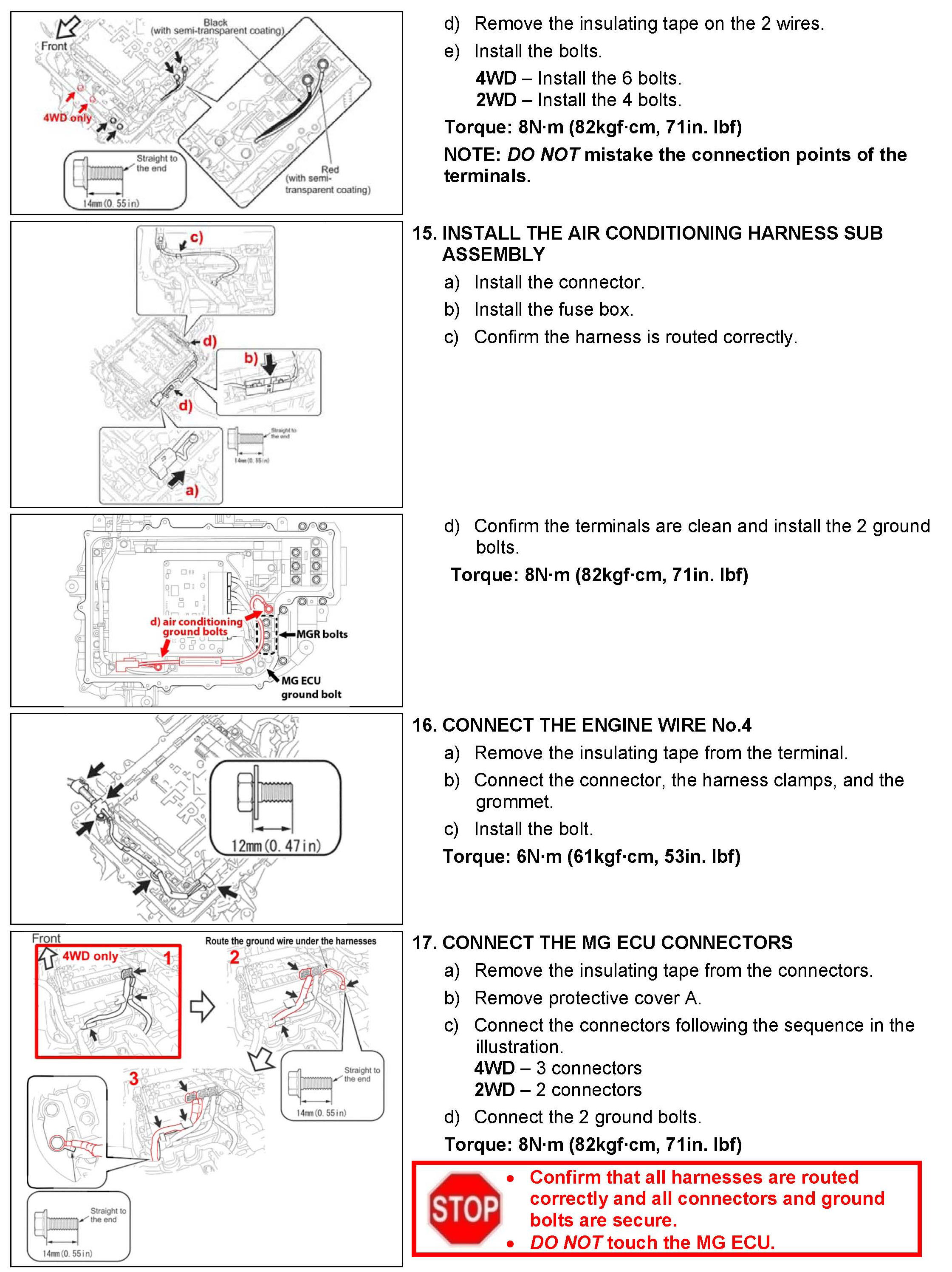

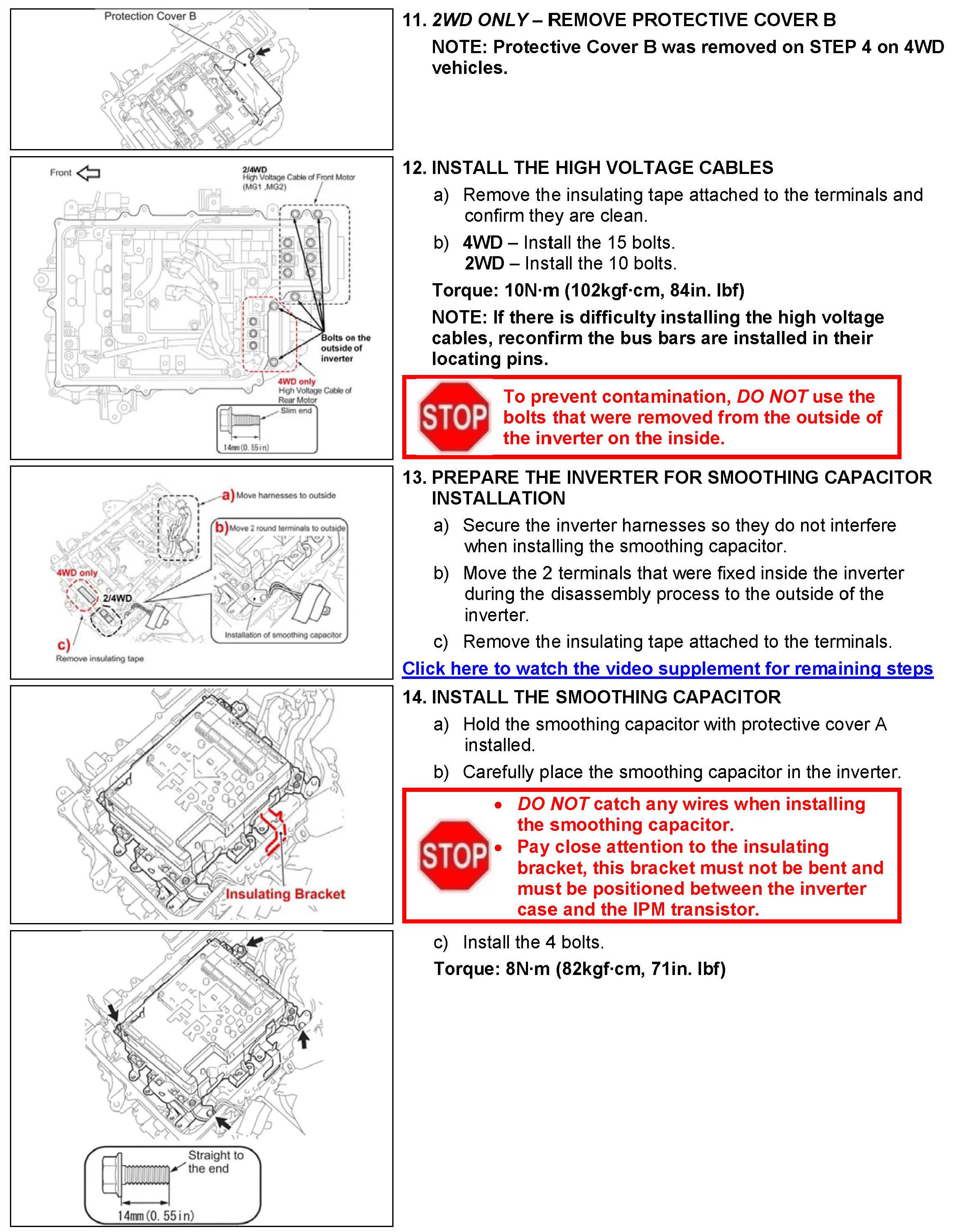

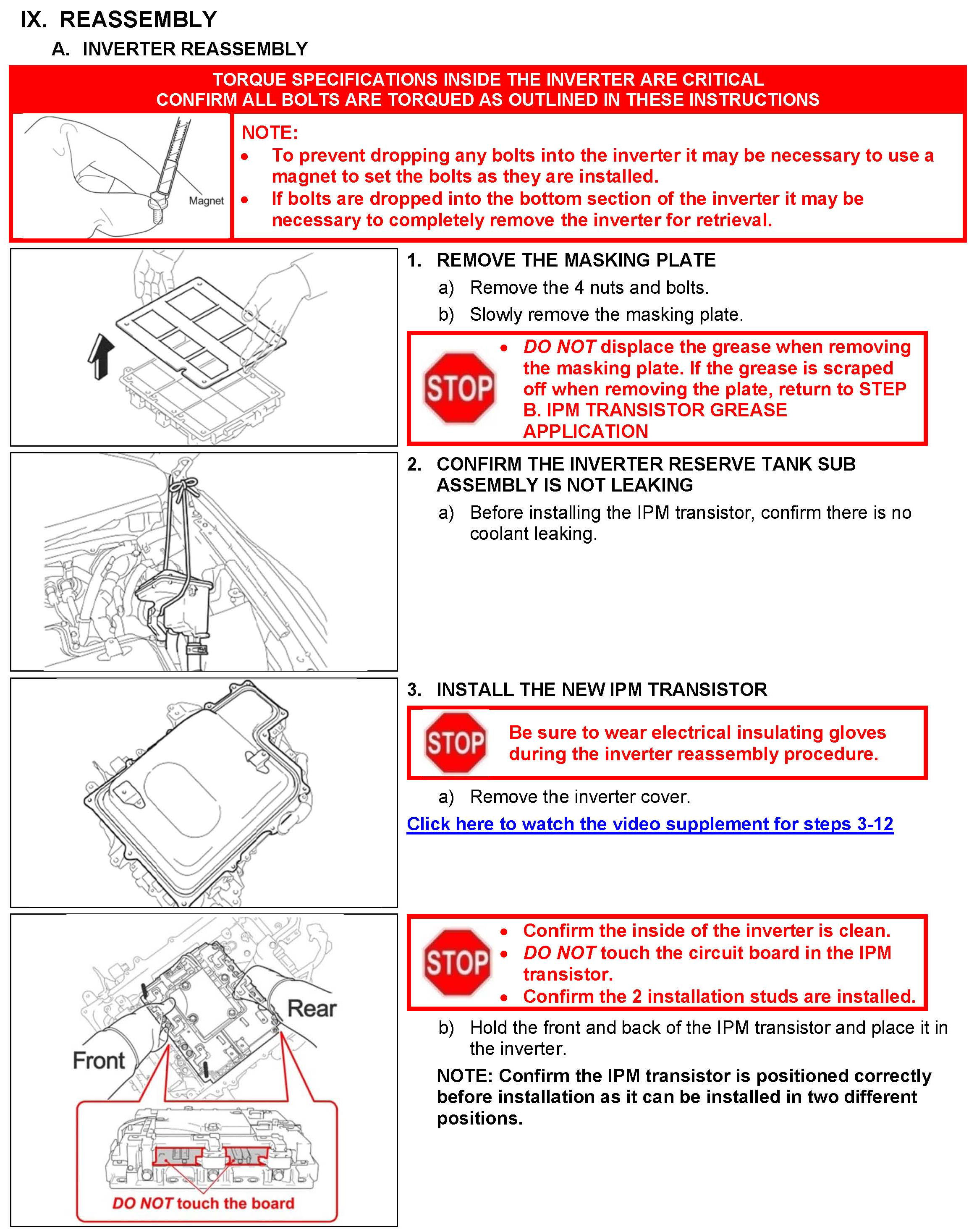

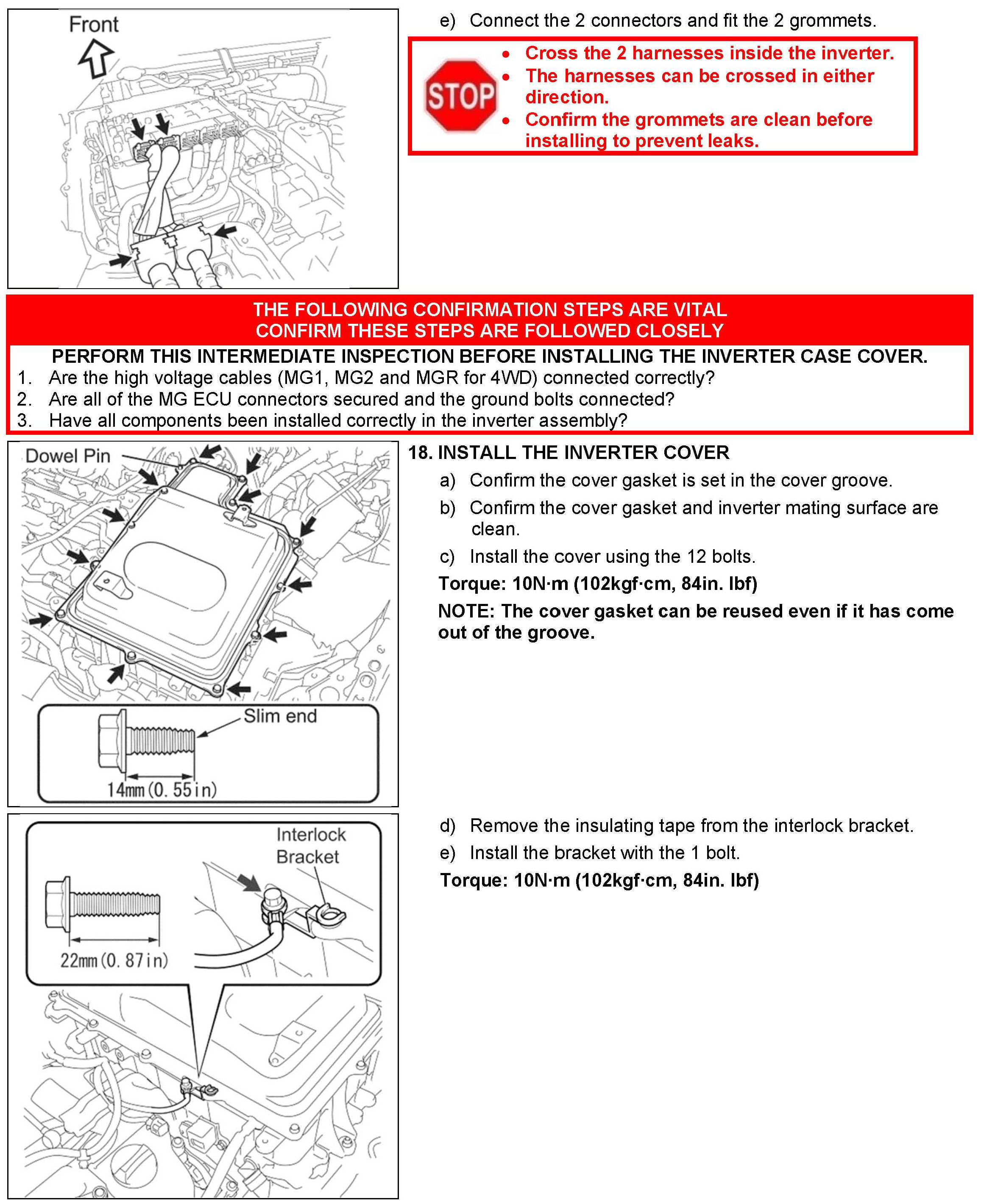

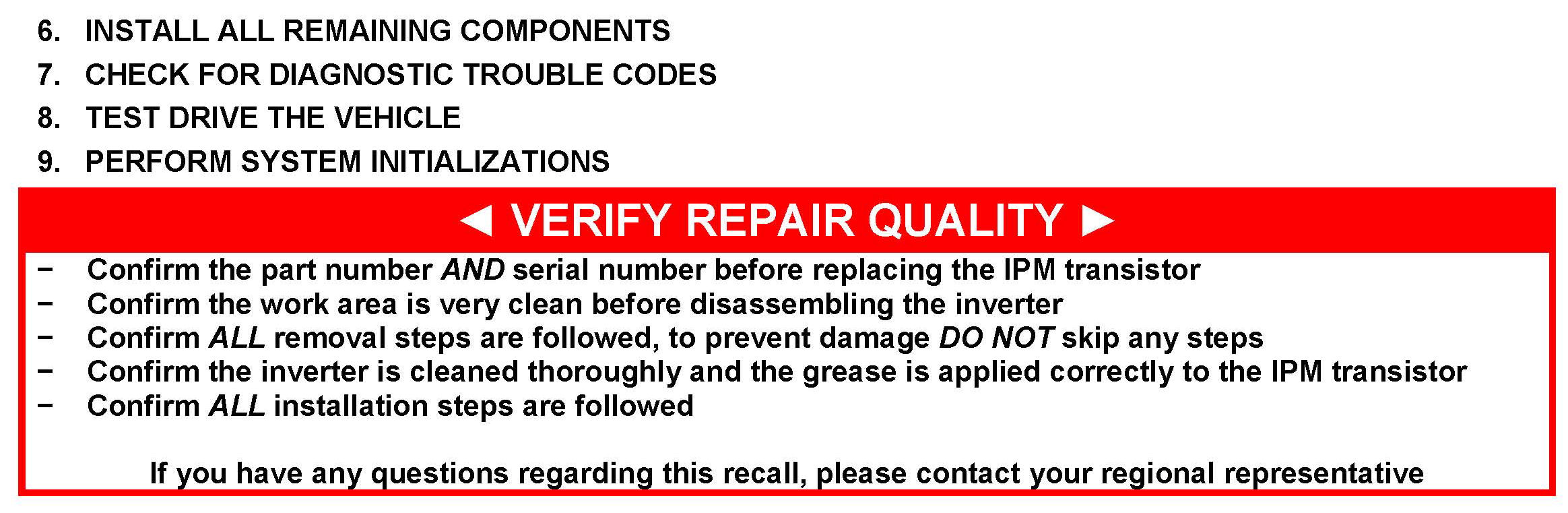

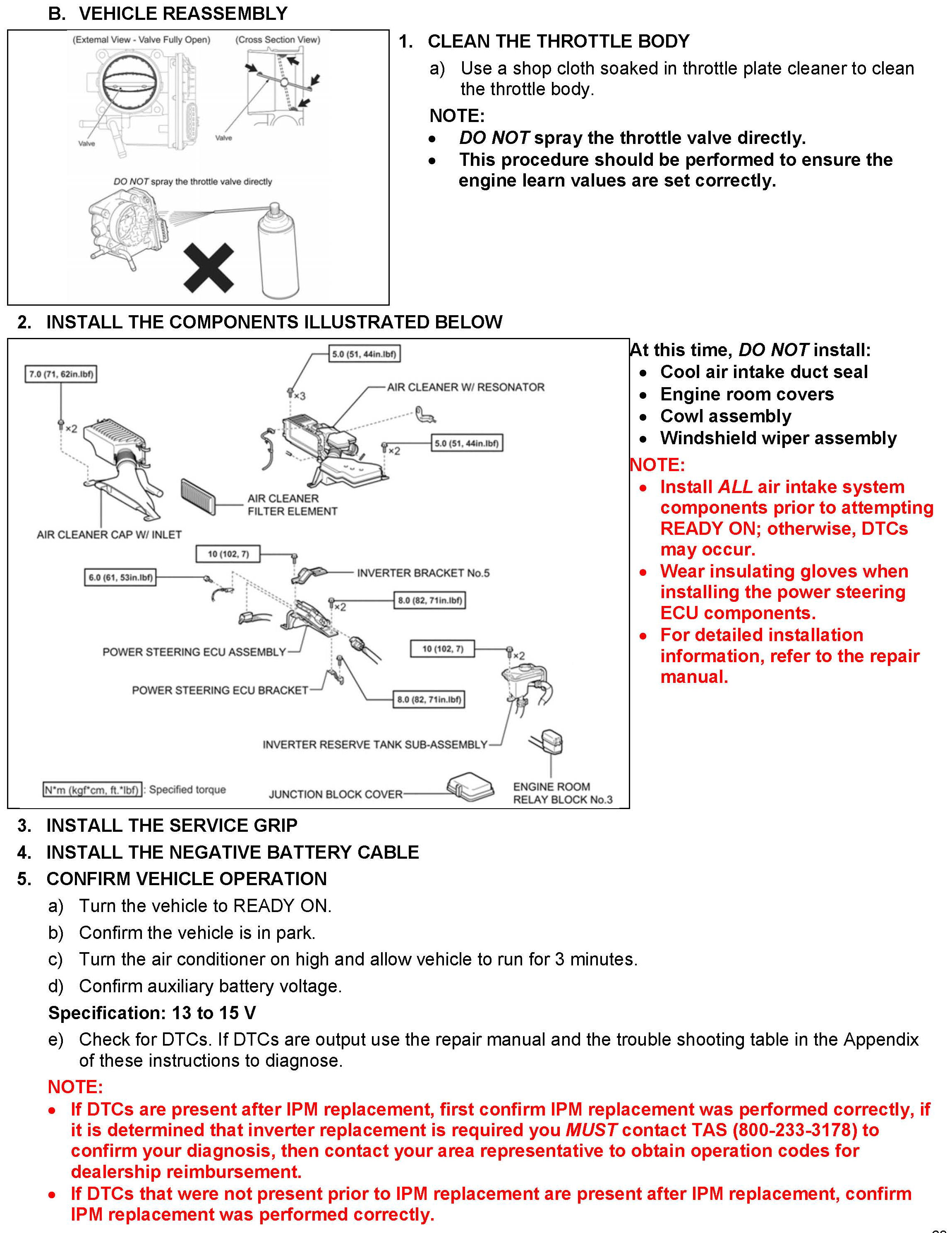

IX. Reassembly
