Information Bus: Locations

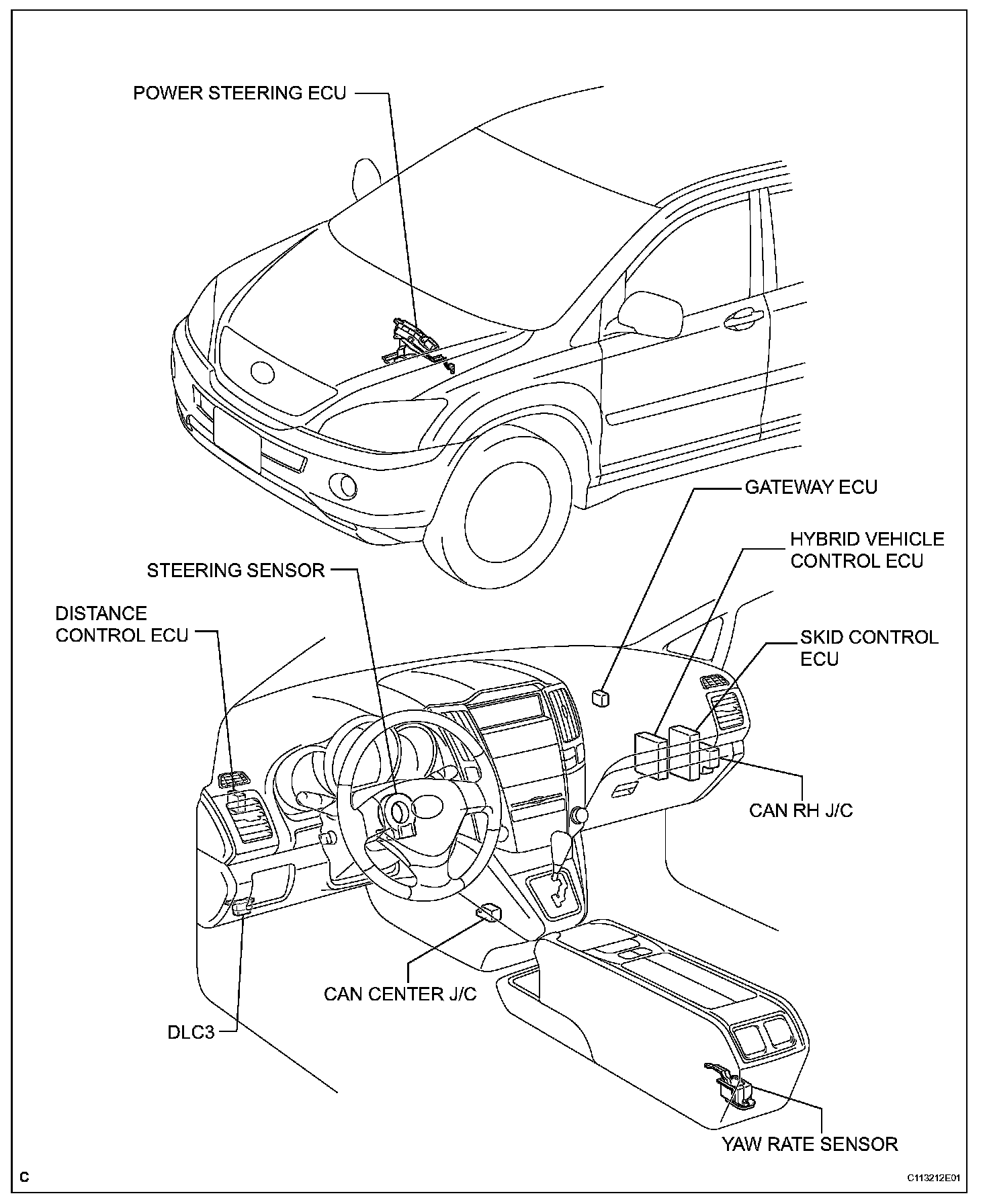

CAN Communication System:



Multiplex Communication System:



Multiplex Communication System:
