Oxygen Sensor Relay: Testing and Inspection

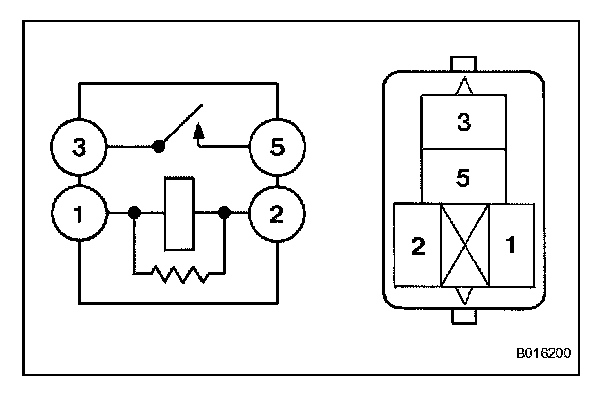

INSPECTION1. INSPECT AIR FUEL RATIO SENSOR RELAY

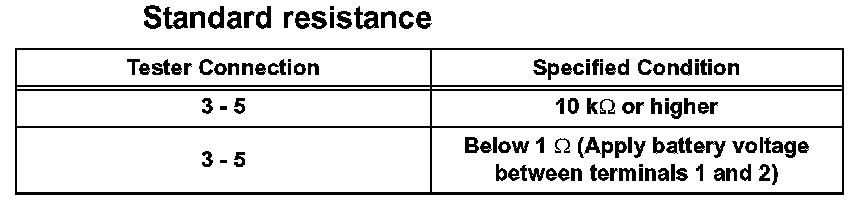

a. Using an ohmmeter, measure the resistance according to the values. in the table.
If the result is not as specified, replace the relay.
1. INSPECT AIR FUEL RATIO SENSOR RELAY
a. Using an ohmmeter, measure the resistance according to the values. in the table.
If the result is not as specified, replace the relay.
