Headlamp Control Module: Service and Repair

AFS ECU:

AFS ECU

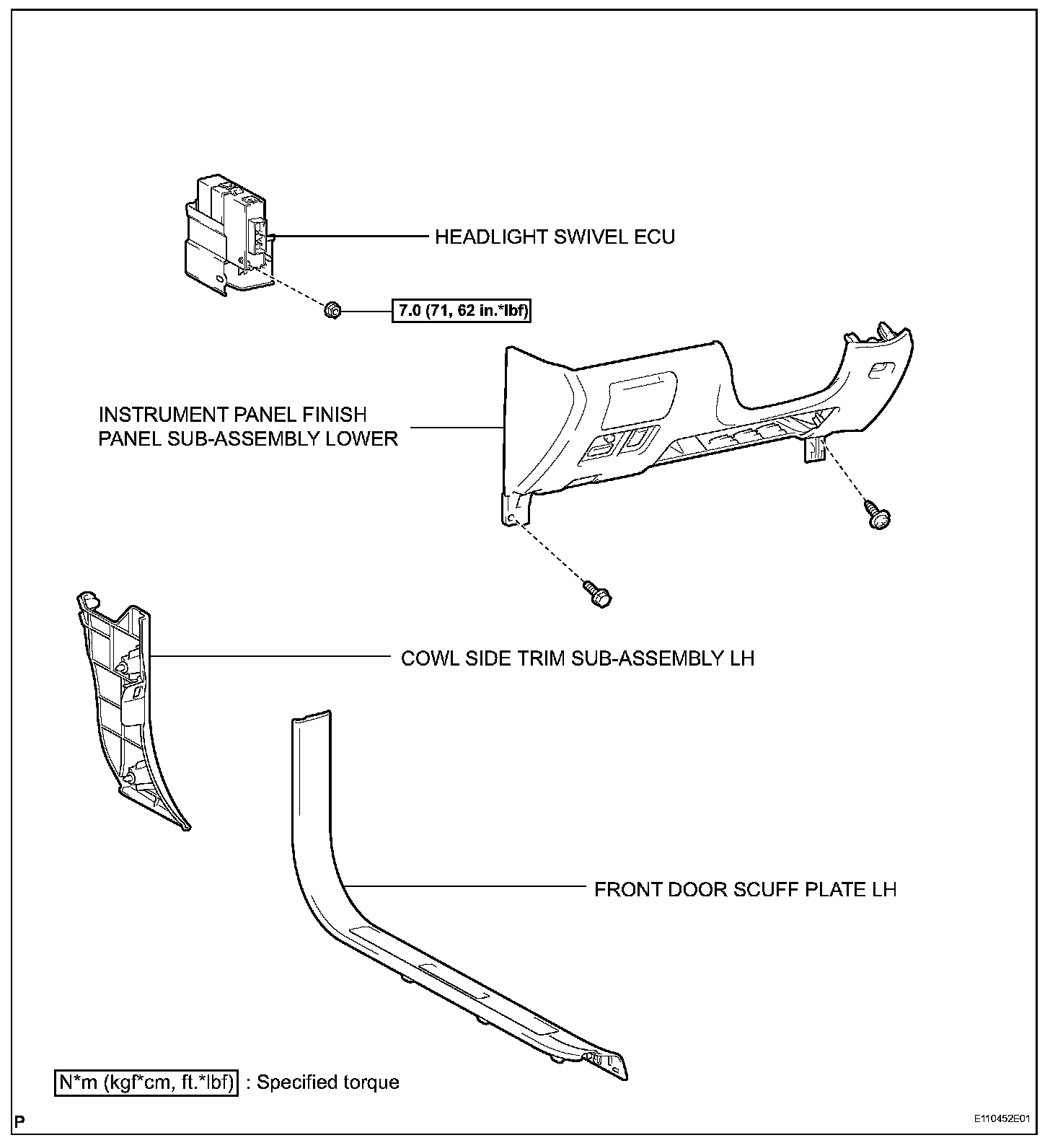

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE LH
3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
4. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER

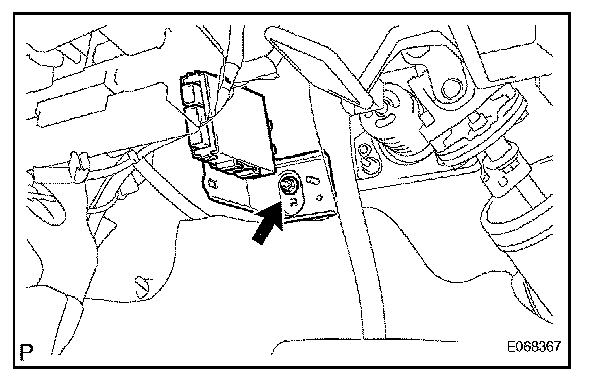

5. REMOVE HEADLIGHT SWIVEL ECU




a. Disconnect the connector.
b. Remove the nut and headlight swivel ECU.

INSTALLATION

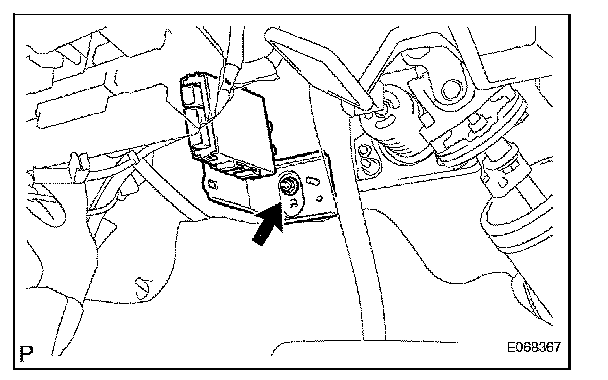

1. INSTALL HEADLIGHT SWIVEL ECU




a. Install the headlight swivel ECU with the nut.

Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)

b. Connect the connector.

2. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER
3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
4. INSTALL FRONT DOOR SCUFF PLATE LH
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
