Ignition Switch: Testing and Inspection
IGNITION SWITCHINSPECTION

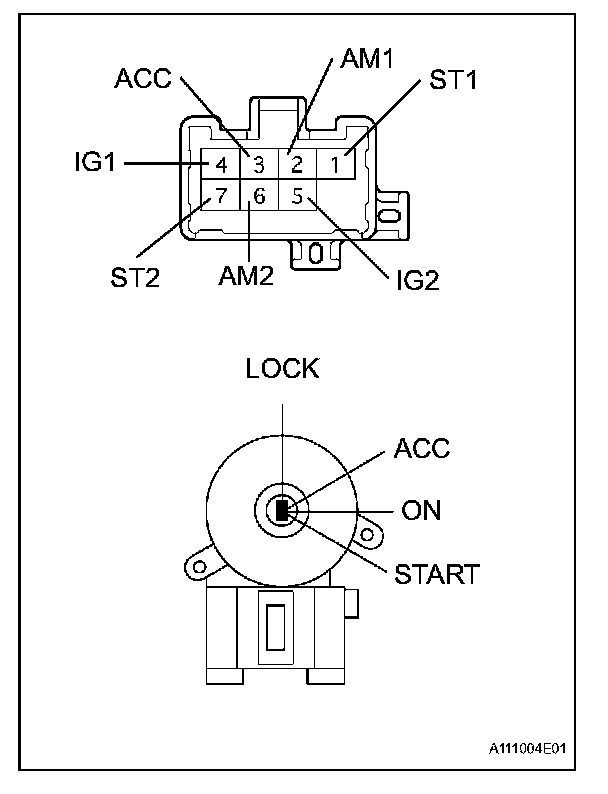

1. INSPECT IGNITION SWITCH

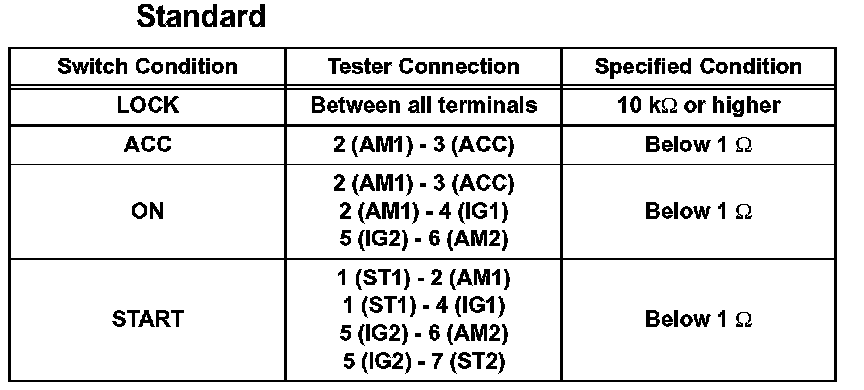

a. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the ignition switch.
INSPECTION
1. INSPECT IGNITION SWITCH
a. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the ignition switch.
