Engine Immobilizer System

DIAGNOSIS SYSTEM

1. DESCRIPTION
a. The transponder key ECU controls the vehicle's immobilizer system functions. Immobilizer system data and Diagnostic Trouble Codes (DTCs) can be read using the intelligent tester after it is attached to the Data Link Connector 3 (DLC3). In some cases, a malfunction may be occurring in the immobilizer system even though the security indicator light is not illuminated.

If the system seems to be malfunctioning, use the intelligent tester to inspect the operation of the system before performing repairs.

2. CHECK DLC3

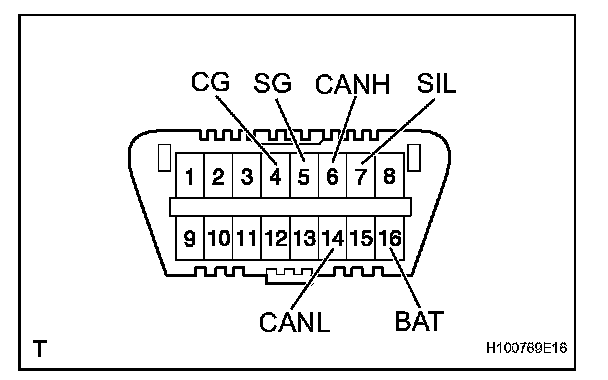

a. The vehicle's ECU uses ISO 15765-4 for communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.

If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.




b. Connect the cable of the intelligent tester (with CAN VIM) to the DLC3, turn the ignition switch to the ON position and attempt to use the intelligent tester. If the screen displays a communication error message, a problem exists in the vehicle side of the tester side.

HINT:
- If communication is normal when the tool is connected to another vehicle, inspect the DLC3 on the original vehicle.
- If communication is still impossible when the tool is connected to another vehicle, the problem is probably in the tool itself. Consult the Service Department listed in the tool's instruction manual.
