Audio System Except MARK LEVINSON

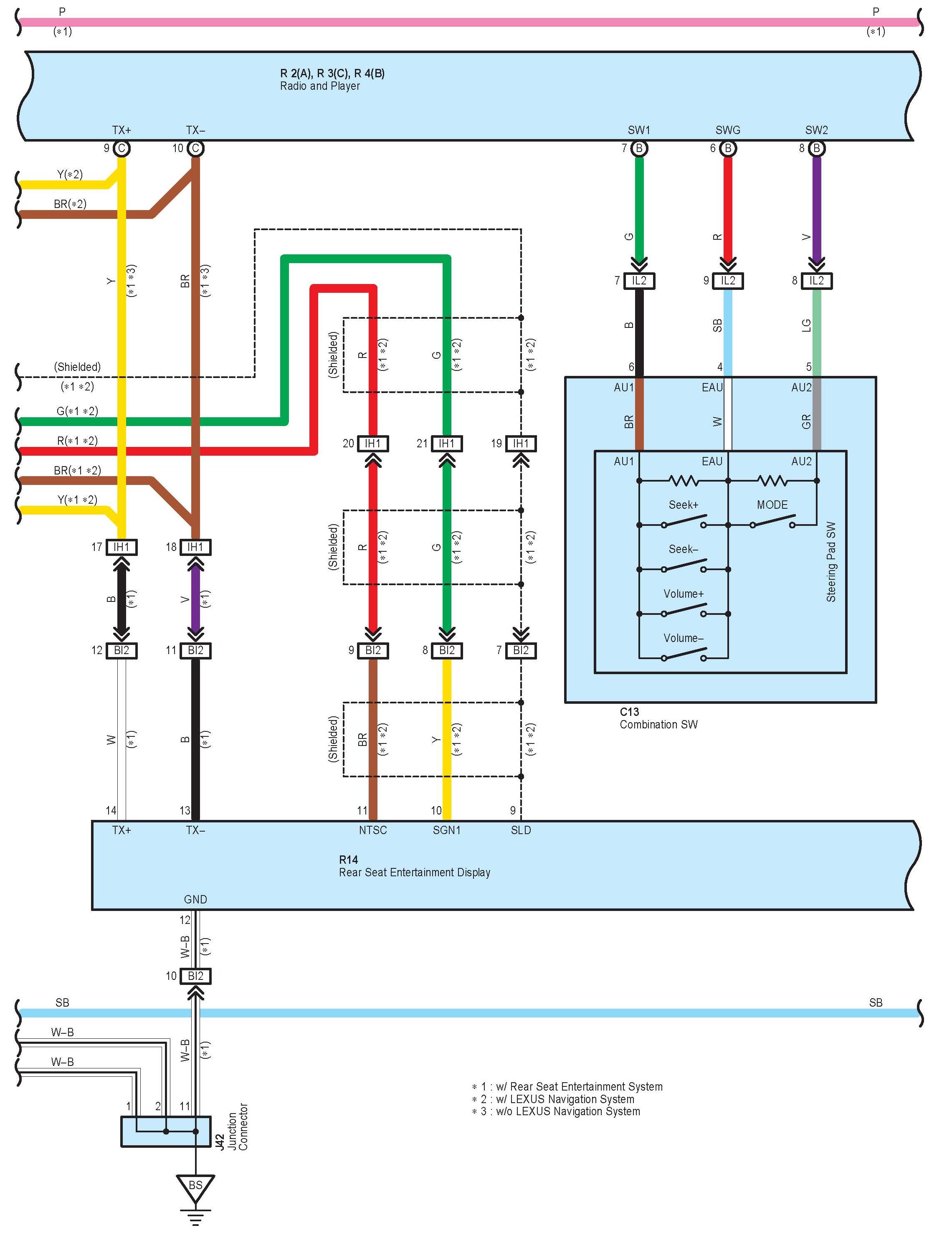

Audio System Except MARK LEVINSON Part 1:

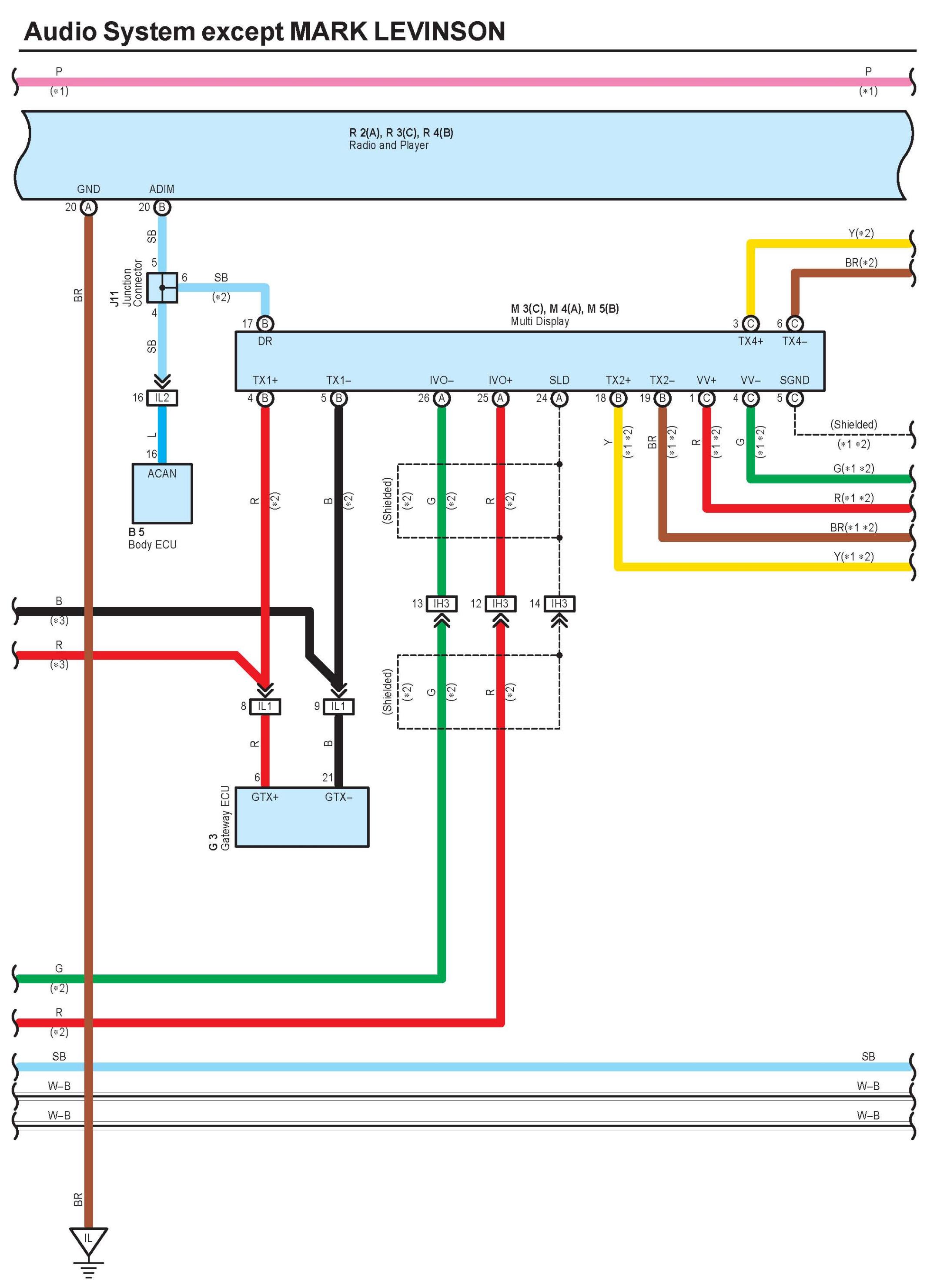

Audio System Except MARK LEVINSON Part 2:

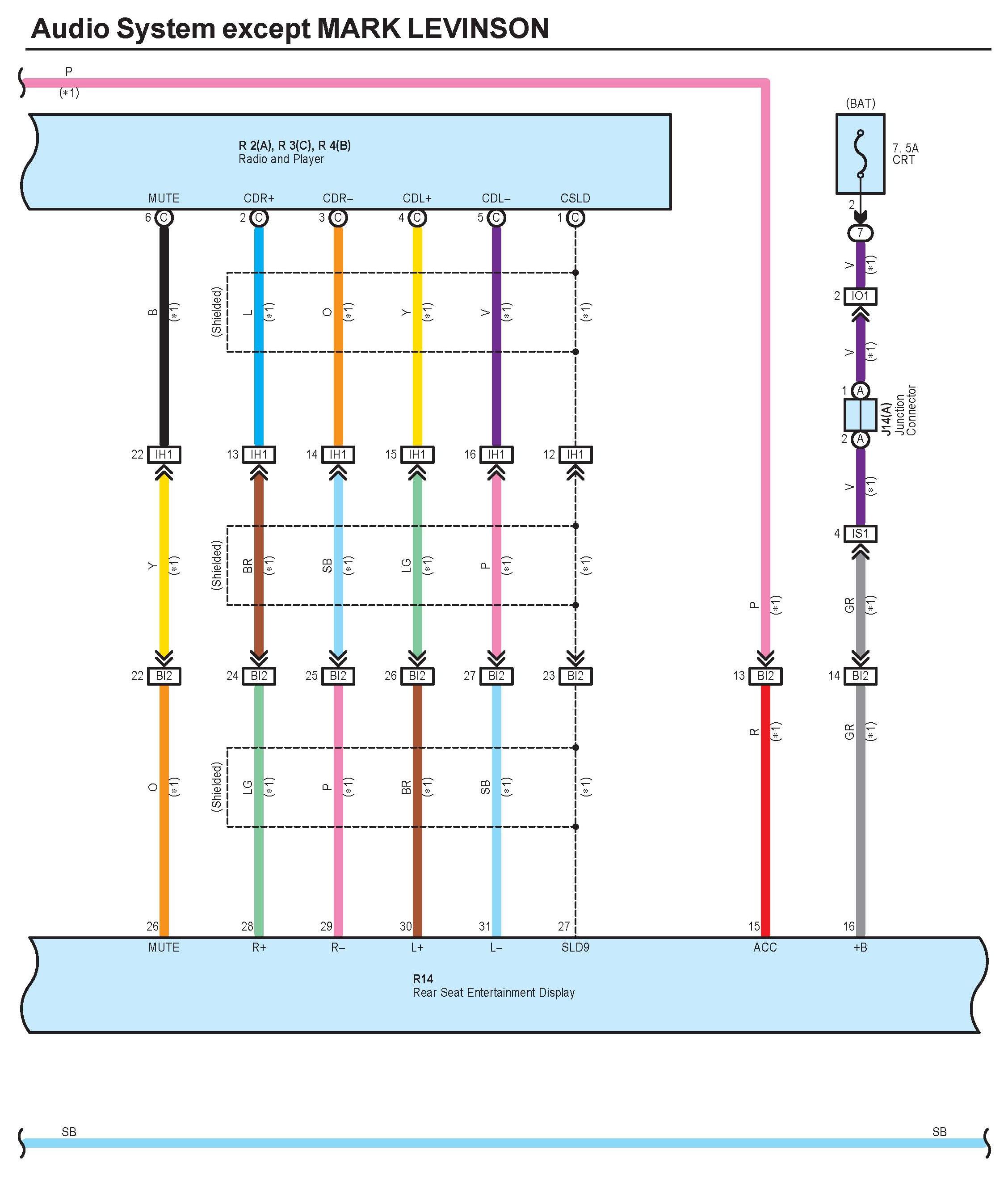

Audio System Except MARK LEVINSON Part 3:

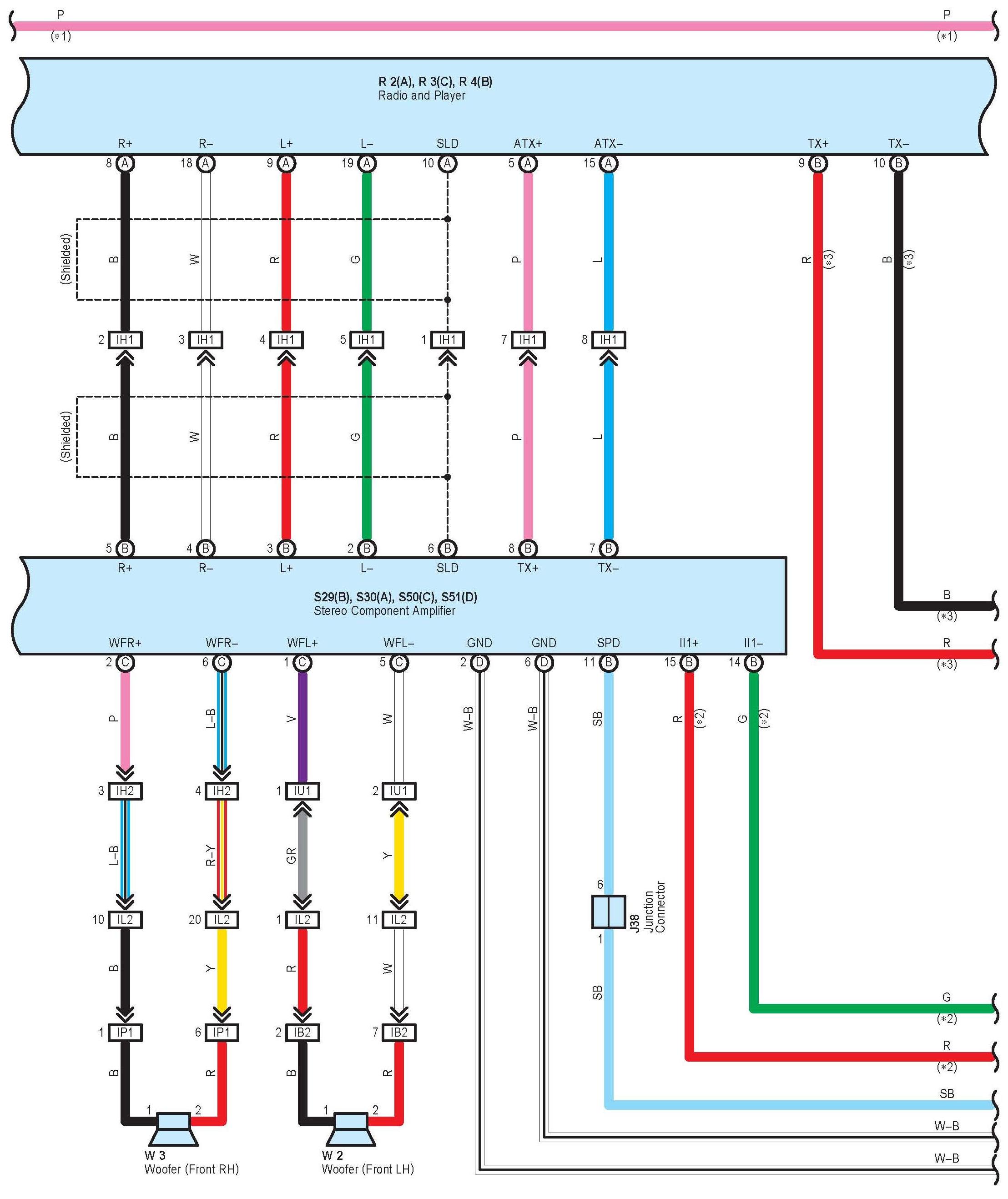

Audio System Except MARK LEVINSON Part 4:

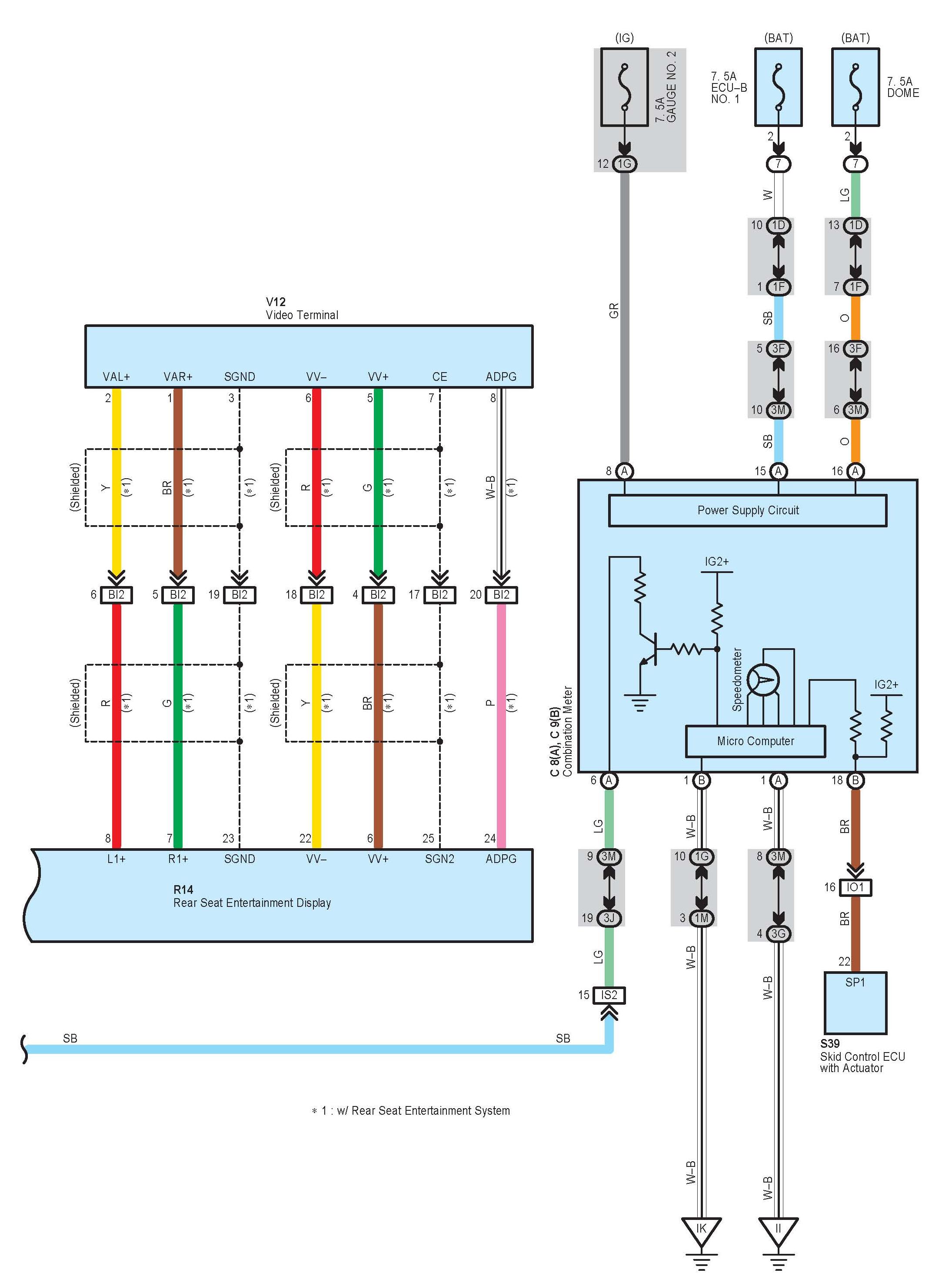

Audio System Except MARK LEVINSON Part 5:

Audio System Except MARK LEVINSON Part 6:

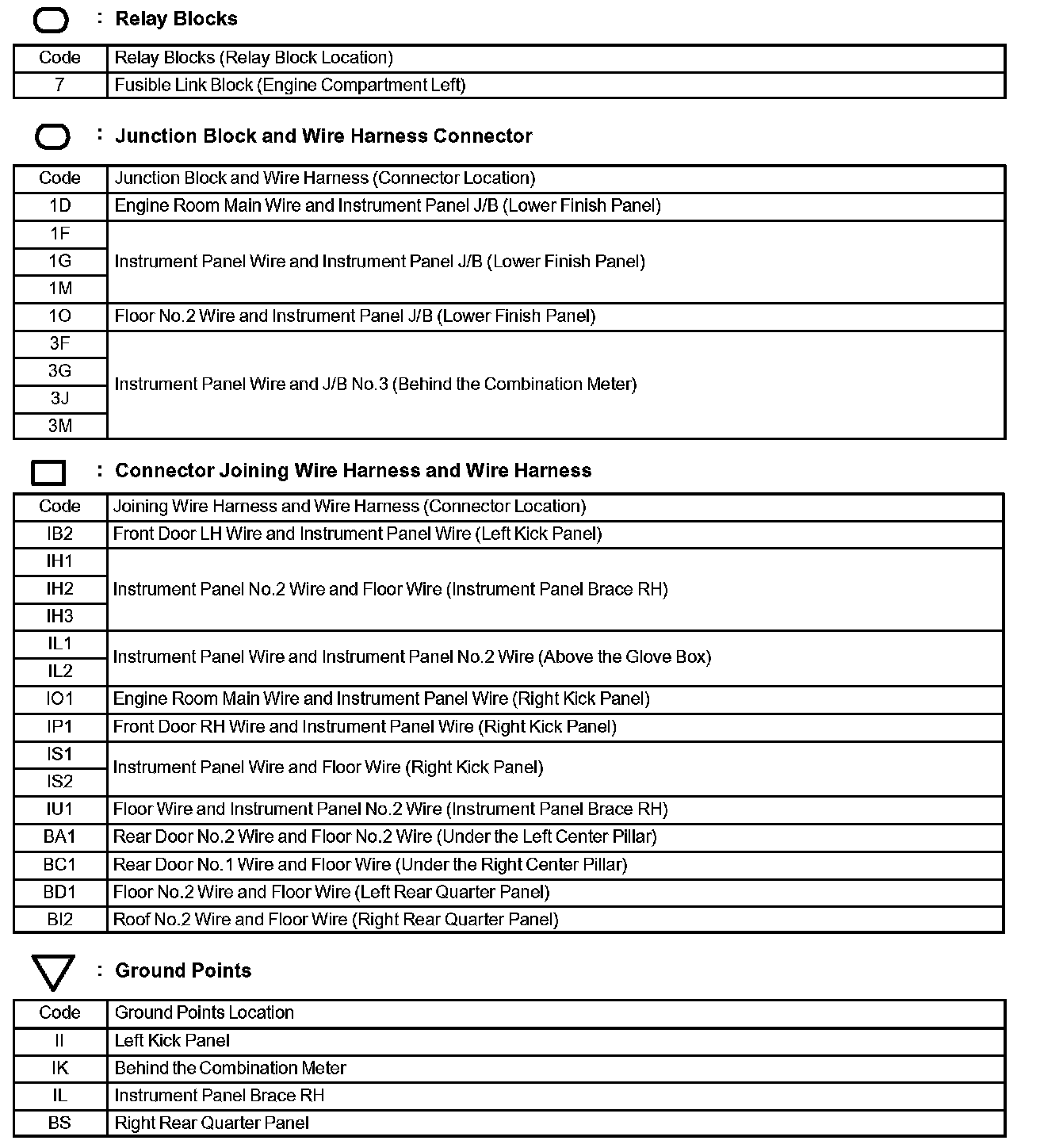

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
