Back-Up Lamp Circuit

Back-up Light Circuit

DESCRIPTION

The HV control ECU receives shift position R signal and controls the back-up light relay. The back-up light relay installed in the power distributor.

System diagram of the power distributor.
System description of the power distributor.

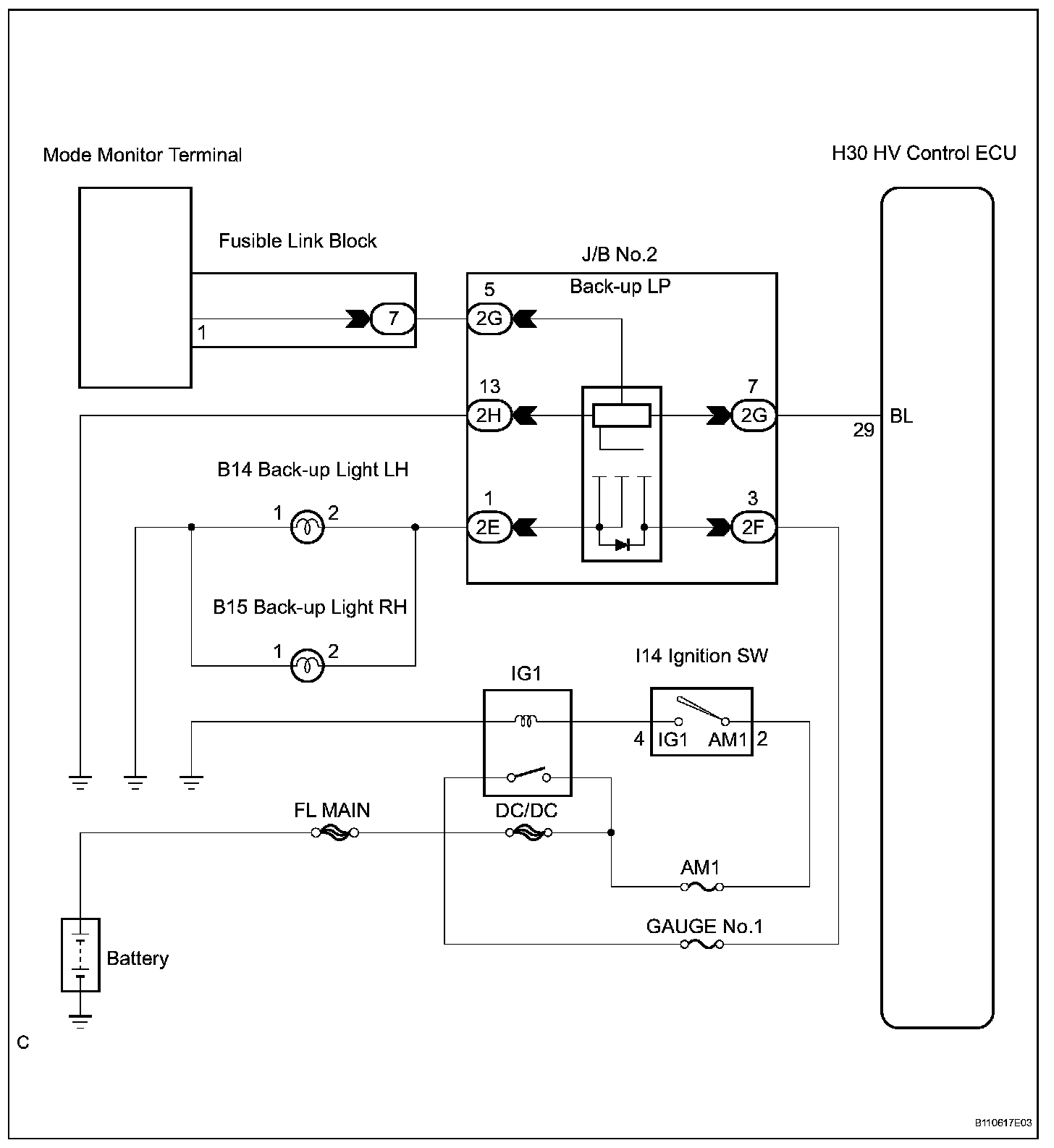

Wiring Diagram:

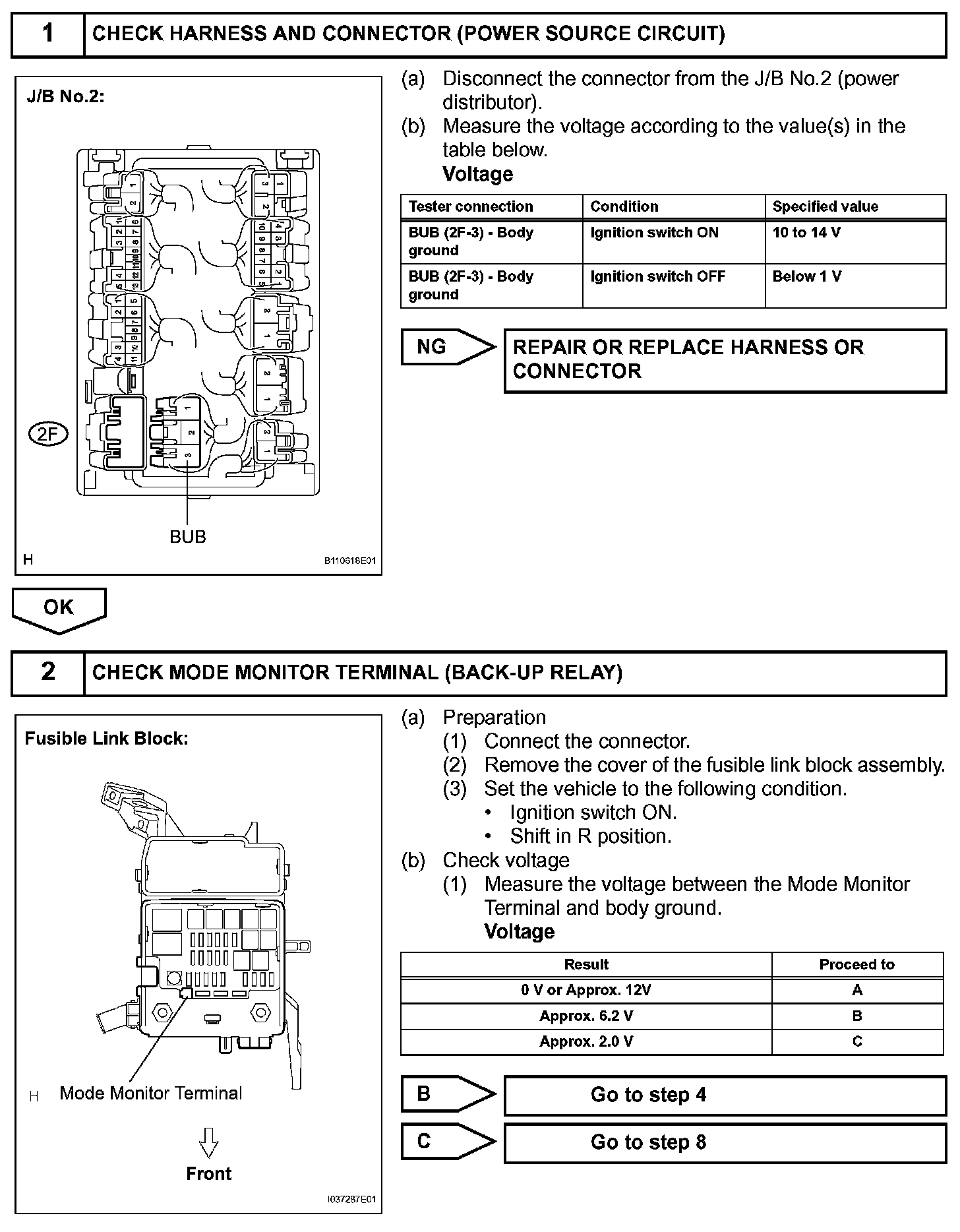

Step 1-2:

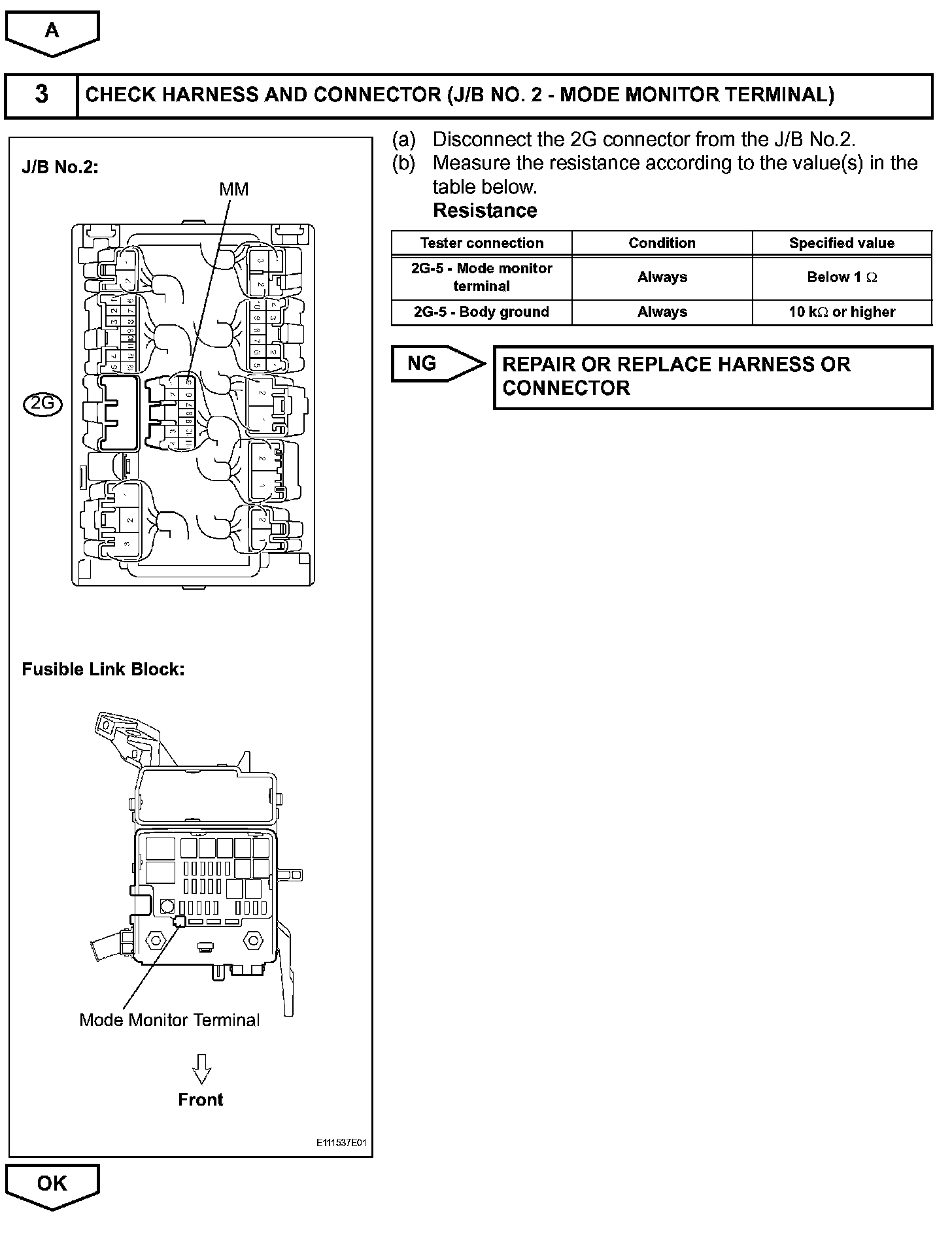

Step 2 (Continued)-3:

Step 4:

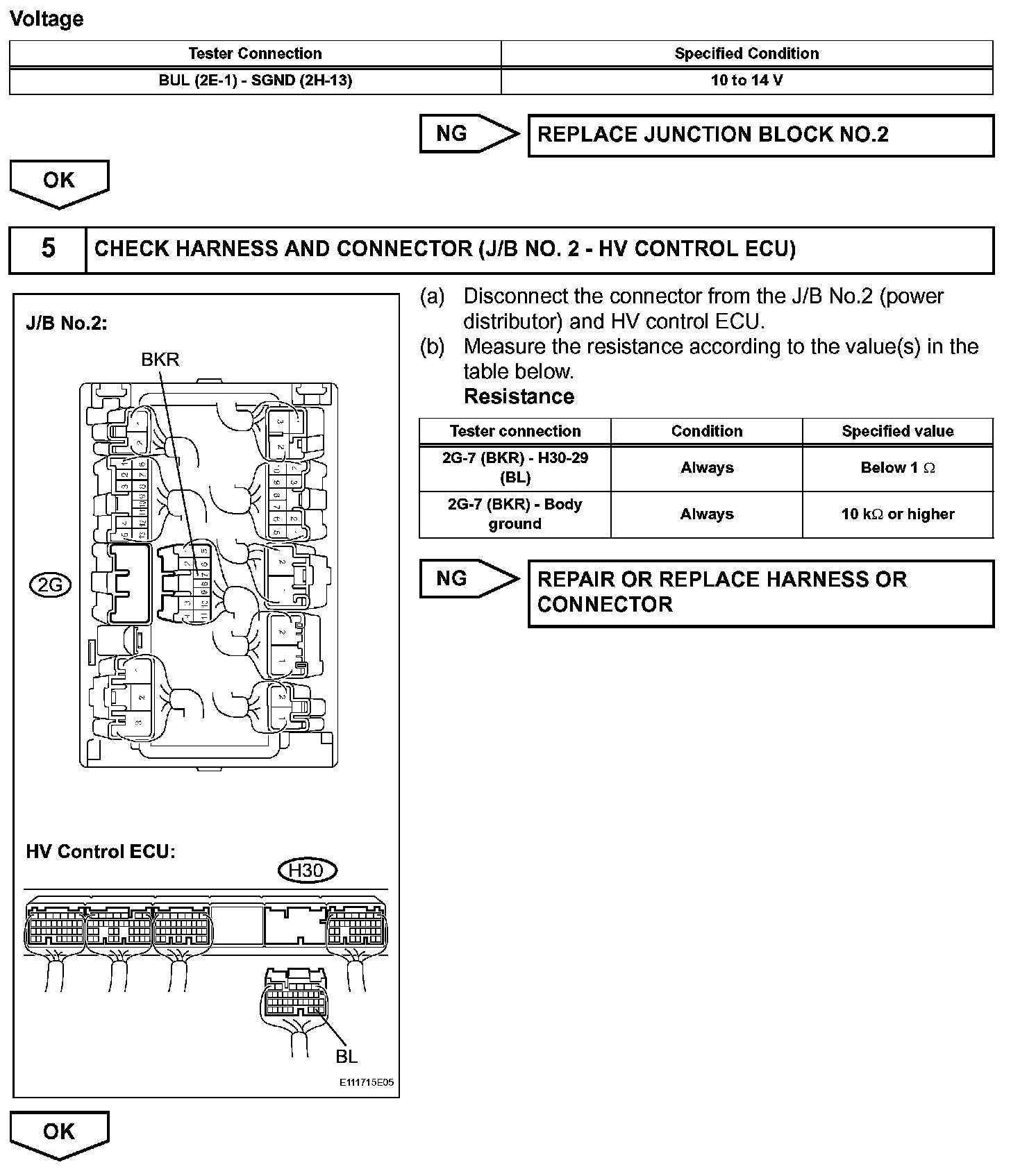

Step 4 (Continued)-5:

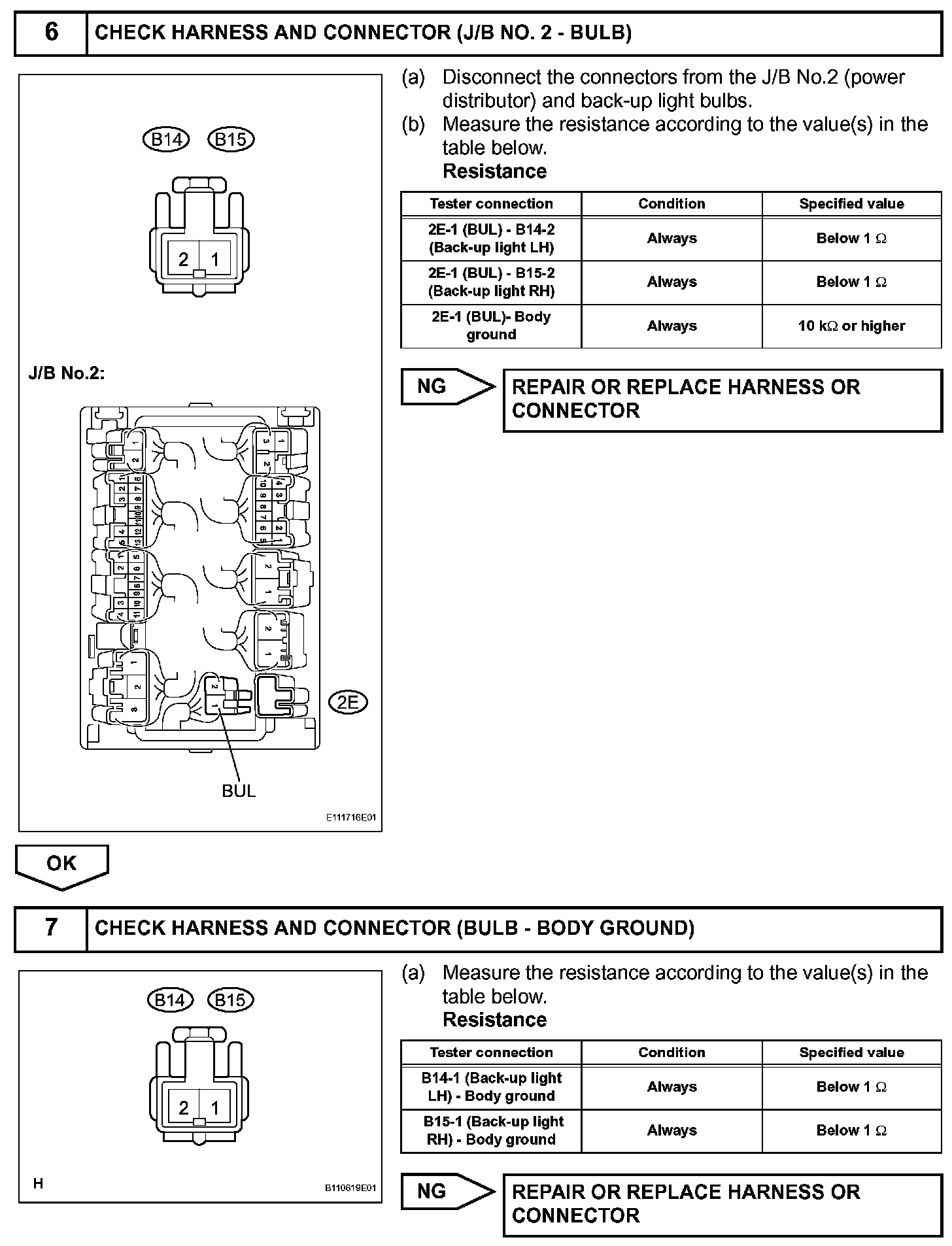

Step 6-7:

Step 7 (Continued)-8:

INSPECTION PROCEDURE
