Headlight Cleaner Motor and Relay Circuit
Headlight Cleaner Motor and Relay CircuitDESCRIPTION
This circuit provides the headlight cleaner control relay with the power circuit.
The headlight cleaner control relay sends the signal to operate from the switch, etc., to the headlight cleaner motor and pump assembly.

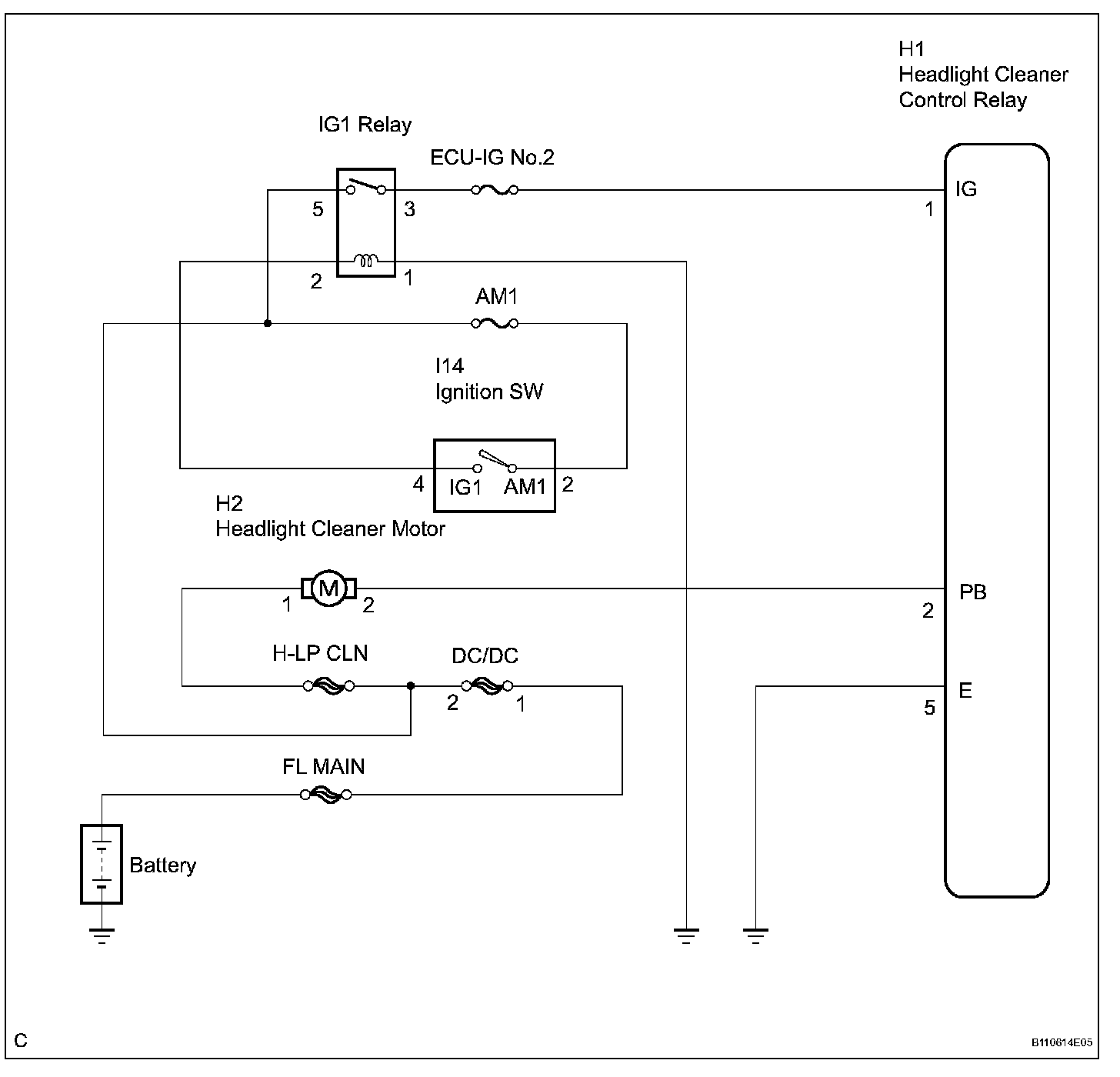

Wiring Diagram:
Step 1-3:

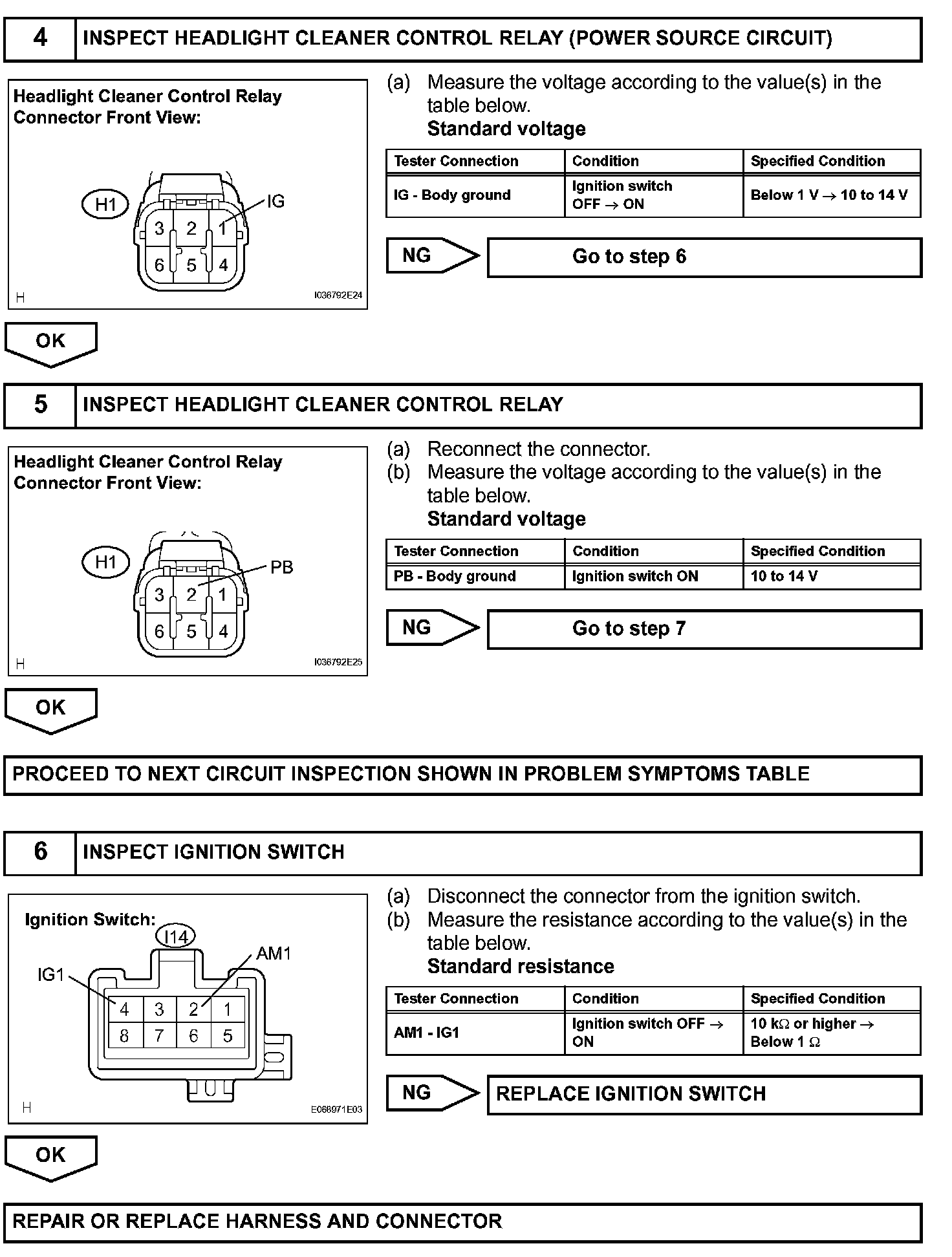

Step 4-6:

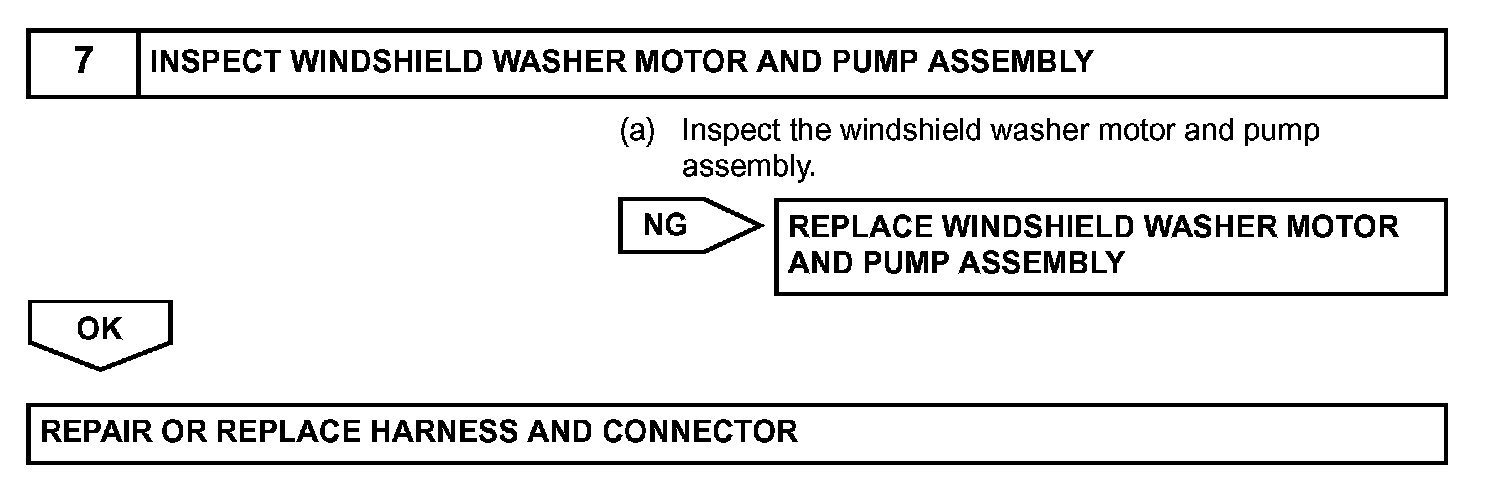

Step 7:
INSPECTION PROCEDURE
