B0101

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B0101/14: Open in Driver Side Squib Circuit

DTC B0101/14 - Open in Driver Side Squib Circuit

DESCRIPTION

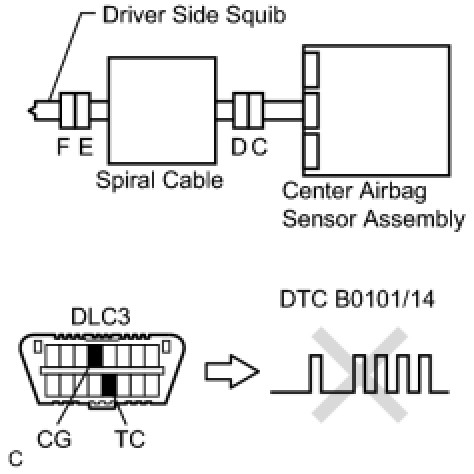

The driver side squib circuit consists of the center airbag sensor assembly, the spiral cable and the steering pad.
The circuit instructs the SRS to deploy when deployment conditions are met.

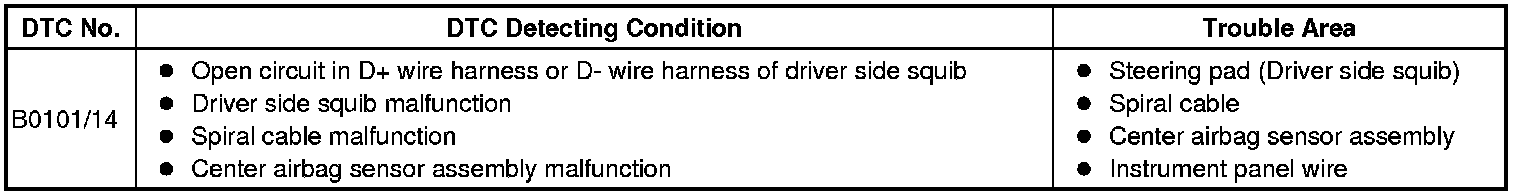

DTC B0101/14 is recorded when an open circuit is detected in the driver side squib circuit.






WIRING DIAGRAM





INSPECTION PROCEDURE
HINT:
- Perform the simulation method by selecting the "check mode" (signal check) with the Techstream Check Mode Procedure.
- After selecting the "check mode" (signal check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on a city or rough road Check Mode Procedure.

PROCEDURE

1. CHECK STEERING PAD (DRIVER SIDE SQUIB)





(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the steering pad.
(d) Connect the white wire side of SST (resistance 2.1 Ohms) to the spiral cable.
CAUTION: Never connect a tester to the steering pad (driver side squib) for measurement, as this may lead to a serious injury due to airbag deployment.
NOTE: Do not forcibly insert the SST into the terminals of the connector when connecting.

Insert the SST straight into the terminals of the connector.
SST: 09843-18060
(e) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(g) Clear the DTCs stored in memory DTC Check / Clear.
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(j) Check the DTCs DTC Check / Clear.
OK:
DTC B0101/14 is not output.
HINT: Codes other than DTC B0101/14 may be output at this time, but they are not related to this check.

NG -- CHECK DRIVER SIDE SQUIB CIRCUIT
OK -- REPLACE STEERING PAD
2. CHECK DRIVER SIDE SQUIB CIRCUIT





(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative(-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the SST (resistance 2.1 Ohms) from the spiral cable.
(d) Disconnect the connector from the center airbag sensor assembly.
(e) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- CHECK INSTRUMENT PANEL WIRE
OK -- Continue to next step.
3. CHECK CENTER AIRBAG SENSOR ASSEMBLY





(a) Connect the connectors to the steering pad and the center airbag sensor assembly.
(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(d) Clear the DTCs stored in memory DTC Check / Clear.
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at least 60 seconds.
(g) Check the DTCs DTC Check / Clear.
OK:
DTC B0101/14 is not output.
HINT: Codes other than code B0101/14 may be output at this time, but they are not related to this check.

NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
OK -- USE SIMULATION METHOD TO CHECK
4. CHECK INSTRUMENT PANEL WIRE





(a) Disconnect the instrument panel wire connector from the spiral cable.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK -- Continue to next step.
5. CHECK SPIRAL CABLE





(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPLACE SPIRAL CABLE
OK -- USE SIMULATION METHOD TO CHECK
