Reassembly
AIR CONDITIONING PANEL: REASSEMBLYREASSEMBLY 1.
INSTALL HEATER CONTROL KNOB (w/o Navigation System)
2.
INSTALL AIR CONDITIONING CONTROL BULB (w/o Navigation System)
3.
INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY (w/o Navigation System)
(a)
Install the 2 screws and the air conditioning amplifier.
(b)

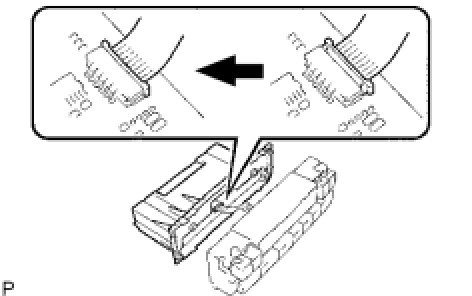

Connect the cable and connector.
(c)
Install the heater control housing with the 6 screws and the 4 claws.
