Transmission Unit

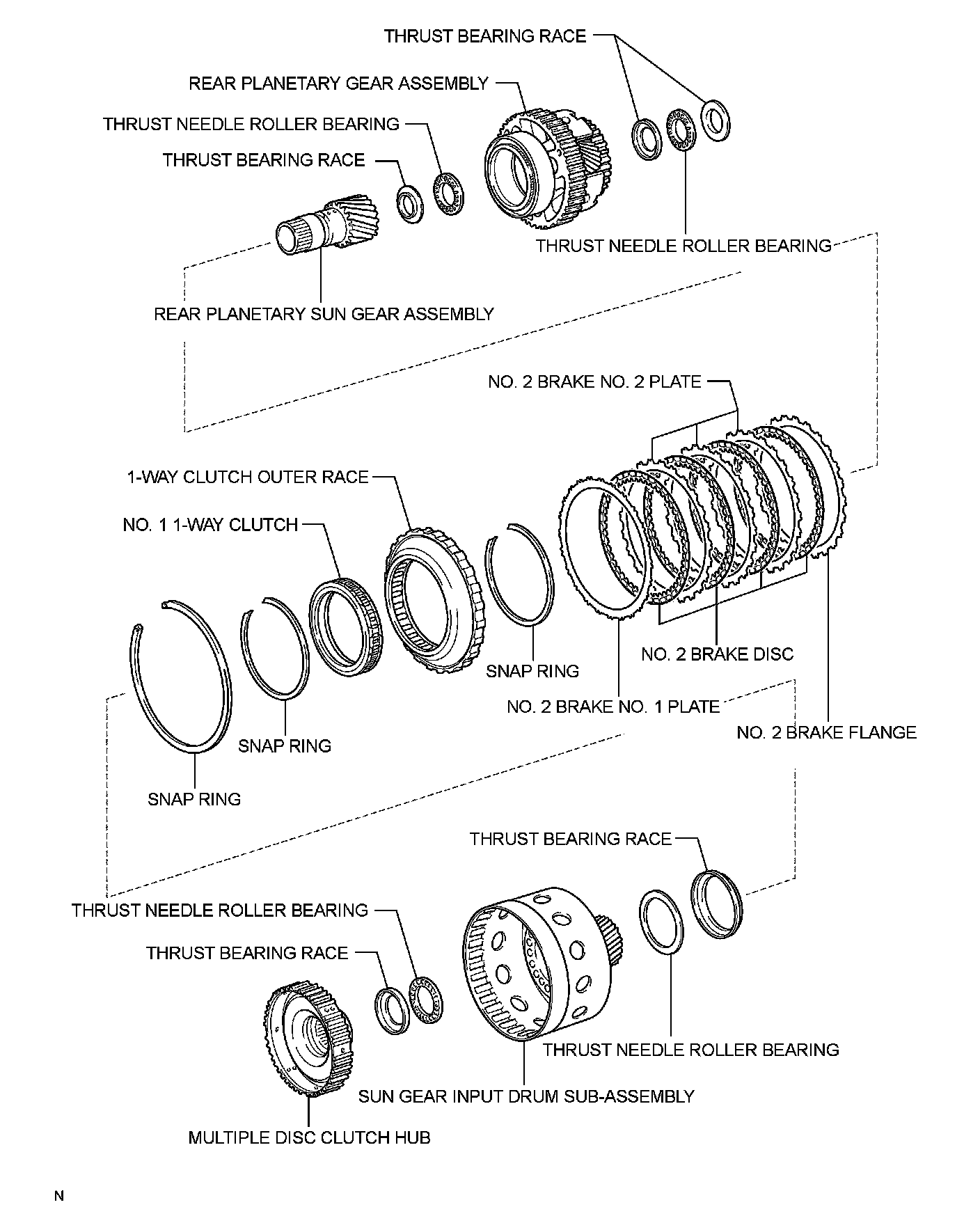

AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION UNIT: COMPONENTS

COMPONENTS

ILLUSTRATION
