P0A1D-187

L110F HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P0A1D-187: Hybrid Powertrain Control Module

DTC P0A1D-187 - Hybrid Powertrain Control Module

DESCRIPTION

The hybrid vehicle control ECU monitors its internal operation, it will set DTCs and perform fail-safe control when it detects the following malfunctions. If any of the following DTCs are output, replace the hybrid vehicle control ECU.






MONITOR DESCRIPTION

The hybrid vehicle control ECU performs diagnostic tests to verify proper operation of internal and external ECU systems. In one of these tests, the hybrid vehicle control ECU monitors specific RAM circuits of the hybrid vehicle control ECU. If the hybrid vehicle control ECU detects an error in the RAM circuits, it will conclude that there is an internal malfunction in the hybrid vehicle control ECU. The hybrid vehicle control ECU will illuminate the MIL and set a DTC.

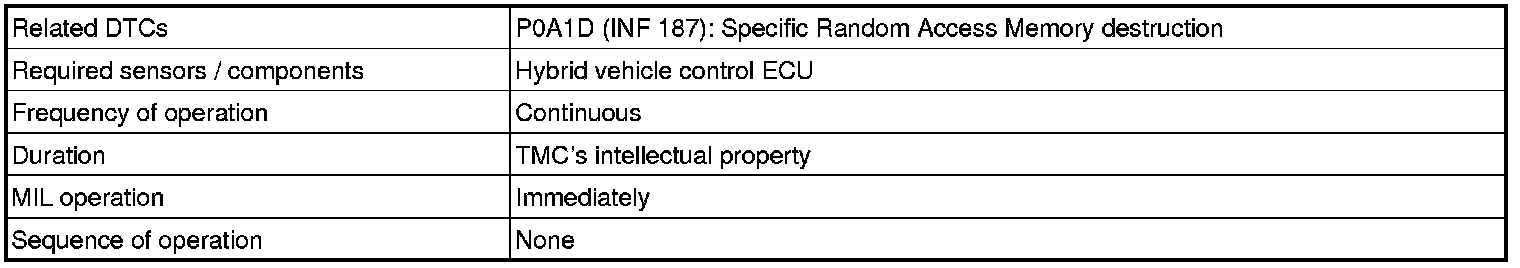

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





INSPECTION PROCEDURE

PROCEDURE

1. REPLACE HYBRID VEHICLE CONTROL ECU
(a) Replace the hybrid vehicle control ECU Components.
NEXT -- COMPLETED
