P0AF8

L110F HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P0AF8-816: Hybrid Battery System Voltage

DTC P0AF8-816 - Hybrid Battery System Voltage

DESCRIPTION





MONITOR DESCRIPTION

If the battery smart unit detects a voltage of the HV battery abnormal lowering, The Hybrid vehicle control ECU will turn on the MIL and set a DTC.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT (HV)
(a) Connect the intelligent tester or Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Select the following menu items:
(1) Intelligent tester - Select: DIAGNOSIS / OBD/MOBD / HV ECU / DTC INFO / CURRENT CODES.
(2) Techstream - Select: Powertrain / Hybrid Control / Trouble Codes.
(d) Check if DTCs are output.

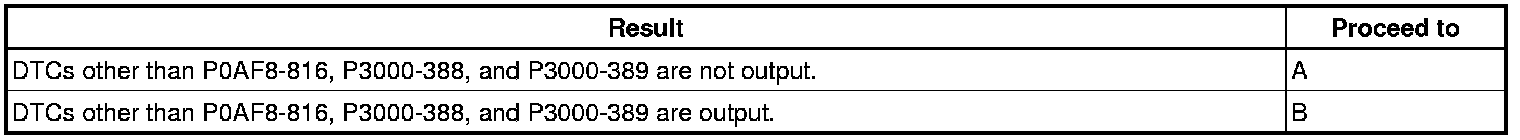

Result:






B -- GO TO DTC CHART
A -- Continue to next step.
2. CHECK ENGINE START
(a) Turn the power switch on (READY).
(b) Check if the engine starts.
HINT: Depressing the accelerator pedal with the shift lever in the P position will cause the engine to start.

Result:






B -- REPLACE HV BATTERY ASSEMBLY
A -- LEAVE VEHICLE IN P POSITION, AND CHARGE HV BATTERY IN IDLE STATUS UNTIL IDLING STOPS
