Installation

AUDIO / VIDEO: REAR SEAT ENTERTAINMENT ECU: INSTALLATION

HINT:
A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

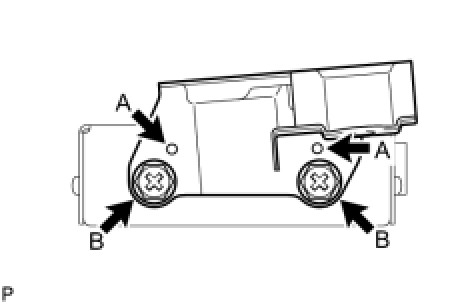

1. INSTALL NO. 2 MULTI-DISPLAY CONTROLLER BRACKET






(a) Set the aligning protrusions of the bracket, labeled A, into the multi-display selector holes.
(b) Install the bracket with the 2 bolts labeled B.

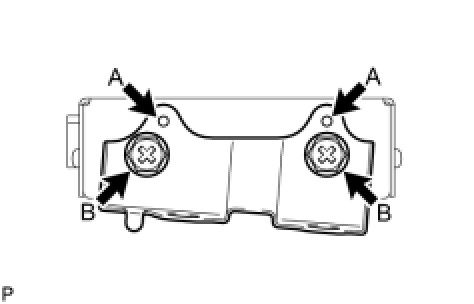

2. INSTALL NO. 3 MULTI-DISPLAY CONTROLLER BRACKET






(a) Set the aligning protrusions of the bracket, labeled A, into the multi-display selector holes.
(b) Install the bracket with the 2 bolts labeled B.

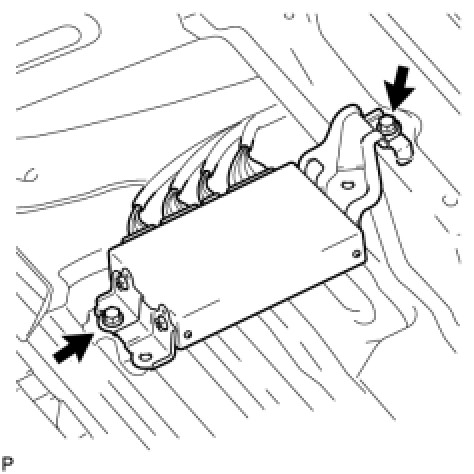

3. INSTALL MULTI-DISPLAY SELECTOR WITH BRACKET






(a) Install the multi-display selector with the 2 bolts.
(b) Connect the connectors.
4. INSTALL FRONT FLOOR CARPET ASSEMBLY
(a) Install the carpet that was pulled back to remove the selector. For further details, refer to the installation procedure Installation.
5. INSTALL FRONT DOOR SCUFF PLATE RH Installation

6. INSTALL COWL SIDE TRIM BOARD RH Installation

7. INSTALL INSTRUMENT SIDE PANEL RH Installation

8. INSTALL FRONT SEAT ASSEMBLY RH
(a) Install the front seat assembly RH Installation.
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

10. INSTALL ENGINE ROOM SIDE COVER LH Installation

11. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
