Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION


1. INSTALL CRUISE CONTROL MAIN SWITCH

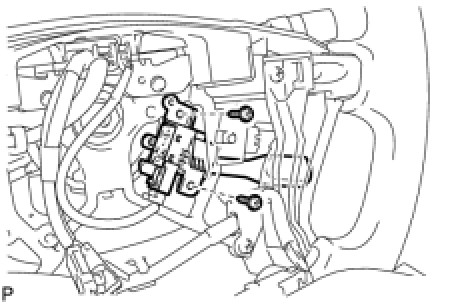

(a) Install the switch with the 2 screws.

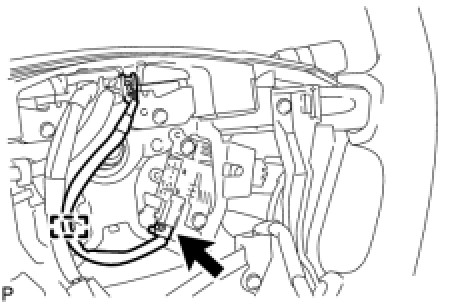

(b) Connect the connector and clamp.
2. INSTALL STEERING PAD Installation

3. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

4. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

6. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
7. INSTALL ENGINE ROOM SIDE COVER LH Installation
