Installation

HEATING / AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSTALLATION

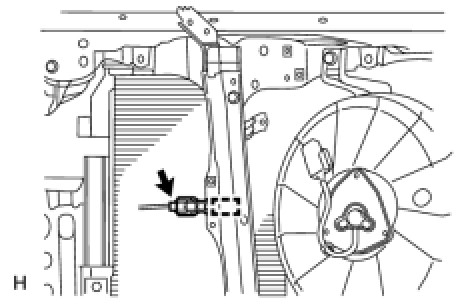

1. INSTALL AMBIENT TEMPERATURE SENSOR
(a) Attach the clamp to install the sensor.
(b) Connect the connector.
2. INSTALL FRONT BUMPER COVER
(a) Install the front bumper cover Installation.
