Installation

HEATING / AIR CONDITIONING: SMOG VENTILATION SENSOR: INSTALLATION

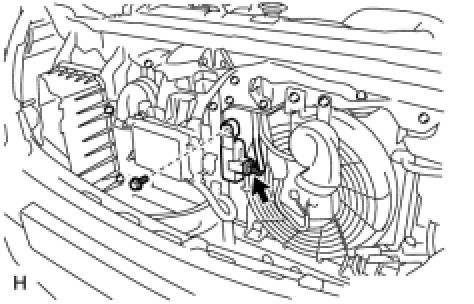

1. INSTALL SMOG VENTILATION SENSOR
(a) Install the sensor with the bolt.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
(b) Connect the connector.
2. INSTALL RADIATOR GRILLE ASSEMBLY Installation

3. INSTALL UPPER RADIATOR SUPPORT SEAL Installation

4. INSTALL ENGINE ROOM SIDE COVER LH Installation

5. INSTALL ENGINE ROOM SIDE COVER RH Installation
