Installation

HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL: INSTALLATION

1. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET
(a) Connect the connectors.

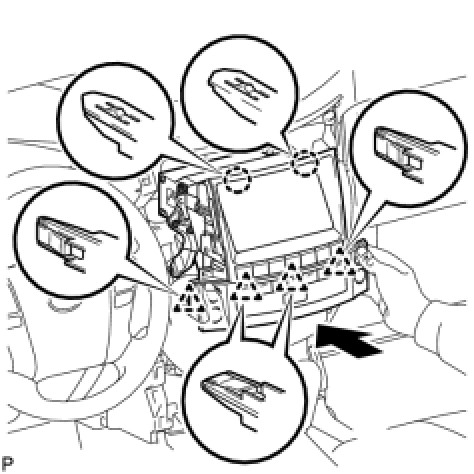

(b) Insert the display and attach the 4 clips on its backside.
NOTICE:
When inserting the display, do not press the knobs on it.





(c) Install the display with the 2 screws and 2 bolts.
Torque: 12 Nm (122 kgf-cm, 8 ft-lbf)
2. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

3. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

4. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation

5. INSTALL NO. 1 SWITCH HOLE BASE Installation

6. INSTALL INSTRUMENT SIDE PANEL LH Installation

7. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH Installation

8. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

10. INSTALL ENGINE ROOM SIDE COVER LH Installation
