Removal

HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL: REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Removal

4. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH Removal

5. REMOVE INSTRUMENT SIDE PANEL LH Removal

6. REMOVE NO. 1 SWITCH HOLE BASE Removal

7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal

8. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Removal

9. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY Removal

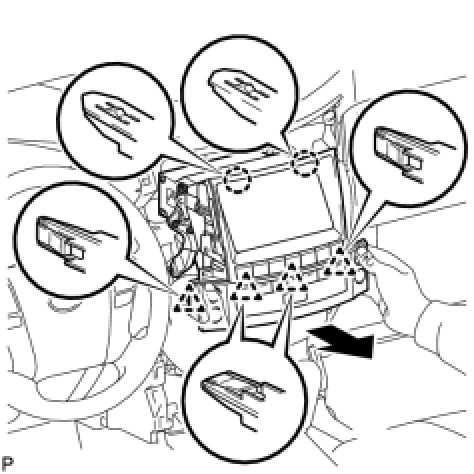

10. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET






(a) Remove the 2 screws and 2 bolts.






(b) Pull the radio receiver to detach the 4 clips on the backside of the display.
(c) Disconnect the connectors and remove the display.
