Front Wheel Alignment

WHEEL ALIGNMENT STANDARD

a. FRONT WHEEL ALIGNMENT (USA, Canada)

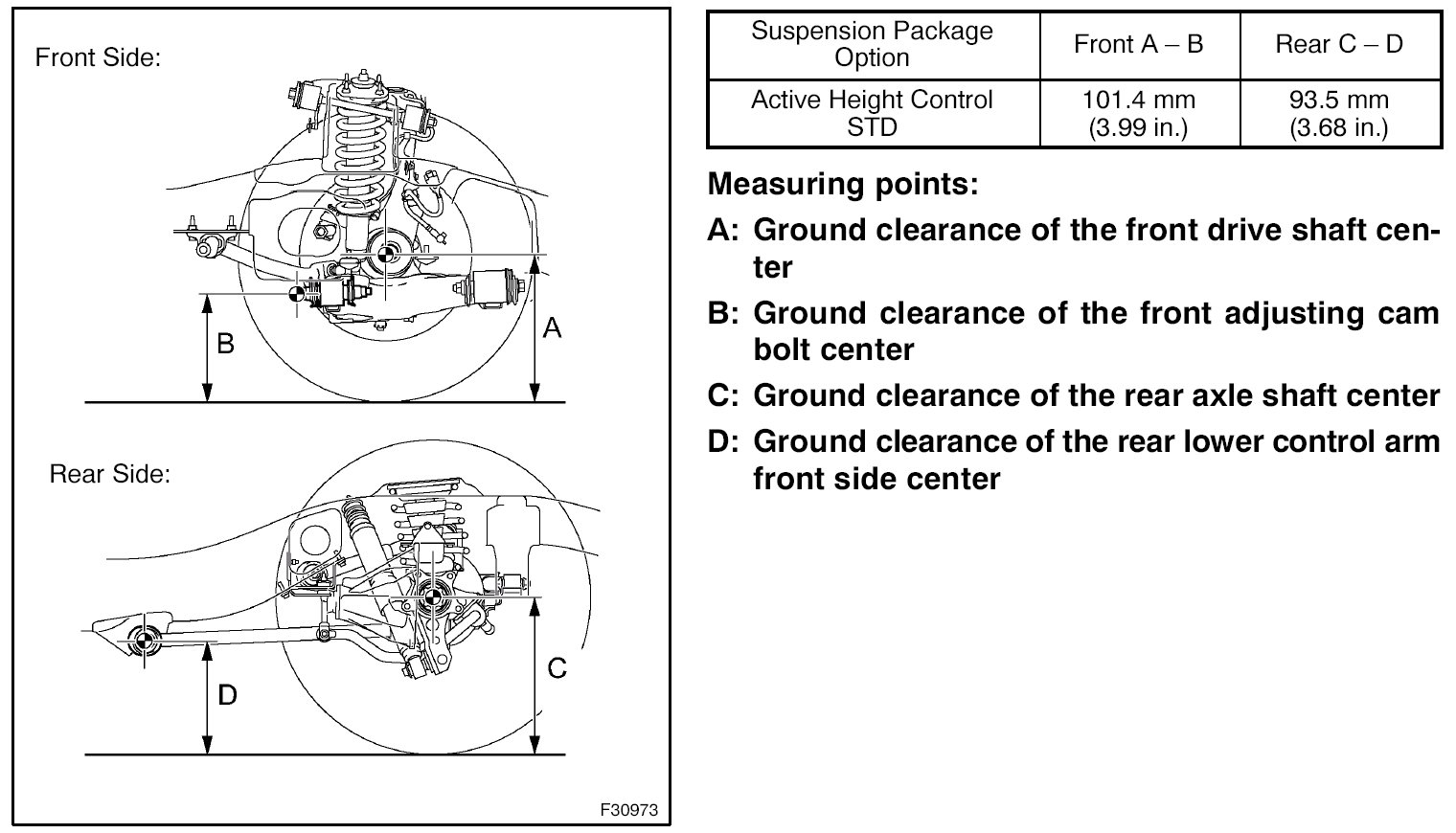

1. Standard vehicle height (unloaded vehicle):

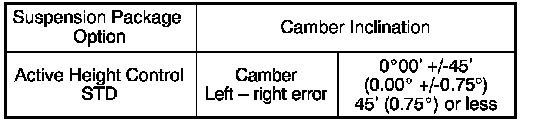

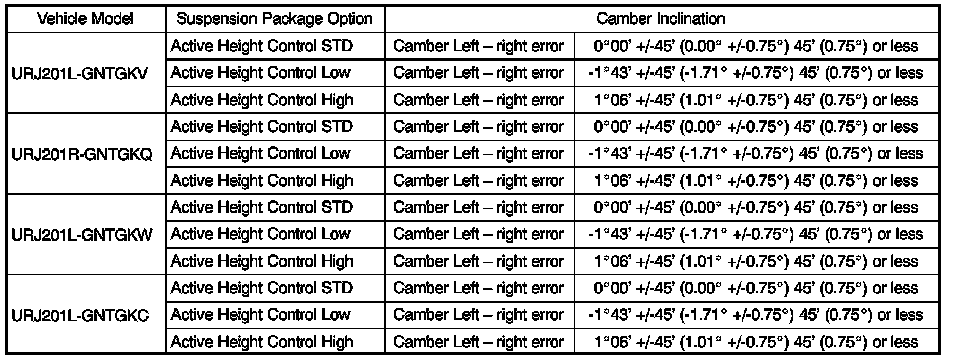

2. Standard Camber Inclination (Unloaded):

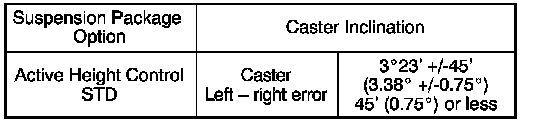

3. Standard Caster Inclination (Unloaded):

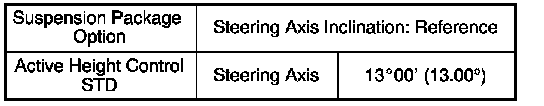

4. Standard Steering Axis Inclination (Unloaded Vehicle):







HINT: The steering axis inclination is a reference value.

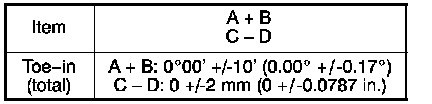

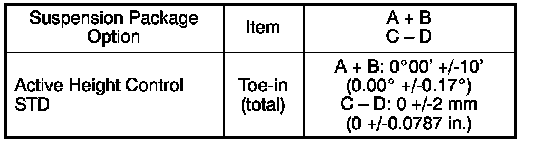

5. Standard toe in (unloaded vehicle):

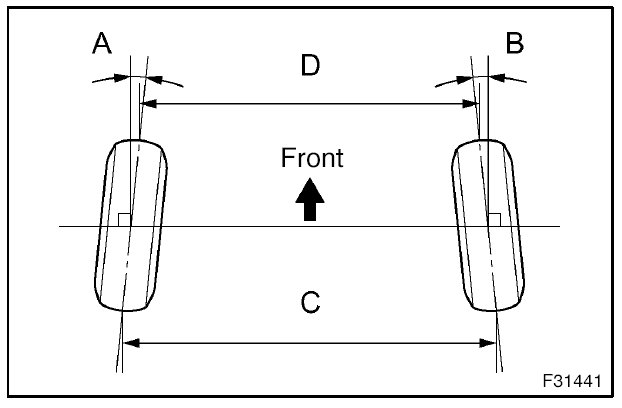

HINT: The toe-in can be measured using either A + B or C - D.

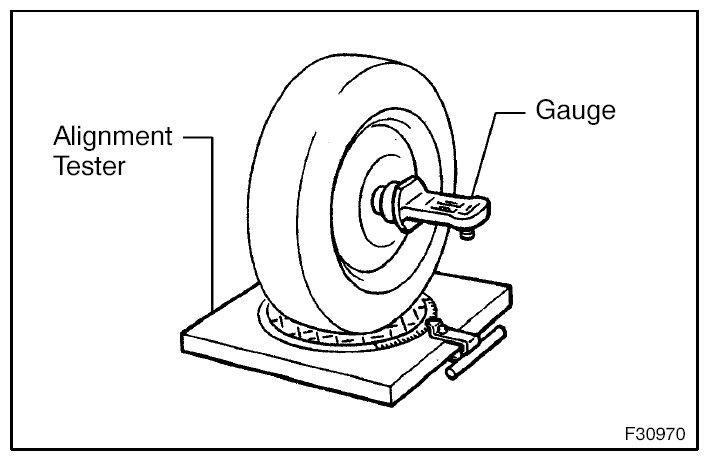

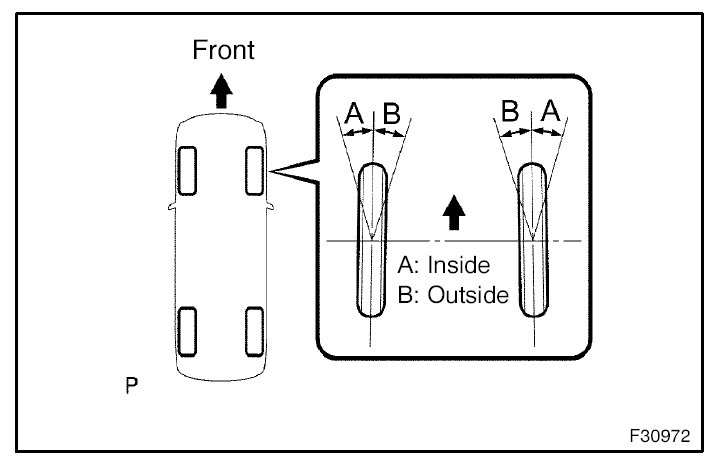

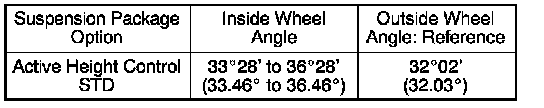

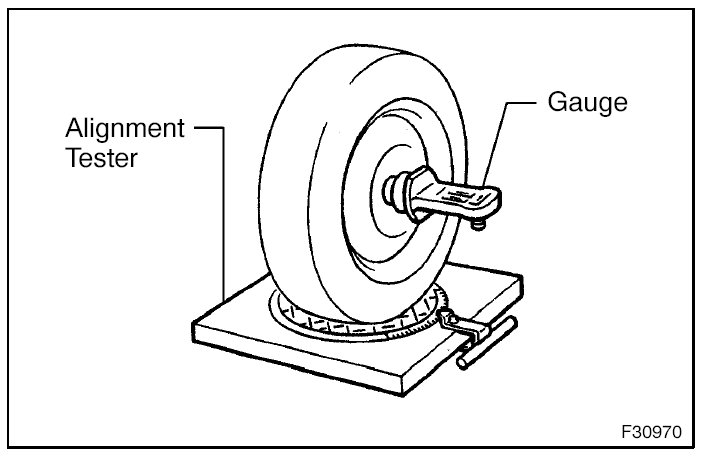

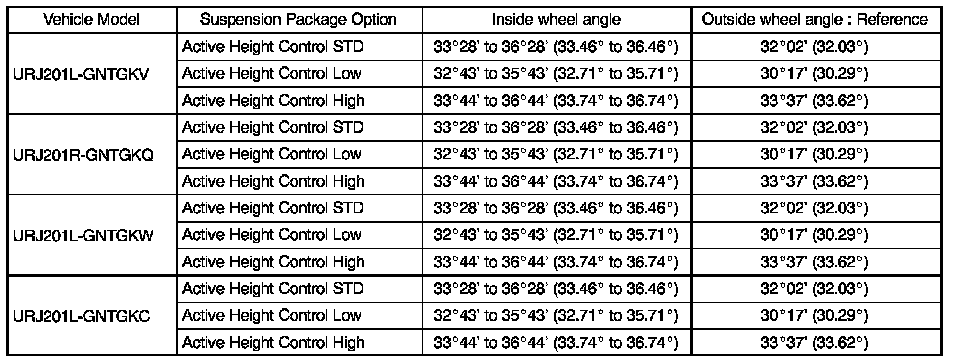

6. Standard wheel turning angle (Unloaded vehicle):










b. FRONT WHEEL ALIGNMENT (Except USA, Canada)

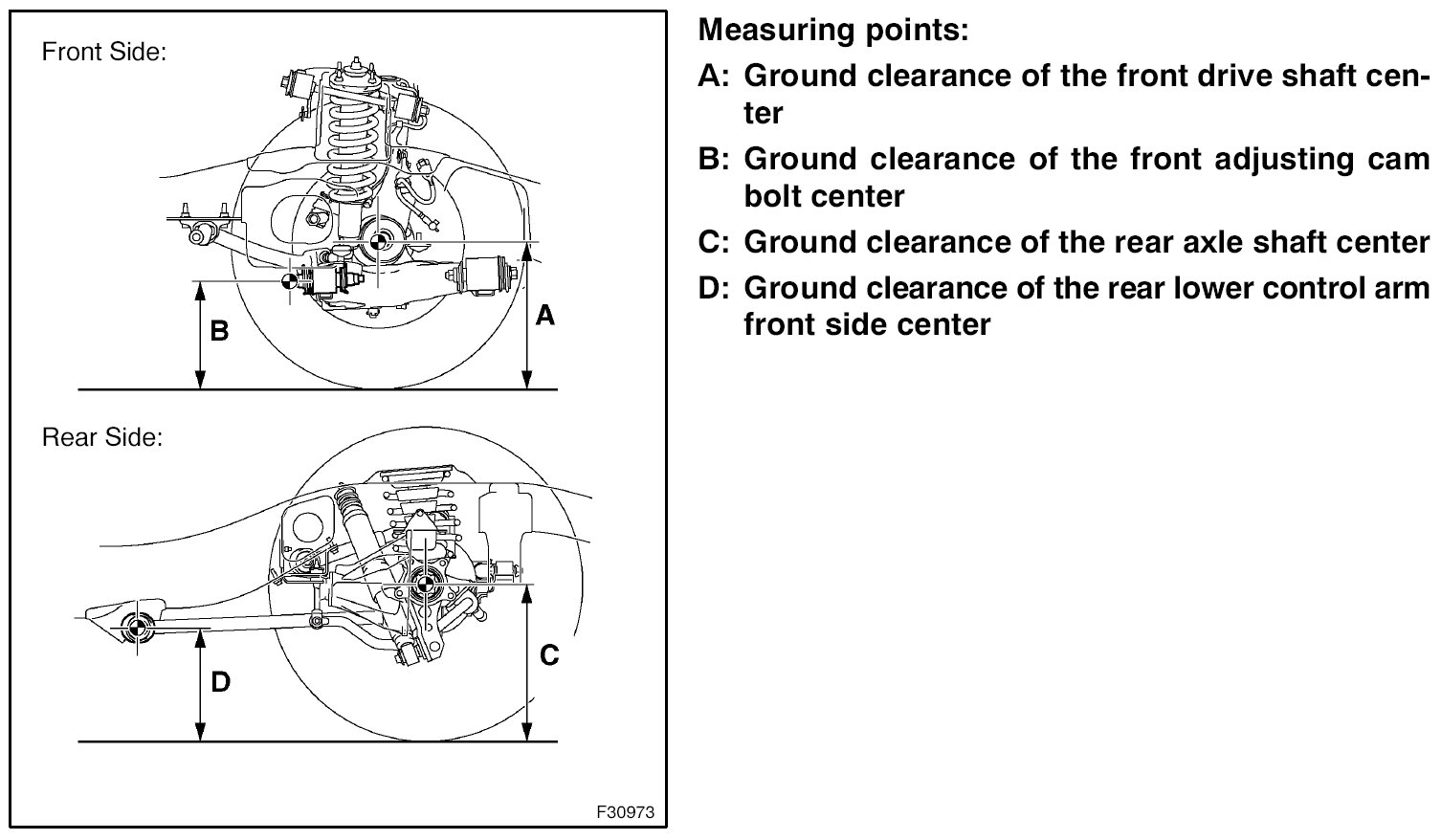

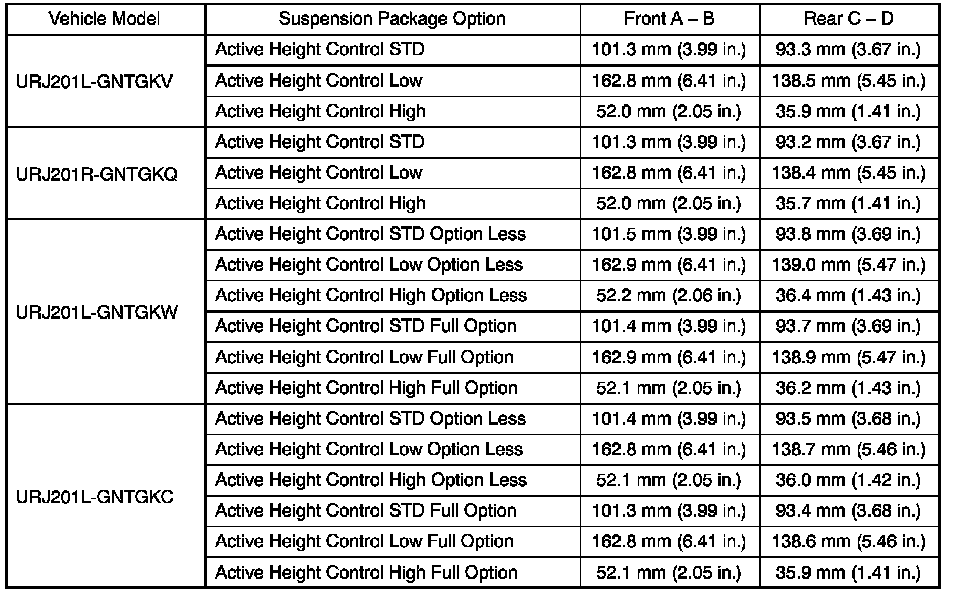

1. Standard vehicle height (unloaded vehicle):










2. Standard camber inclination (unloaded):

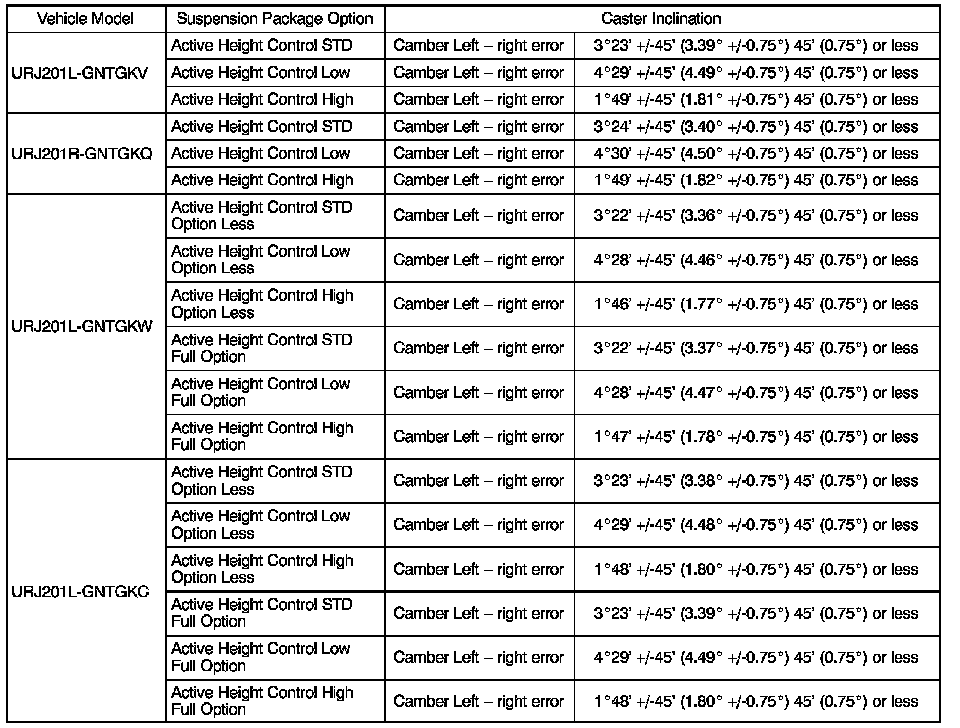

3. Standard caster inclination (unloaded):

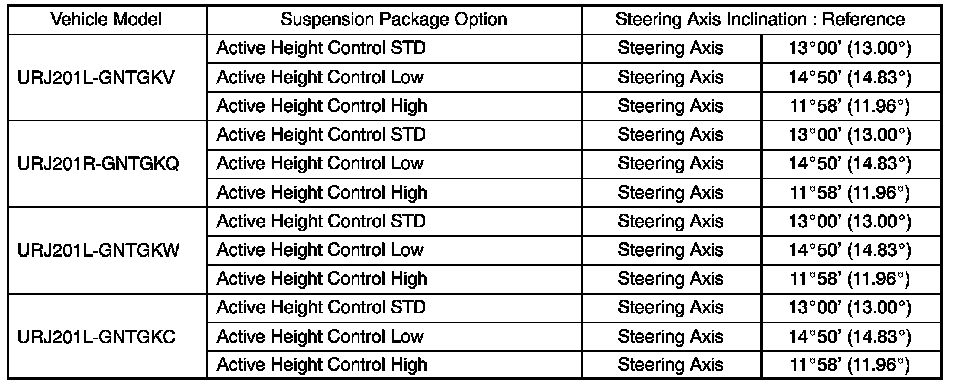

4. Standard steering axis inclination (unloaded vehicle):







HINT: The steering axis inclination is a reference value.

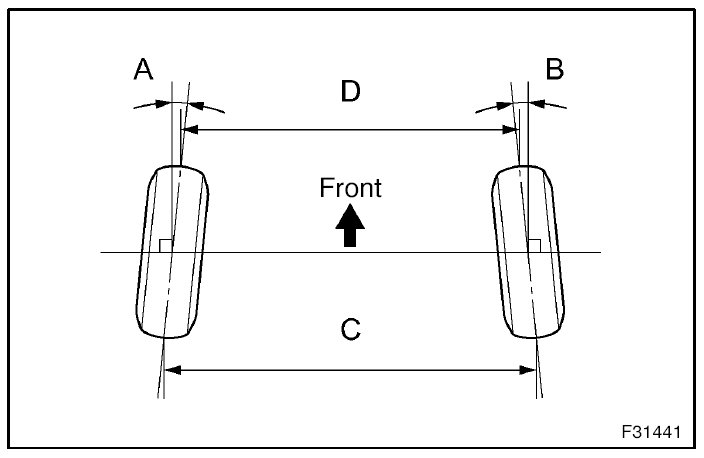

5. Standard toe-in (unloaded vehicle):

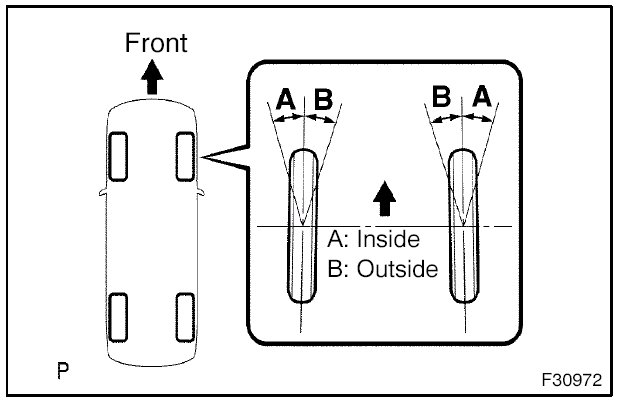

6. Standard wheel turning angle (unloaded vehicle):
