Installation

3UR-FE EMISSION CONTROL: AIR INJECTION DRIVER: INSTALLATION

1. INSTALL AIR INJECTION CONTROL DRIVER ASSEMBLY

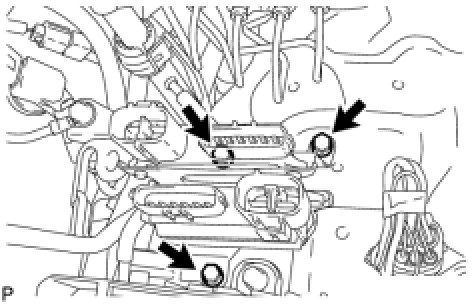

(a) Install the air injection control driver with the 3 bolts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)






(b) Connect the 4 air injection control driver connectors.

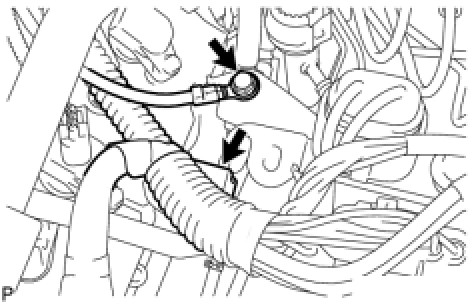

(c) Connect the wire harness clamp.
(d) Connect the ground wire with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. INSTALL ENGINE ROOM SIDE COVER LH Installation
