Installation

CRUISE CONTROL: DISTANCE CONTROL ECU: INSTALLATION

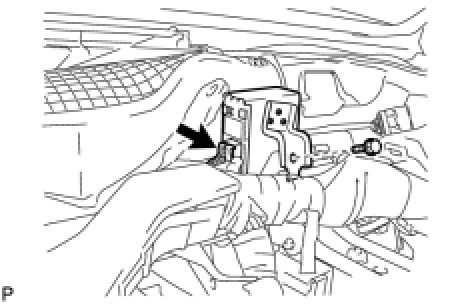

1. INSTALL DISTANCE CONTROL ECU ASSEMBLY






(a) Install the ECU with the bolt.
NOTICE:
Do not use an ECU which has been dropped or subjected to any strong shocks.

(b) Connect the ECU connector.
2. INSTALL INSTRUMENT PANEL SAFETY PAD
(a) Install the instrument panel safety pad Installation.
3. INITIALIZE DISTANCE CONTROL ECU ASSEMBLY
(a) Initialize the distance control ECU Testing and Inspection.
