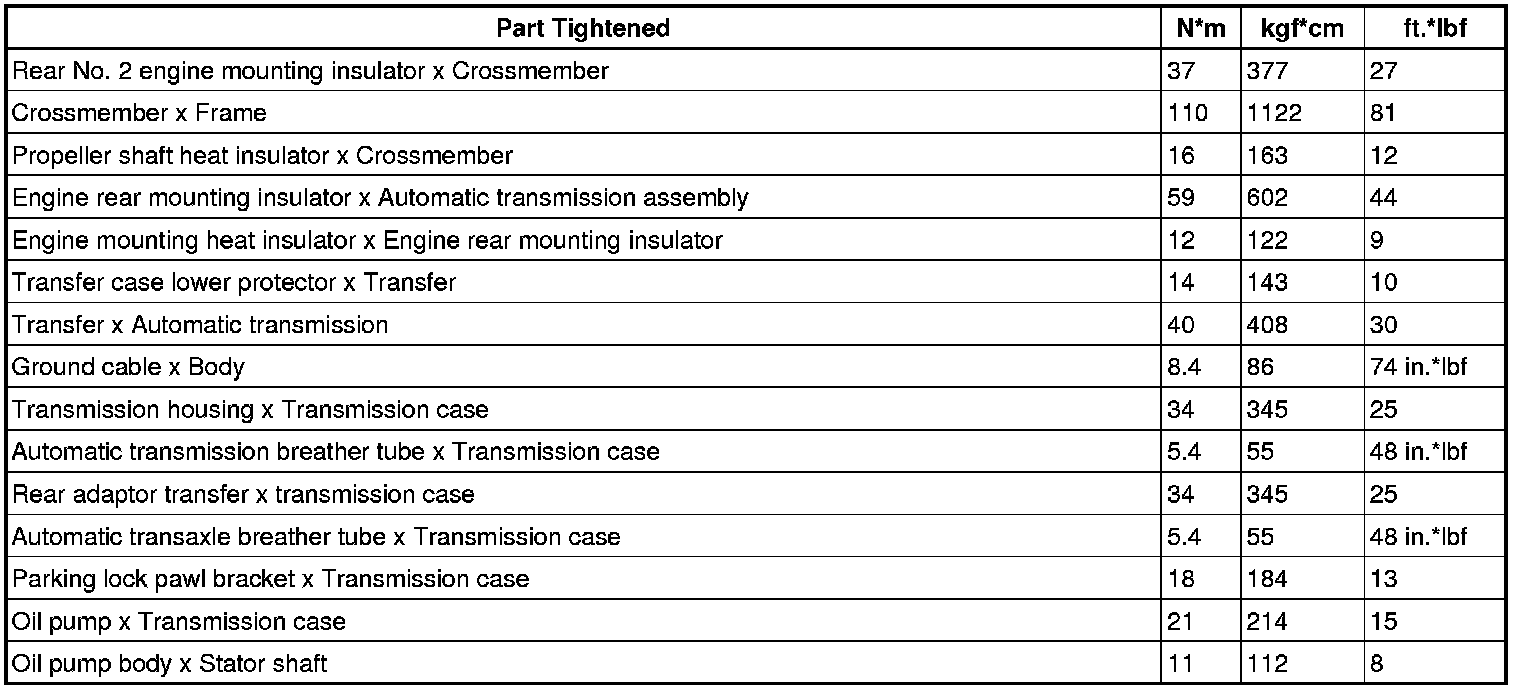

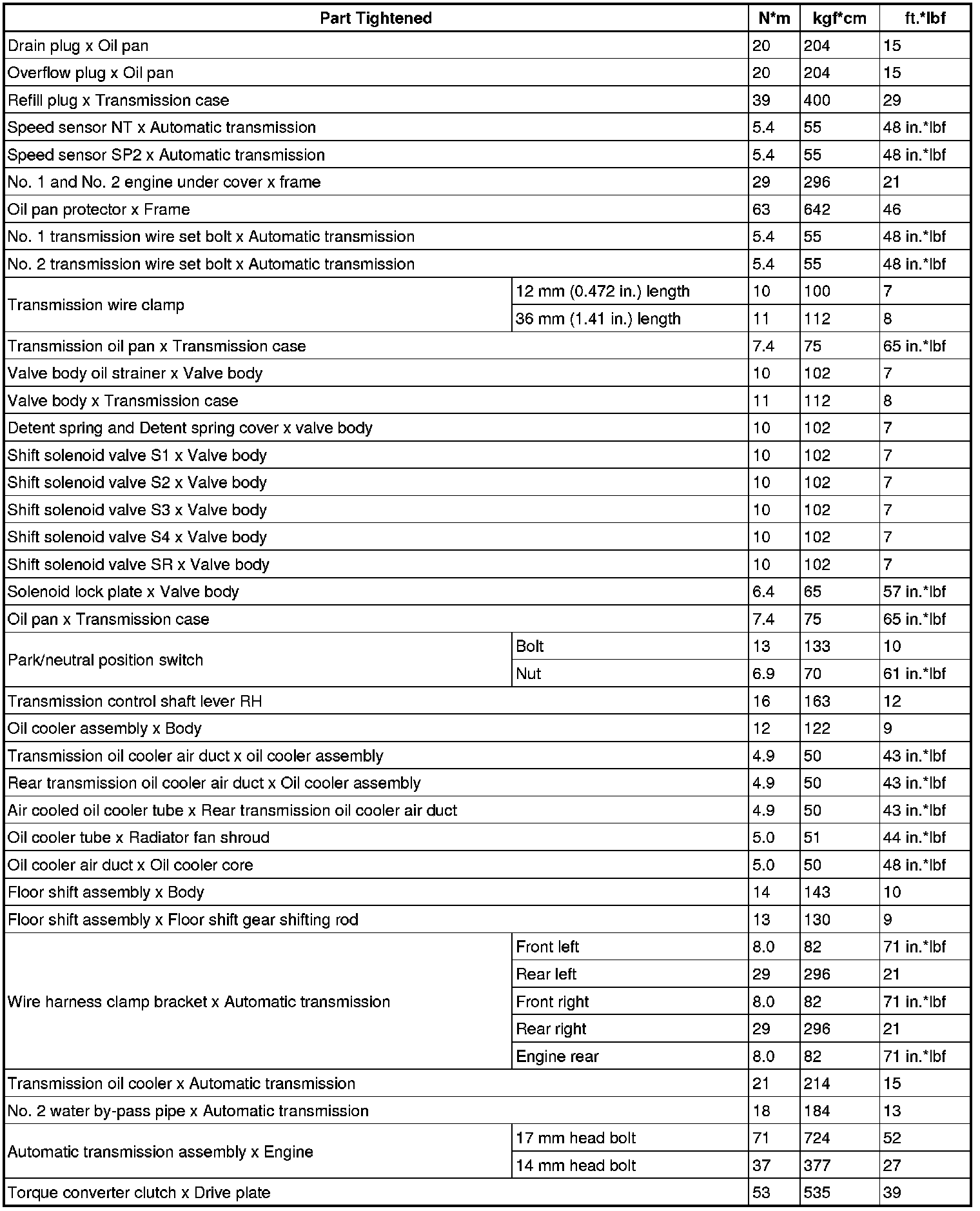

Torque Specifications

SPECIFICATIONS: AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS









DRIVE PLATE

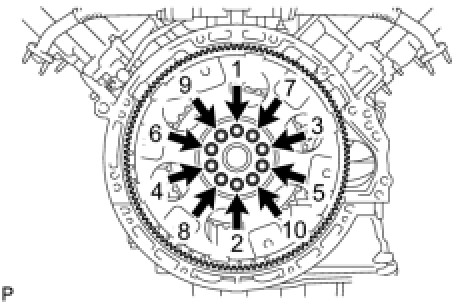

Install and uniformly tighten 10 new bolts in the sequence shown in the illustration.
Torque 30 Nm (301 kgf-cm, 22 ft-lbf)
