Oil Pan, Engine

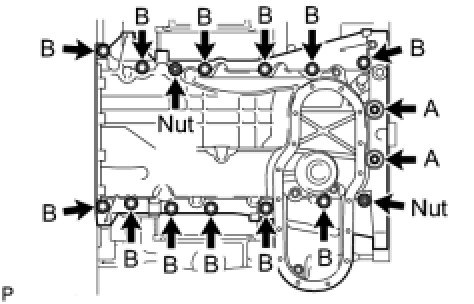

NO. 1 OIL PAN





Install the oil pan with the 14 bolts and 2 nuts.
For bolt A - Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
For bolt B - Torque 35 Nm (357 kgf-cm, 26 ft-lbf)
For nut - Torque 35 Nm (357 kgf-cm, 26 ft-lbf)

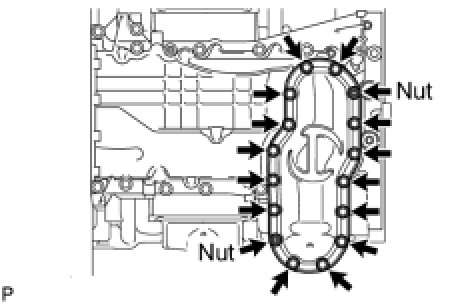

NO. 2 OIL PAN





Install the oil pan with the 14 bolts and 2 nuts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
