Steering Column Control Module: Locations

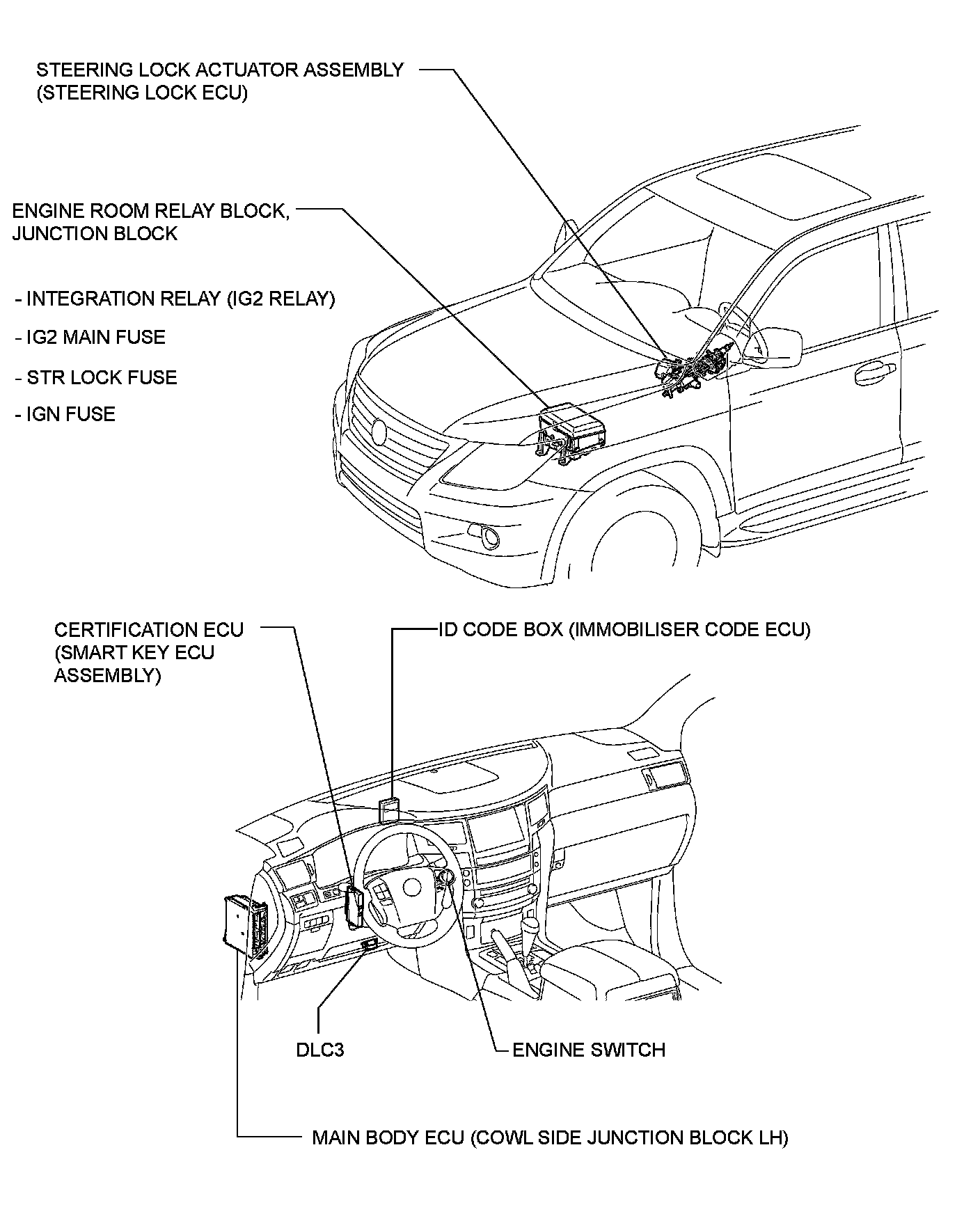

STEERING COLUMN: STEERING LOCK SYSTEM: PARTS LOCATION






Instrument Panel:
