Installation

WINDOW / GLASS: POWER WINDOW MASTER SWITCH: INSTALLATION

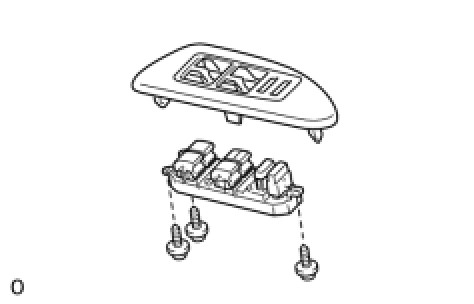

1. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY






(a) Install the master switch with the 3 screws.
2. INSTALL FRONT UPPER ARMREST BASE PANEL LH
(a) Connect the connector.

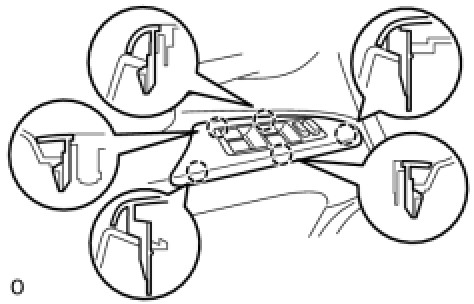

(b) Attach the 5 claws to install the armrest base panel.
